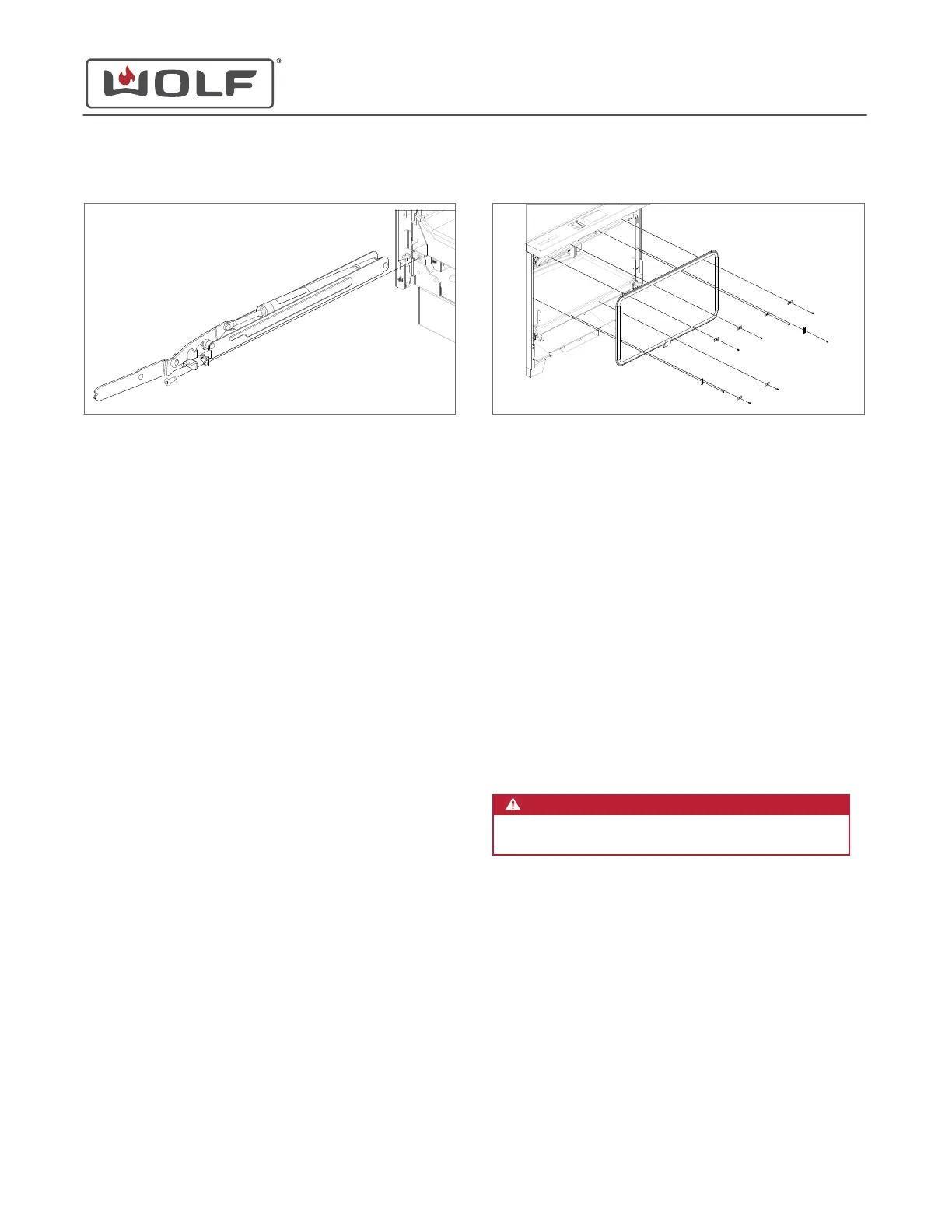

Wolf 30 - Cavity Component Removal and Installation; GASKET REMOVAL; GASKET INSTALLATION; DOOR SWITCH ASSEMBLY REMOVAL

2 Pull the hinge from the unit.
HINGE INSTALLATION
After installing the hinge, install:
1
Cover collar
2 Skirt
3 Oven door
Install the Hinge
1 Place the hinge into the unit.
2 Use a T-15 Torx bit to install the hinge screw.
GASKET REMOVAL
To remove the gasket, first remove:
1
Oven door
2 Skirt
3 Cover collar
Remove the Gasket
1 Use a T-15 Torx bit to loosen or remove the gasket clip
mounting screws.
2 Remove the gasket from the gasket clips.
3
Remove the gasket from the unit.
GASKET INSTALLATION
After installing the gasket, install:
1
Cover collar
2 Skirt
3 Oven door
Install the Gasket
1 Use a T-15 Torx bit to loosely install the gasket clips.
2 Insert the gasket beneath the gasket clips.
3 Use a T-15 Torx bit to tighten the screws of the gasket clips.
DOOR SWITCH ASSEMBLY REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the door switch assembly, first remove:
1
Oven door
2 Skirt
3 Cover collar
Remove the Door Switch Assembly
1 Use a T-20 Torx bit to remove the door bumper spacer
mounting screws.
2 Remove the door bumper spacer.
3 Push the door switch assembly backward through the
bumper spacer bracket.
30" and 36" Induction Range
Cavity Component Removal and Installation
REMOVE THE HINGE (continued)
service.subzero.com
829191 REVA
58
