Rev AB Installation of Printhead and Ink Cartridge 3-15
Wolke m600 touch Operator Manual
EQUIPMENT DAMAGE. Select an installation position to avoid
vibrations on the printhead, electrostatic charge and soiling caused
by lacquer, adhesive or other similar products used in the
production process.
This also avoids overheating of the printhead, the photoelectric cell
and the cartridge as a result of being installed too close to sources of
process heat.
Photoelectric Cell
The printheads have been equipped with four M3 threads to fit the
photoelectric cell (see “Technical Drawings” on page 9-1).

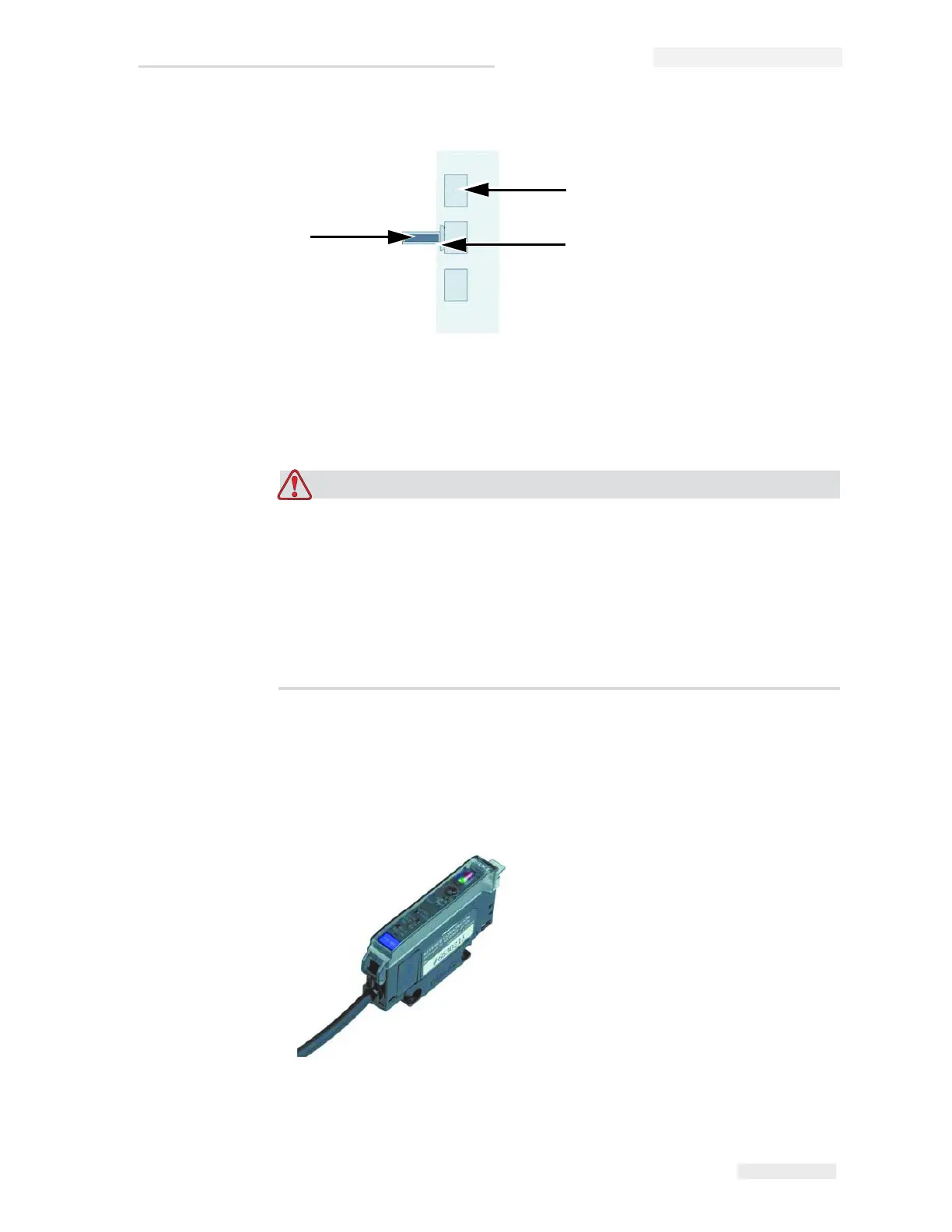

Figure 3-27: Selection of a Installation Position
1. Product
2. Head plate
3. Printhead
1
2
3
Figure 3-28: Photoelectric Cell
