Wood-mizer LT70 User Manual

Remote Operation
Hydraulic Control Operation
1
1-9 ROdoc070822 Remote Operation
1.7 Hydraulic Control Operation
The hydraulic control levers become operational when the contacts at the bottom of the
carriage touch the power strip on the frame tube. The hydraulic control levers will only
work when the cutting head is close enough to the front end of the mill to touch the power
strip.
See Figure 1-7. Hydraulic units have twelve control levers to load, clamp, turn and level
logs.

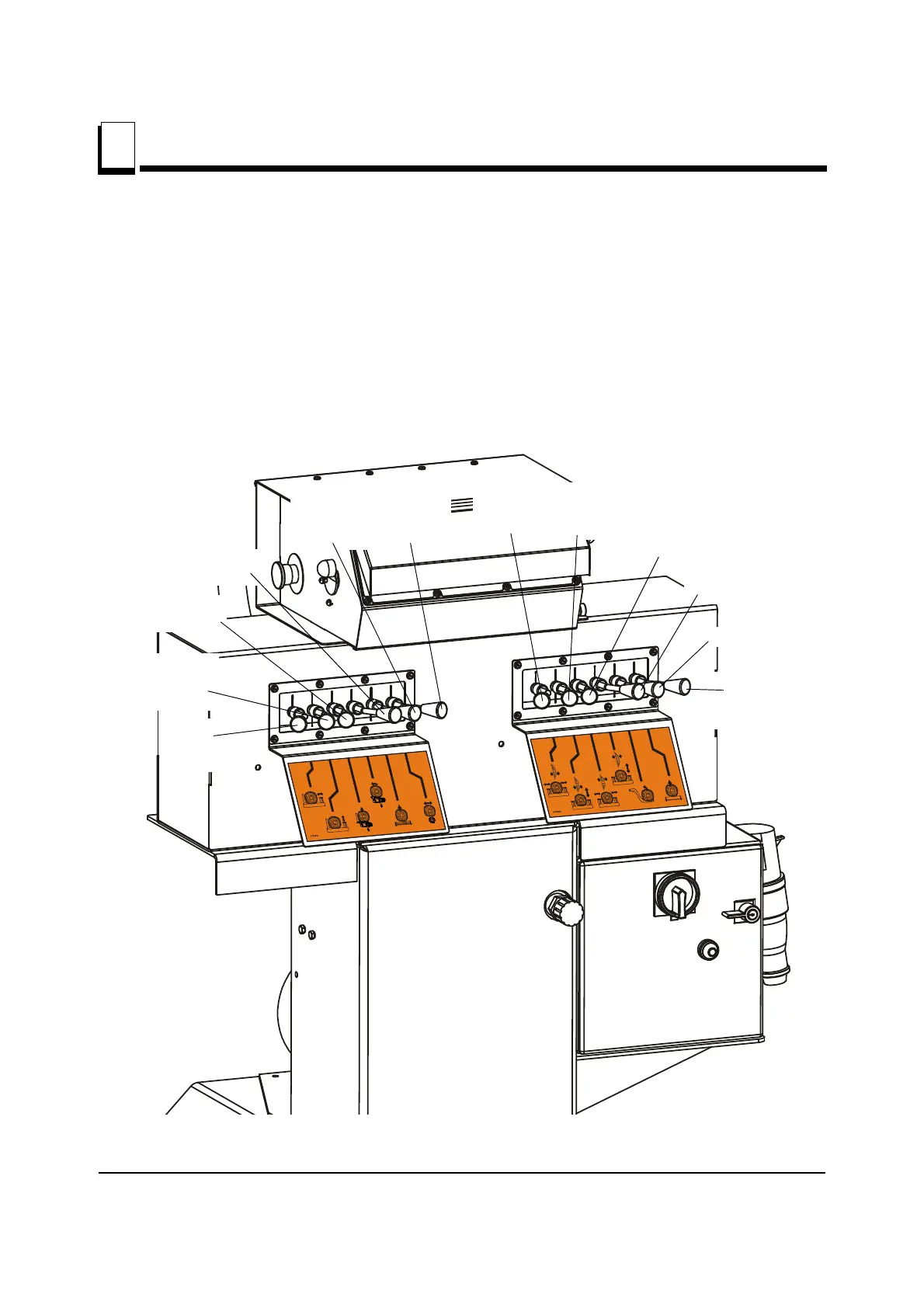

FIG. 1-7 OPERATOR CONTROL BOX
Clamp
In/Out
Main
Clamp
Up/Down
Main
Front Toe
Board
Up/Down
Rear Toe
Board
Up/Down
Loader
Log Turner
Up/Down
Log Turner
Drive
Rear Toe
Board
Drive
Clamp
Up/Down
Front
Clamp
In/Out
Front
Clamp
Up/Down
Rear
Clamp
In/Out
Rear
