Wood-mizer LT70 User Manual

Maintenance & Troubleshooting
Board Removal Bumper Adjustment
Maintenance & Troubleshooting ROdoc070822 2-5
2
2.4 Board Removal Bumper Adjustment

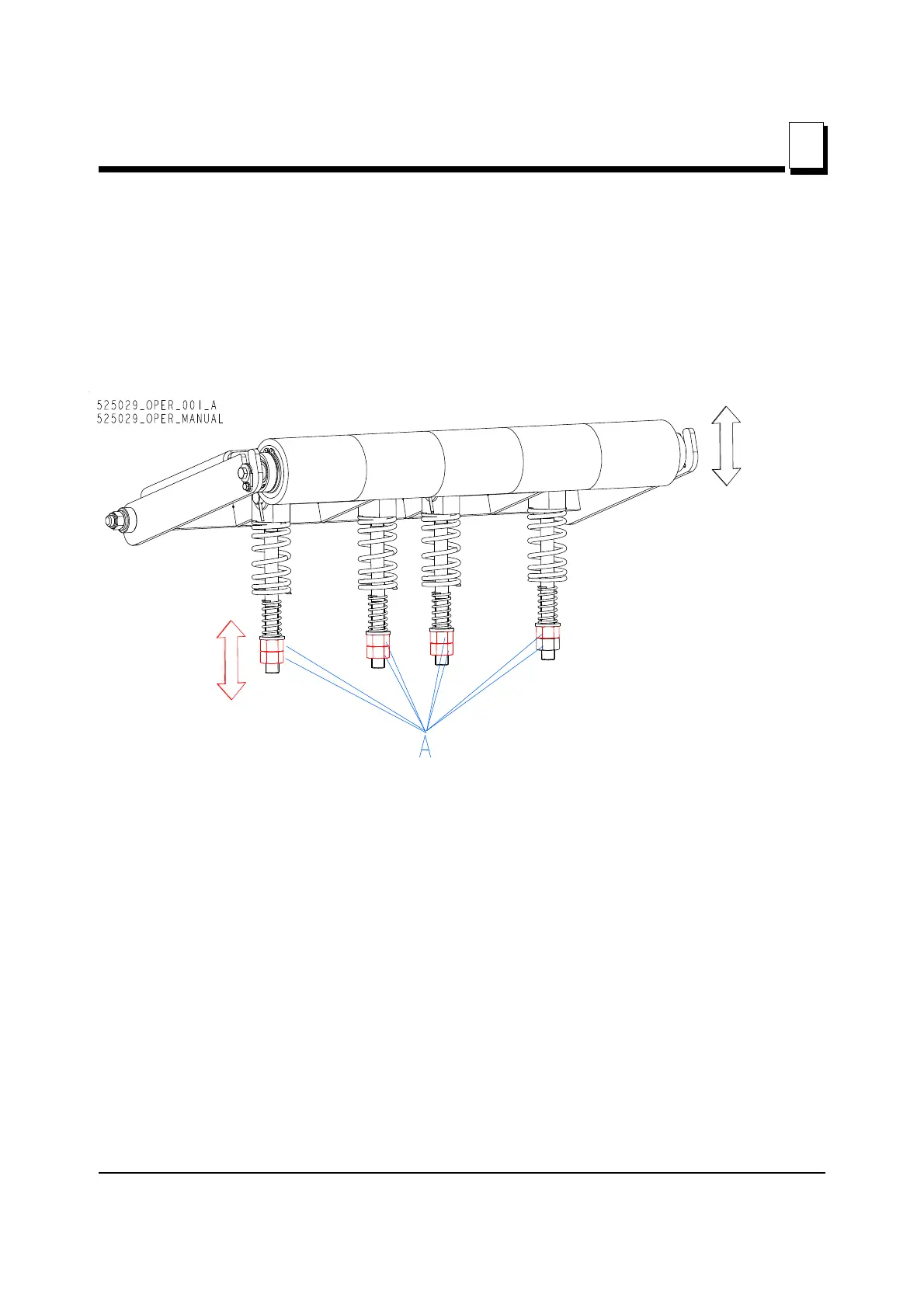

See Figure 2-4.
Lightly compress the lower springs using the nuts shown below (A). Make sure the
bumper roller is below the bed rail level.
FIG. 2-4
