REPLACEMENT PARTS
Remote Equipment for Installation on a Wall (Cutting Length of 6.5 m)
3
3-41 doc070822 REPLACEMENT PARTS
3.22 Remote Equipment for Installation on a Wall (Cutting Length of
6.5 m)

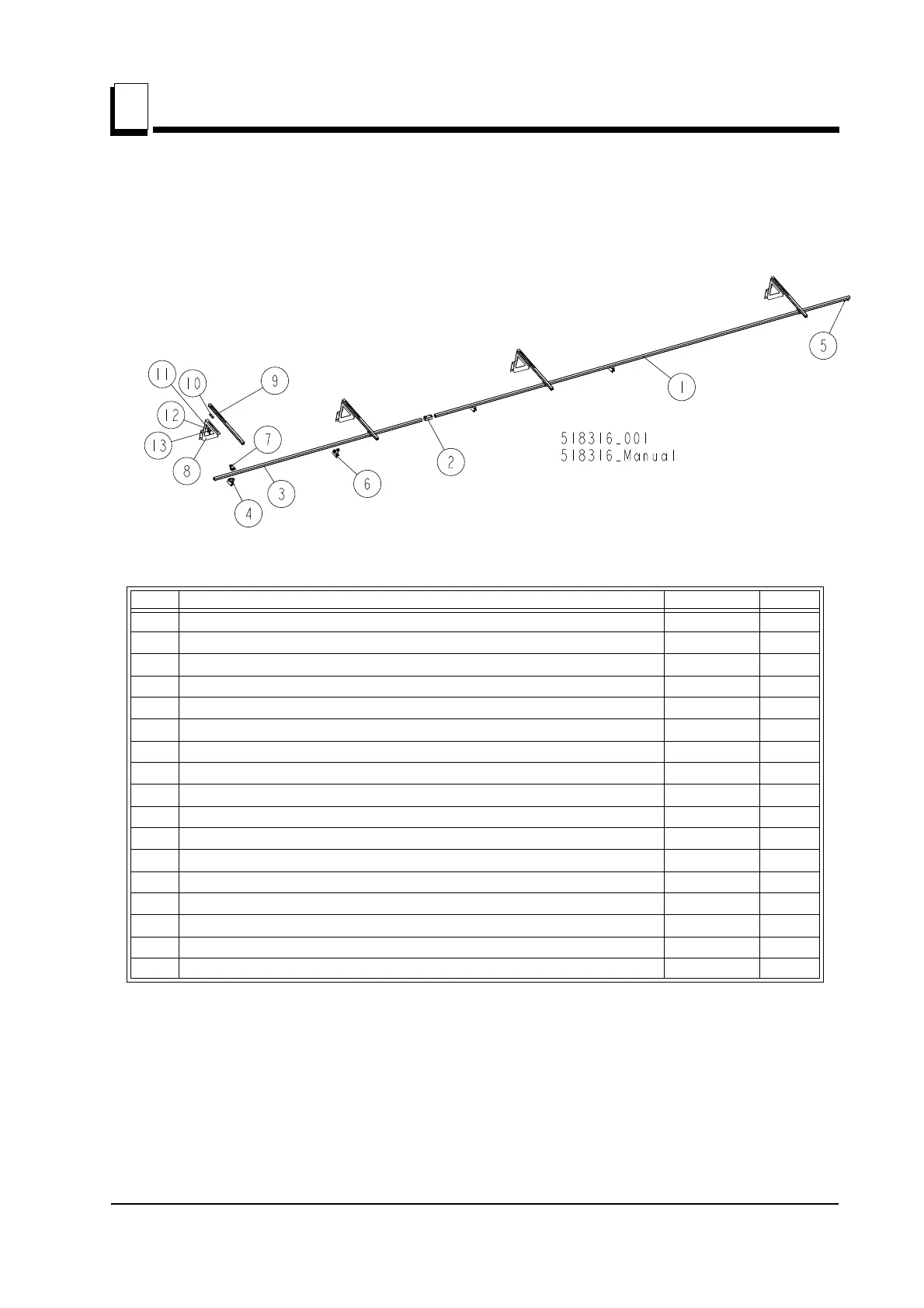

REF. DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY
REMOTE EQUIPMENT (CUTTING LENGTH OF 6.5 M) 518316 1
RAIL, COMPLETE GUIDE (CUTTING LENGTH OF 6.5M) 518315 1
1 RAIL, 6 M C-PROFILE 518332 1
2 COUPLER, TRACK 518705 1
3 RAIL, 3 M C-PROFILE 518313 1
4 CLAMP, FLAT CABLE - END 518701 1
5 TROLLEY, TOWING 518334 1
6 STOP, END 518700 1
7 TROLLEY, CABLE MOVING 518333 3
8 BRACKET, BOLT-ON 518702 4
RAIL BRACKET KIT FOR WALL MOUNTING 518724 4
9 BRACKET, GUIDE RAIL (FOR WALL MOUNTING) 518728-1 1
10 ARM, RAIL BRACKET 518709 1
11 PLATE, ARM CLAMPING 518885-1 1
12 WASHER, 8.4 FLAT ZINC F81054-1 2
13 WASHER, 8.2 SPLIT LOCK ZINC F81054-4 2
14 BOLT, M8x16-8.8-B HEX HEAD FULL THREAD ZINC F81002-20 2
