Wood-mizer LT70 User Manual

REPLACEMENT PARTS
Remote Control Box, 22-Section
REPLACEMENT PARTS doc070822 3-22
3

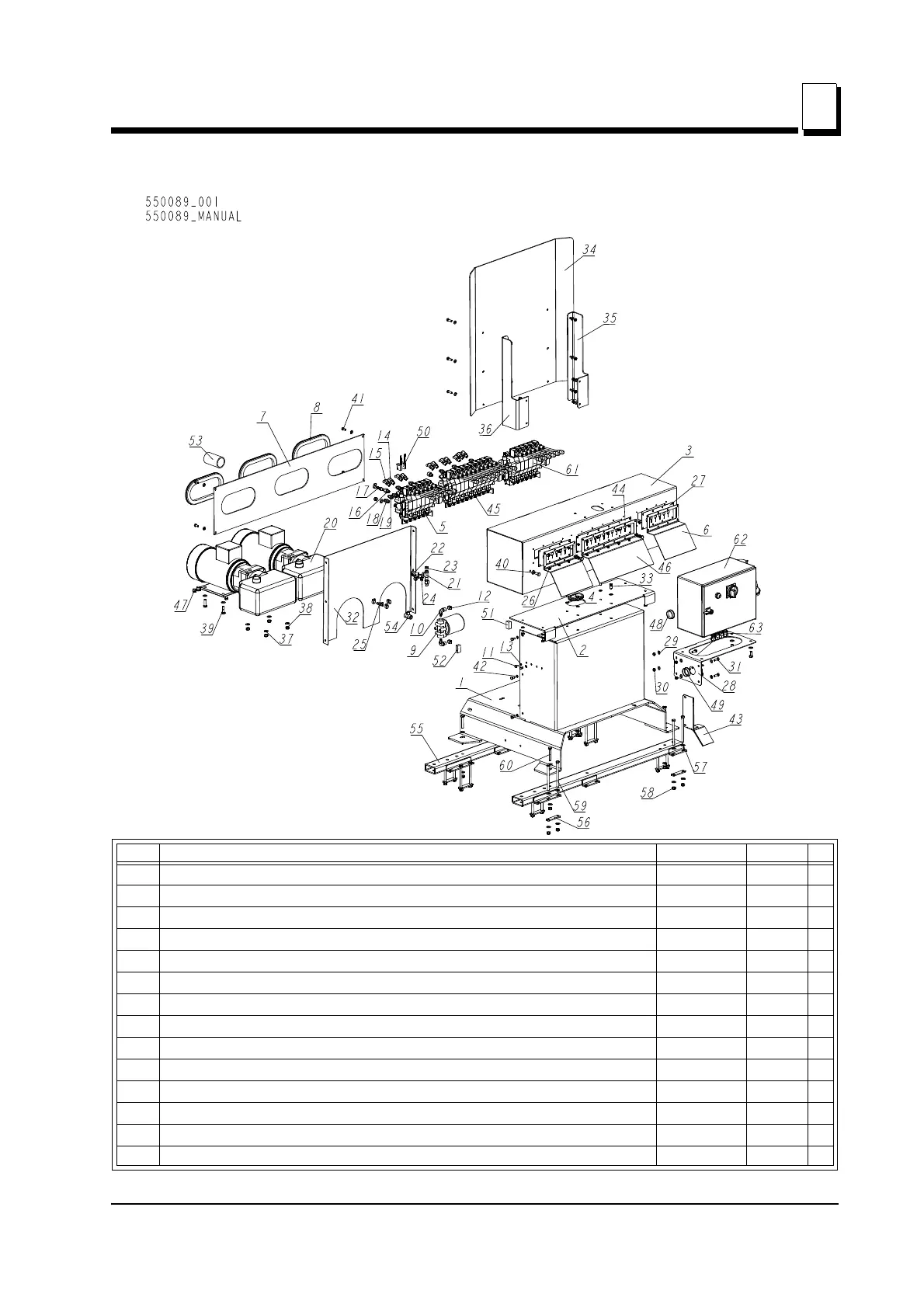

3.11 Remote Control Box, 22-Section
REF DESCRIPTION (u indicates parts available in assemblies only) PART # QTY
- BOX ASSEMBLY, 22-SECTION REMOTE CONTROL 550089 1
1 BASE, REMOTE CONTROL BOX WLDMT/PTD 539329-1 1
2 PLATE, REMOTE CONTROL BOX MOUNT 539333-1 1
3 HOUSING, HYDRAULIC VALVE 550087-1 1
4 GROMMET, RUBBER 087065 1
5 VALVE, 6-SPOOL FOR SERIES CONNECTION 501104 1
6 PLATE, RUBBER GUARD DOUBLE 015078 2
7 PANEL, HYDRAULIC VALVE HOUSING REAR 550090-1 1
8 GROMMET, 4 3/8 X 10 OVAL RUBBER 085759 3
9 MANIFOLD, W/FILTER P22683 1
10 FITTING, 1/2NPT-3/8 BARB ELBOW P12707 2
11 BOLT, 1/4-20X1/2 HH F05005-15 2
12 CLAMP, 11/16 WORM 061807 7
13 WASHER, Z6.1 SPLIT LOCK ZINC F81053-3 2
