Maintenance & Troubleshooting
Cable Chain And Support Tray Alignment
Maintenance & Troubleshooting ROdoc070822 2-3
2
2.3 Cable Chain And Support Tray Alignment
During each sawmill setup, check the alignment of the cable chain and the support tray:
1. The chain should travel in a straight line. Traveling at an angle will cause the chain to
prematurely wear and break. Check the alignment of the chain by measuring from the
sawmill frame tube to the center of the chain at the top and bottom. The measurements
should be the same (±1/8”).
See Figure 2-2.
Loosen the mounting bolts at the top or bottom of the chain to adjust the distance from the
sawmill frame tube.

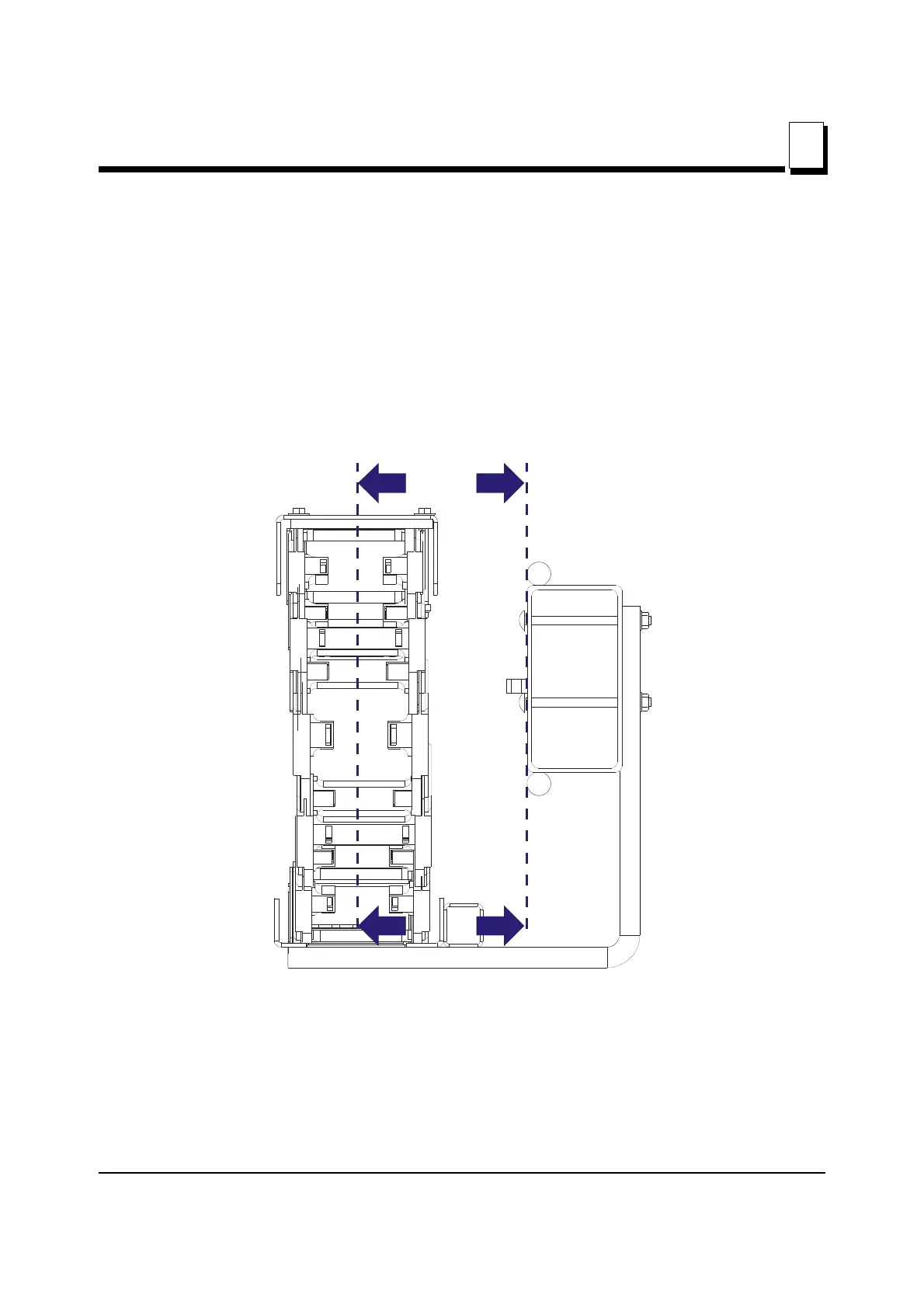

FIG. 2-2
A
B
A = B (±1/8")
3H0507B
Front End View of
Remote Chain
Front end view of
remote chain
To Next Page
