Wood-mizer LT70 User Manual

REPLACEMENT PARTS
Hydraulic Control Box, 12-Section Remote Super
3
3-13 doc070822 REPLACEMENT PARTS

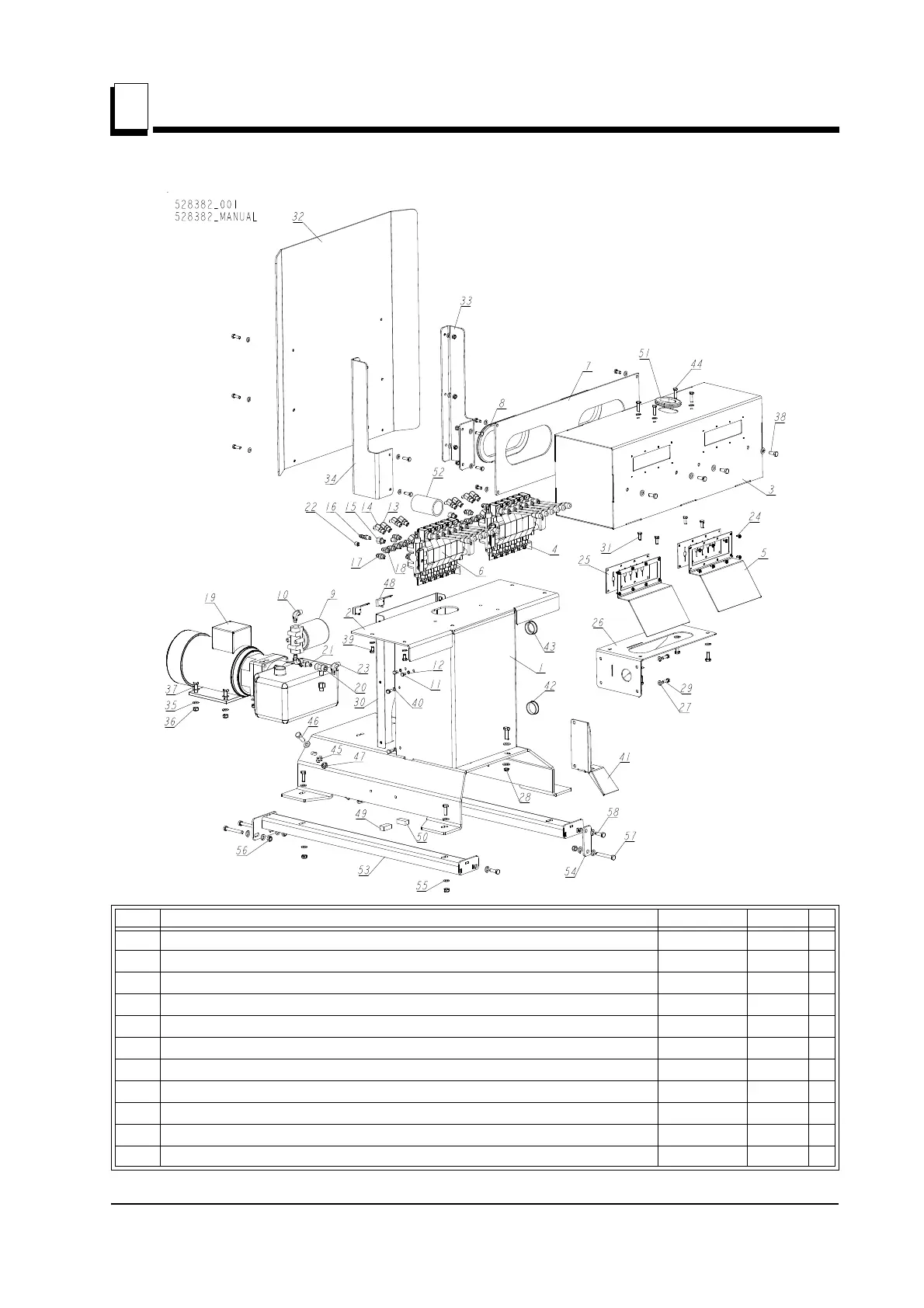

3.7 Hydraulic Control Box, 12-Section Remote Super
REF DESCRIPTION ( indicates parts available in assemblies only) PART # QTY
- BOX, 12-SECTION REMOTE SUPER HYDRAULIC CONTROL 528382 1
1 BASE WELDMENT, REMOTE HYDRAULIC CONTROL BOX 500509-1 1
2 PLATE, REMOTE HYDRAULIC CONTROL BOX 500510-1 1
3 HOUSING WELDMENT, HYDRAULIC VALVE - REMOTE CONTROL BOX 500512-1 1
4 VALVE, HDS10/6-6 6-SECTION 015260_ 1
5 PLATE, RUBBER GUARD DOUBLE 015078 2
6 VALVE, 6-SECTION SERIES CONNECTION 501104 1
7 PANEL, HYDRAULIC VALVE HOUSING REAR 500515 1
8 GROMMET, 4 3/8 X 10 OVAL RUBBER 085759 2
9 MANIFOLD, W/FILTER P22683 1
10 FITTING, 1/2NPT-3/8 BARB ELBOW P12707 2
