Wood-mizer LT70 User Manual

REPLACEMENT PARTS
Remote Control Box
3
3-3 doc070822 REPLACEMENT PARTS

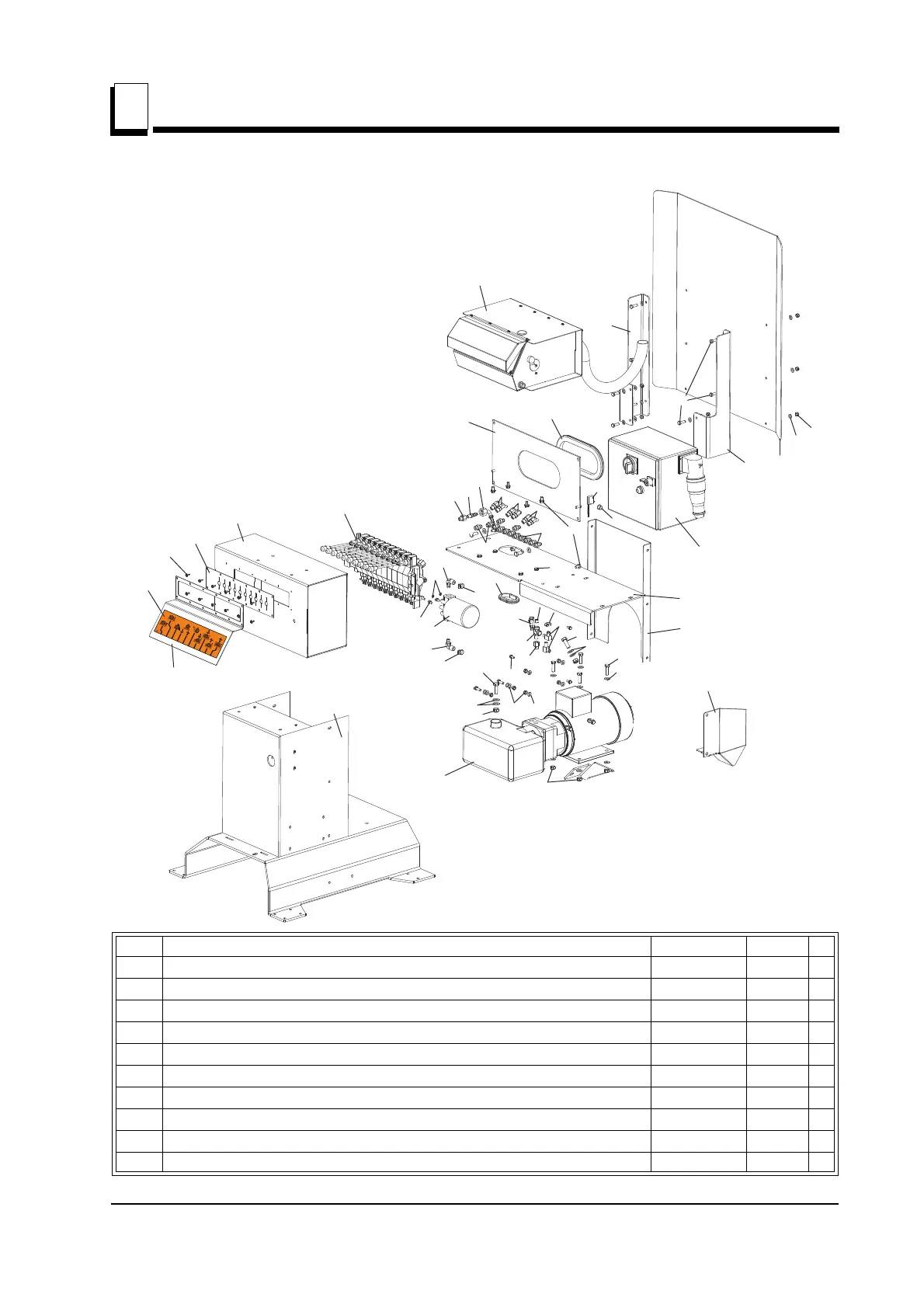

3.3 Remote Control Box
REF. DESCRIPTION ( Indicates Parts Available in Assemblies Only) PART # QTY
BOX ASSEMBLY, 10-SECTION REMOTE CONTROL 501103 1
BOX ASSEMBLY, 10-SECTION REMOTE CONTROL 509276 1
BOX ASSEMBLY, 10-SECTION REMOTE CONTROL FRONT 512224 1
1 BASE, REMOTE CONTROL BOX 500509-1 1
2 PLATE, REMOTE CONTROL BOX 500121-1 1
3 BOX WELDMENT, HYDRAULIC 500128-1 1
4 VALVE, HDS11/10- 8-SECTION HYDRAULIC 091344 1
5 PUMP, AC.4KW 1.5L/MIN HYDRAULIC W/MOTOR 500958 1
6 MANIFOLD W/FILTER P22683 1
7 FITTING, 1/2NPT-3/8 BARB ELBOW P12707 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
19
20
21
23
22
24
25
26
27
7
10
10
16
17
28
29
30
31
32
33
34
34
35
36
37
39
40
41
4
2
4
3
4
4
46
47
45
46
47
4
8
49
5
0
38
ac_s145_D
