Wood-mizer LT70 User Manual

REPLACEMENT PARTS
Bed Extension LT70 Remote
3
3-39 doc070822 REPLACEMENT PARTS

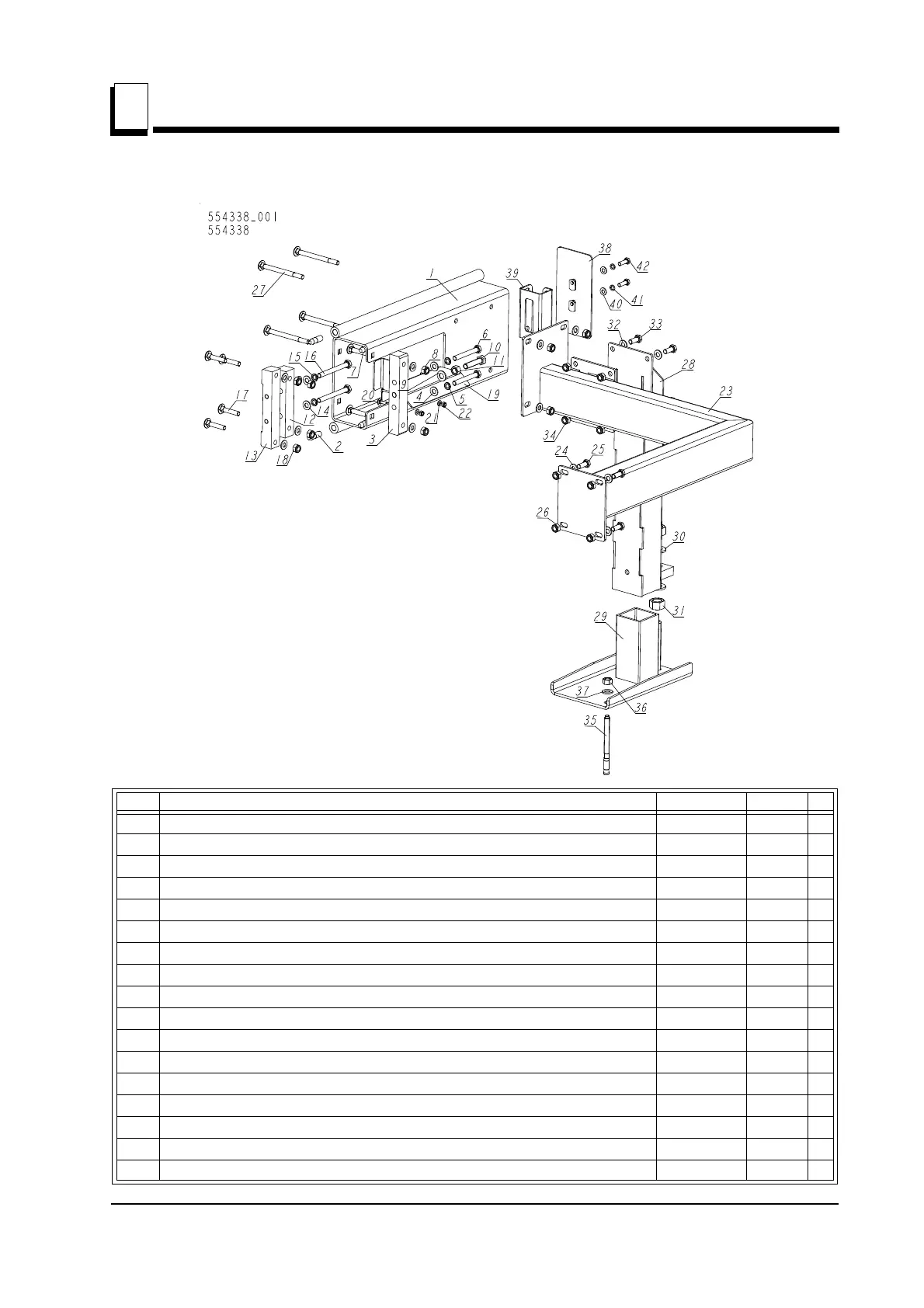

3.21 Bed Extension LT70 Remote
REF DESCRIPTION (u indicates parts available in assemblies only) PART # QTY
- BED EXTENSION, LT70 REMOTE 554338 1
1 TUBE, EXTENSION W/RODS 20 CAL. 554339-1 1
2 PIN, SPECIAL 090675 2
- BAR, MOUNTING 554342 1
3 BLOCK, SPACER 554341 1
4 WASHER, 10.5 FLAT ZINC F81055-1 4
5 WASHER, 10.2 SPLIT LOCK ZINC F81055-2 2
6 BOLT, M10X80 8.8 HEX HEAD FULL THREAD ZI F81003-76 2
7 BOLT, M10X50 CARRIAGE ZC 8.8 F81003-133 2
8 NUT, M10-8-B NYLON HEX ZINC LOCK F81033-1 2
9 WASHER, 13 FLAT ZINC F81056-1 1
10 BOLT, M12X55-8.8 HEX HEAD FULL THREAD ZI F81004-43 1
11 NUT, M12-8-B HEX ZINC F81034-1 1
- BAR, MOUNTING 554344 1
12 BLOCK, SPACER 554343 1
13 BLOCK, SPACER 554345 1
14 WASHER, 10.5 FLAT ZINC F81055-1 6
