Wood-mizer LT70 User Manual

REPLACEMENT PARTS
Board Removal Bumper
REPLACEMENT PARTS doc070822 3-34
3

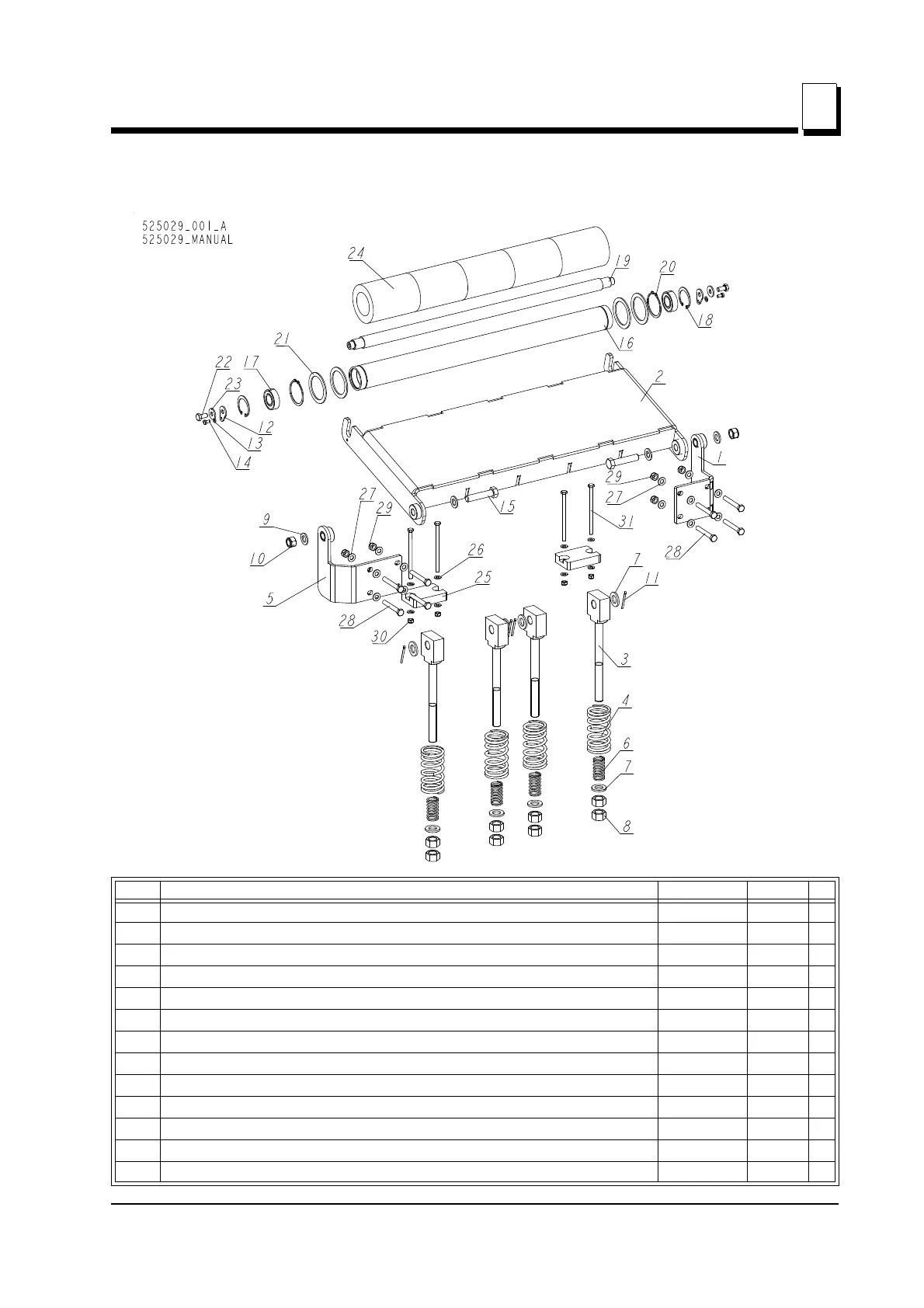

3.18 Board Removal Bumper
REF. DESCRIPTION ( Indicates Parts Available in Assemblies Only) PART # QTY
- BUMPER, BOARD REMOVAL - S FRAME 525029 1
1 BRACKET, BUMPER RIGHT 525025-1 1
2 PLATE WELDMENT, BOARD REMOVAL BUMPER 509547-1 1
3 ROD WELDMENT, BUMPER SPRING 510818-1 1
4 SPRING, 110X46X6.5 CUSHION 510815 4
5 BRACKET, BUMPER LEFT 525024-1 4
6 SPRING, 60X23X3 088992 4
7 WASHER, 21 FLAT ZINC F81059-2 8
8 NUT, M20-8 HEX ZINC F81037-1 8
9 WASHER, 17 SPLIT LOCK ZINC F81058-1 4
10 NUT, M16-8 HEX NYLON ZINC LOCK F81036-2 2
11 PIN, S-ZN-4X45 COTTER F81043-22 4
12 WASHER, WM4000 ROLLER MOUNTING 510874-1 2
