Wood-mizer LT70 User Manual

REPLACEMENT PARTS
Remote Control Box (16-Section)
REPLACEMENT PARTS doc070822 3-16
3

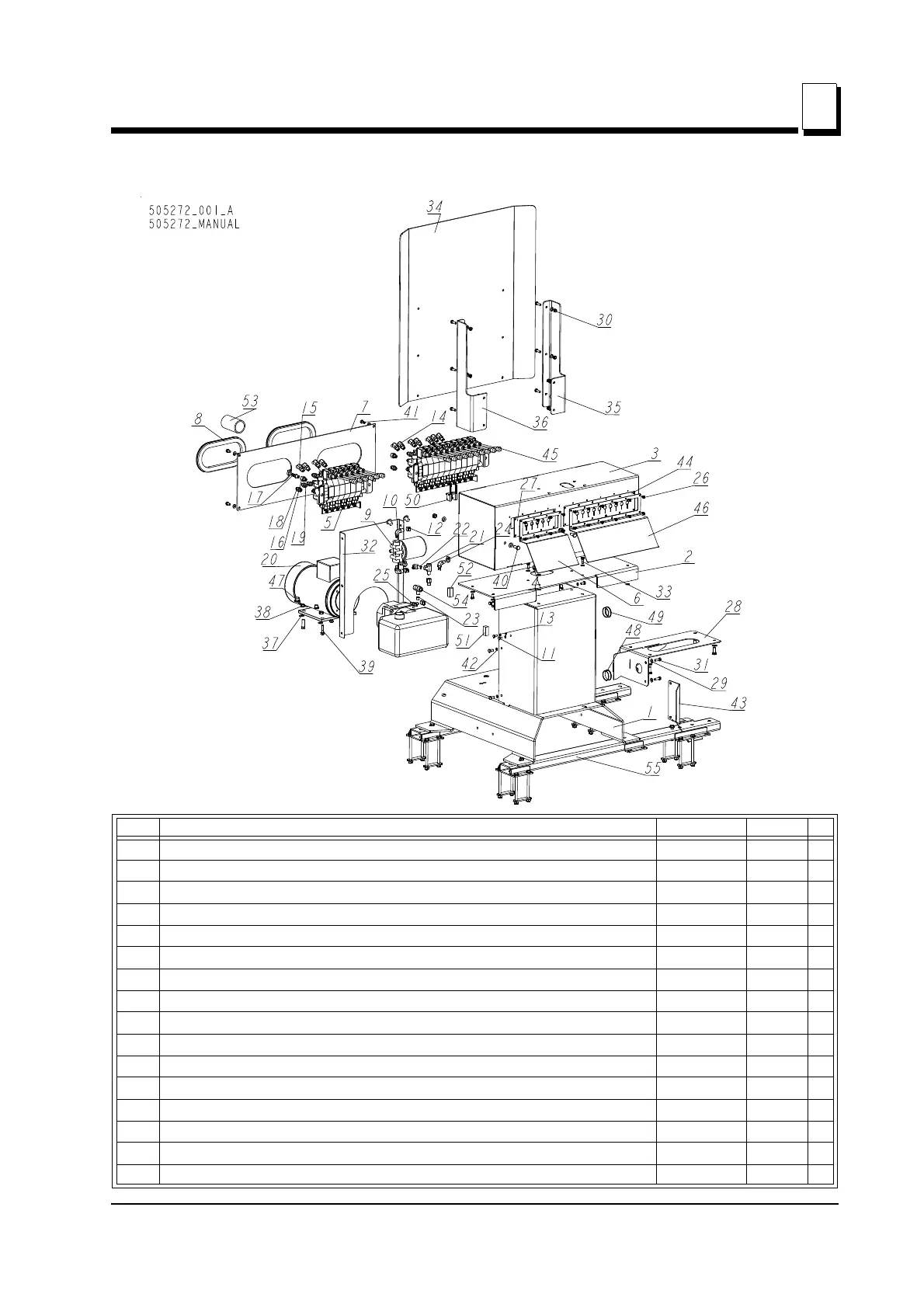

3.8 Remote Control Box (16-Section)
REF DESCRIPTION (u indicates parts available in assemblies only) PART # QTY
- BOX, 16-SECTION REMOTE CONTROL - COMPLET 505272 1
1 BASE, REMOTE CONTROL BOX 500509-1 1
2 PLATE, REMOTE CONTROL BOX MOUNT 500510-1 1
3 HOUSING, HYDRAULIC VALVE 505273-1 1
4 GROMMET, RUBBER 087065 1
5 VALVE, 6-SPOOL FOR SERIES CONNECTION 501104 1
6 PLATE, RUBBER GUARD DOUBLE 015078 1
7 COVER REAR HOUSING CONTROL BOX 500515 1
8 GROMMET, 230X95X15MM, RUBBER 085759 2
9 MANIFOLD, W/FILTER P22683 1
10 FITTING, 1/2NPT-3/8 BARB ELBOW P12707 2
11 BOLT, 1/4-20 X 1/2 HH F05005-15 2
12 CLAMP, 11/16 WORM P12739 7
13 WASHER, Z 6.1 SPLIT LOCK ZINC F81053-3 2
14 FITTING, #4JIC-#6SAE 45DEG ELBOW 015488 10
15 FITTING, #6SAE 45DEG ELBOW 015489 1
