Woodward GCP-30 Series - Panel Cut-Out; Figure 3-2: Housing - Control Panel Cut-Out; Table 3-1: Housing - Panel Cut-Out

Manual 37364A GCP-30 Packages - Genset Control
Panel Cut-Out
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡
h' h
H
b
B
b'

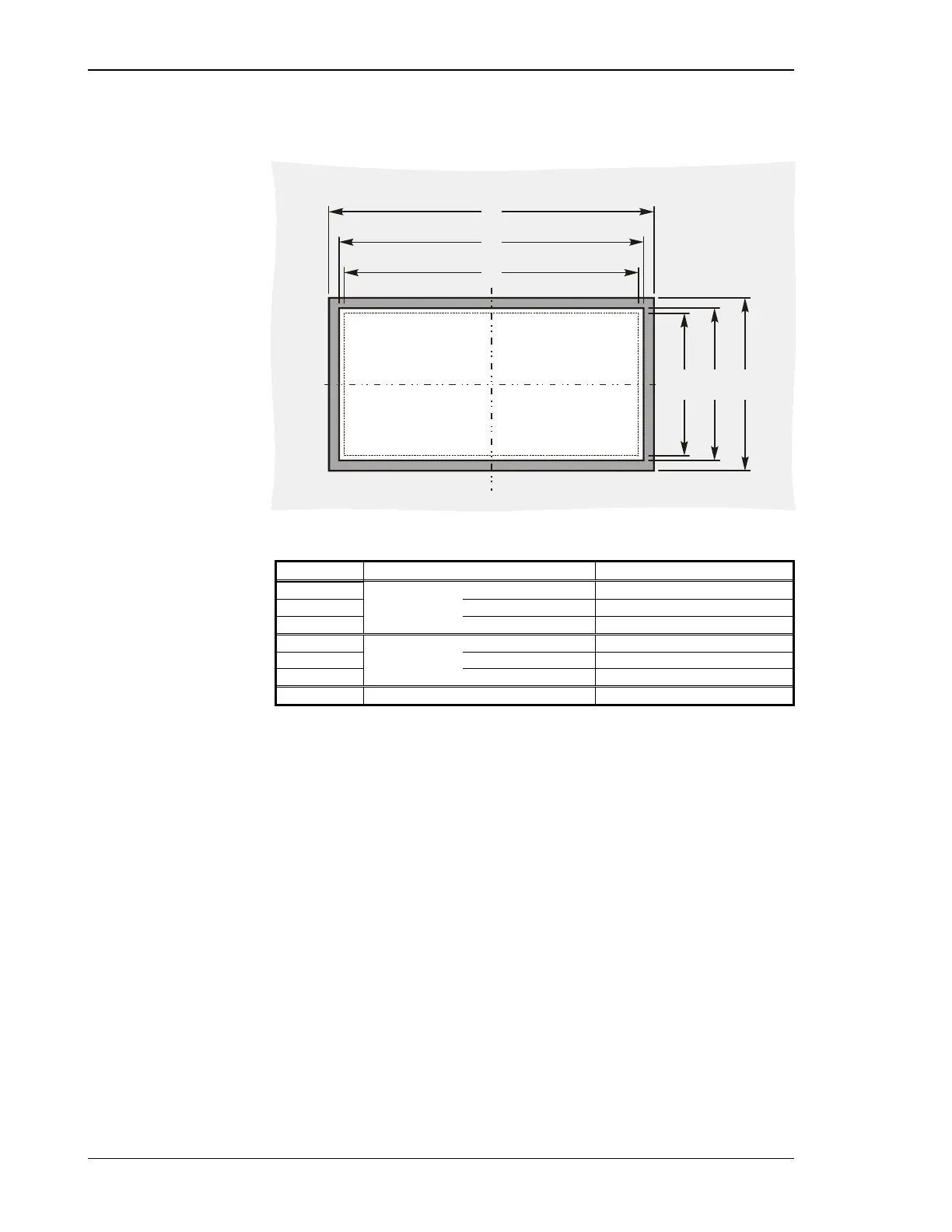

Figure 3-2: Housing - Control panel cut-out
Measure Description Tolerance
H Height Total 144 mm ---
h Panel cut-out 138 mm + 1.0 mm
h' Housing dimension 136 mm
B Width Total 144 mm ---
b Panel cut-out 138 mm + 1.0 mm
b' Housing dimension 136 mm
Depth Total 118 ---
Table 3-1: Housing - panel cut-out
Page 10/46 © Woodward
