Woodward GCP-30 Series Installation

Manual 37364A GCP-30 Packages - Genset Control
Multi Functional Controller Outputs (BPQ, XPQ)
Configuration and an external jumper can change the multifunction controller outputs.
Versions
- Three-position controller via relay manager
- Control of n/f/P
: Parameter "F/P contr.type" = THREESTEP
n+/f+/P+ = relay manger parameter 114
n-/f-/P- = relay manager parameter 115
- Control of V/Q
: Parameter "V/Q contr.output" = THREESTEP
V+/Q+ = relay manager parameter 116
V-/Q- = relay manager parameter 117
- Analog controller output
- Control of n/f/P
: Parameter "F/P contr.type" = ANALOG
Current output (mA) = no jumpers necessary
Voltage output (V) = jumpers between 8/9
Connect speed control to terminals 9/10
- Control of V/Q
: Parameter "V/Q contr.output" = ANALOG
Current output (mA) = no jumpers necessary
Voltage output (V) = jumpers between 11/12
Connect voltage regulator to terminals 12/13
- PWM controller output
- Control of n/f/P
: Parameter "F/P contr.type" = PWM
PWM output = jumpers between 8/9
Connect speed control to terminals 9/10
Wiring Of Controller
- Setting: THREE-POSITION (Three-position controller)
A/C
B/D
Relay output
max. 250 Vac

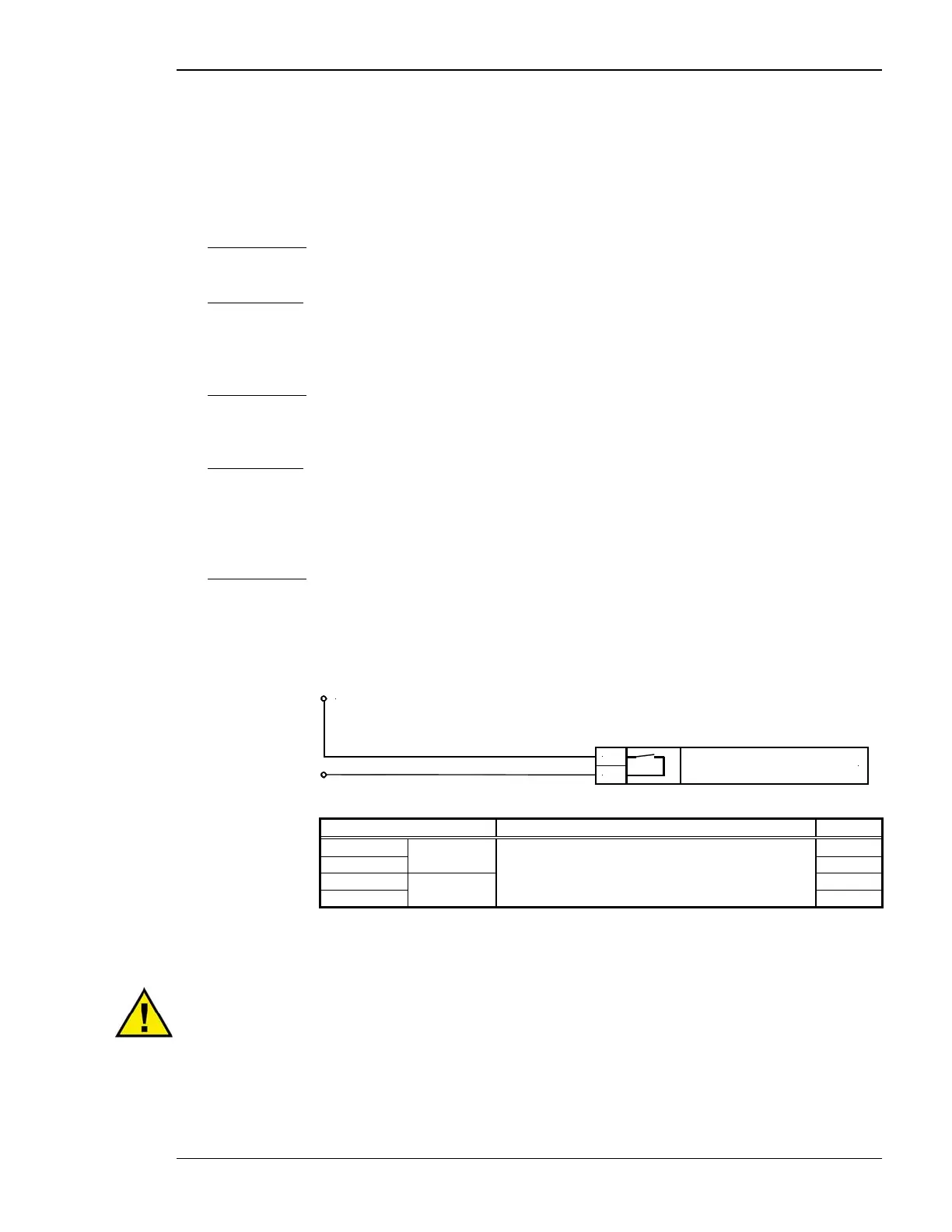

Figure 5-18: Three-position controller
Terminal Description A
max
A
raise
Speed / Frequency / Real power
(RelayManager: "raise" = 114, "lower" = 115) or
Voltage / Reactive power
(RelayManager: "raise" = 116, "lower" = 117)
2.5 mm²
B 2.5 mm²
C
lower
2.5 mm²
D 2.5 mm²
The selection and programming occurs via the relay manager (RM).
Table 5-20: Controller outputs - three-position
CAUTION
Refer to Technical Data on page 42 for information about current limits. Use an interposing relay if ne-
cessary. Currents higher than those specified destroy the hardware!
© Woodward Page 37/46
