Manual 37364A GCP-30 Packages - Genset Control
Installation
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡

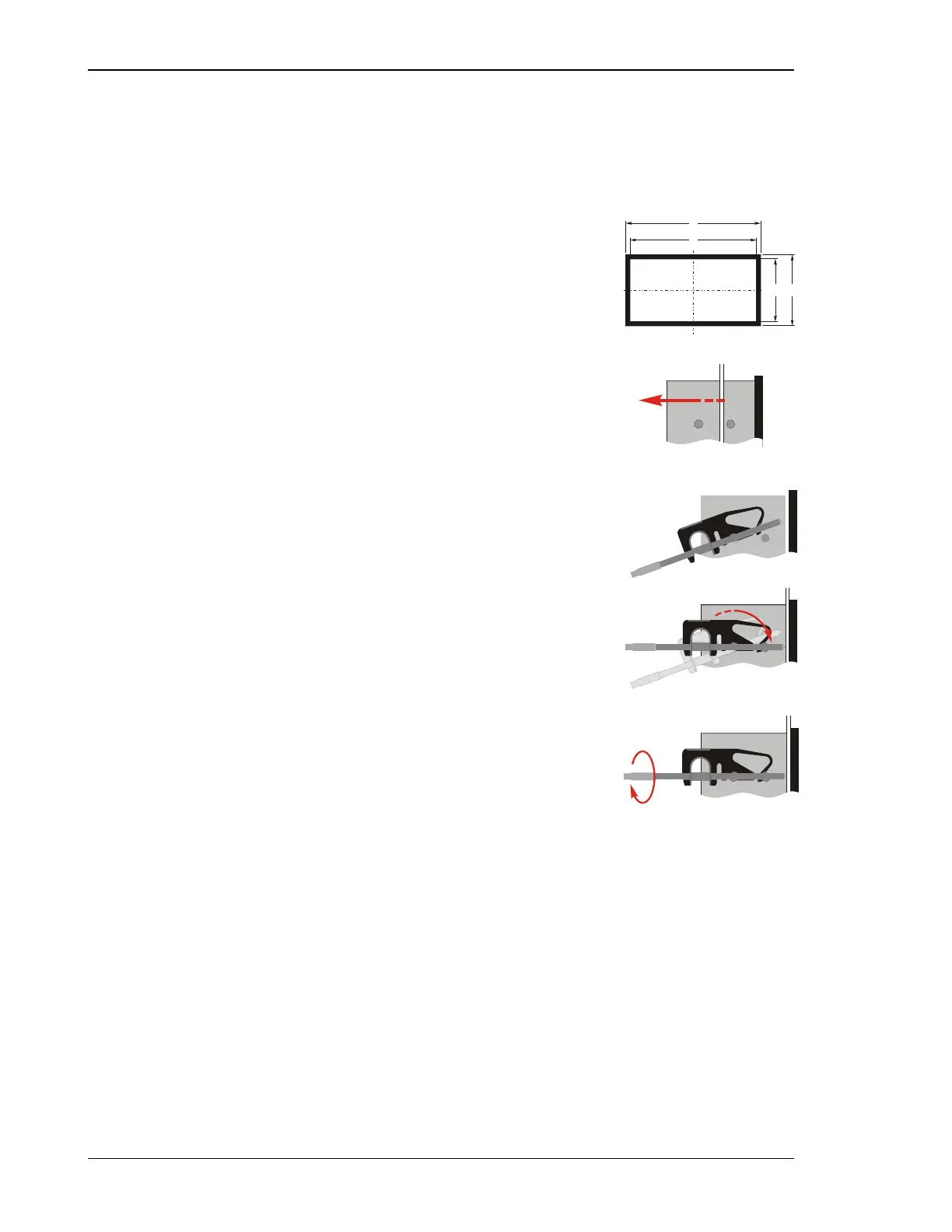

For installation into a door panel proceed as follows:
1.
Panel cut-out
Cut out the panel according to the dimensions in Figure 3-1.
b
h
H
B
2.
Insert control into cut-out
Insert the control into the panel cut-out. Verify that the control fits cor-
rectly in the cut-out. If the panel cut-out is not big enough, enlarge it
accordingly.
Move housing into panel
3.
Attach mounting clamps
Rotate clamps according to the picture on the right until they snap into
the mounting cones.
a)
Attach clamp here
b)
Rotate clamp until front
nut of the clamp locks into
front cone
4.
Screw clamps
Tighten the screw clamps until the housing is pressed and fixed against
the panel. Be careful not to over tighten the clamps, which can unsnap
the front frame from the housing. If this happens remove the control
from the panel and reattach the frame by pressing firmly against the
housing.
Screw down until the
housing fits into
the panel
Note: Using the gasket kit (P/N 8923-1043) increases the IP protection from IP42 to IP54 from front. Mounting
of the gasket is described in the manual supplied with the gasket kit.
Page 12/46 © Woodward
