Woodward GCP-30 Series Installation

Manual 37364A GCP-30 Packages - Genset Control
Chapter 6.
Technical Data

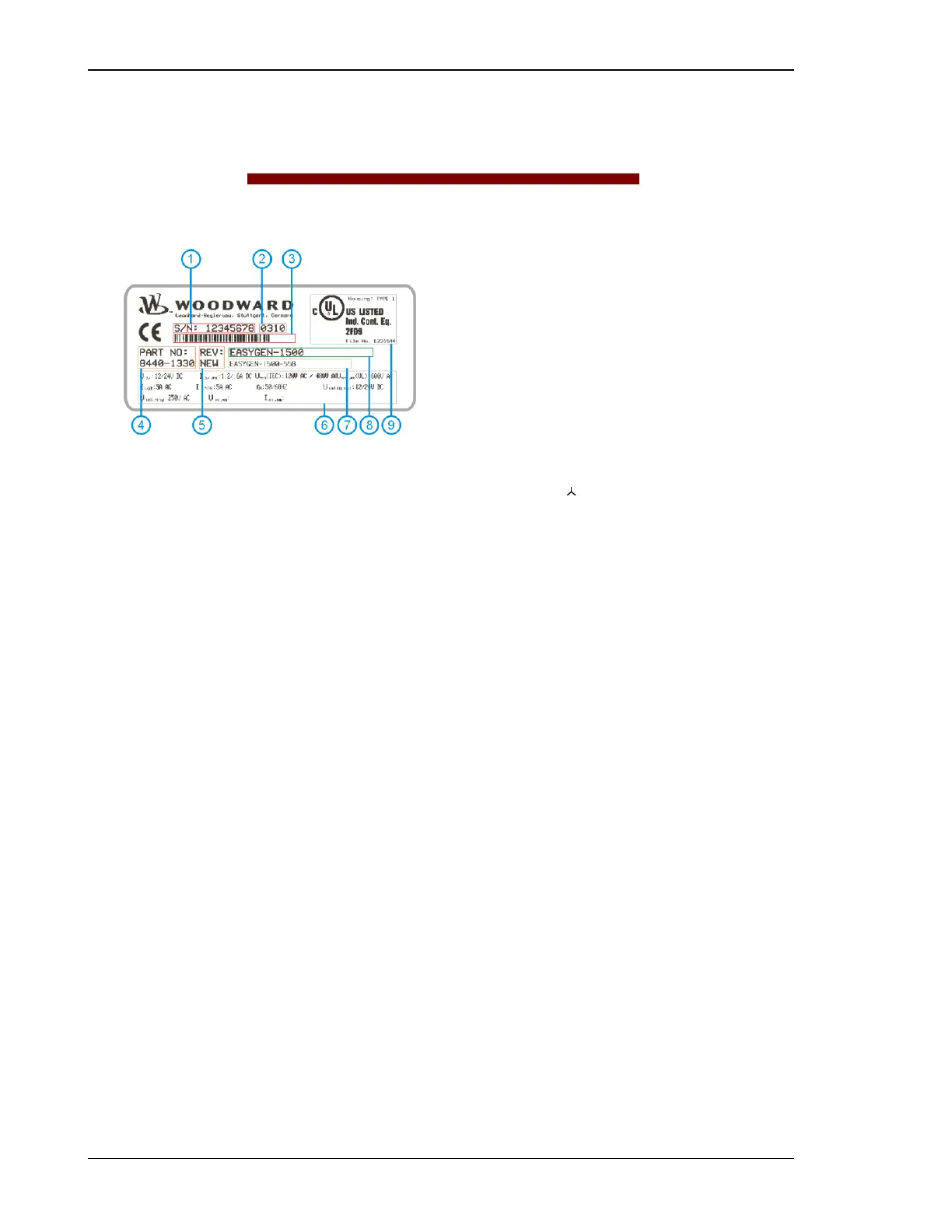

Nameplate ------------------------------------------------------------------------------------------------------
1 S/N Serial number (numerical)
2 S/N Date of production (YYMM)
3 S/N Serial number (Barcode)
4 P/N Item number
5 REV Item revision number
6 Details Technical data
7 Type Description (long)
8 Type Description (short)
9 UL UL sign
Measuring values, voltages ----------------------------------------------------------------------------------
- Measuring voltage Rated value (V
rated
) /Δ ........................... [1] 66/115 Vac
[4] 230/400 Vac
Maximum value V
Ph-Ph
(UL/cUL) ....... [1] max. 150 Vac
[4] max. 300 Vac
Rated voltage V
Ph-ground
................................. [1] 150 Vac
[4] 300 Vac
Rated surge voltage ........................................ [1] 2.5 kV
[4] 4.0 kV
- Setting range (prim) ............................................................................ 0.050 to 65.000 kVac
- Linear measuring range ........................................................................................1.3 × V
rated
- Measuring frequency ................................................................. 50/60 Hz (40.0 to 70.0 Hz)
- Accuracy ................................................................................................................... Class 1
- Input resistance per path ................................................................................... [1] 0.21 MΩ
[4] 0.7 MΩ
- Maximum power consumption per path ................................................................ < 0.15 W
Measuring values, currents ------------------------------------------------------------------------ isolated
Measuring current Rated value (I
rated
).................................................. ../5 A
- Accuracy ................................................................................................................... Class 1
- Linear measuring range Generator ......................................................... 3.0 × I
rated
Mains/ground current ...................................... 1.5 × I
rated
- Maximum power consumption per path .............................................................. < 0.15 VA
Rated short-time current (1 s) ..... ....................................................................... 10.0 × I
rated
Ambient variables ---------------------------------------------------------------------------------------------
- Power supply ............................................................................ 12/24 Vdc (9.5 to 32.0 Vdc)
- Intrinsic consumption .......................................................................................... max. 20 W
- Ambient temperature Storage .................................. -30 to 80 °C / -22 to 176 °F
Operation ................................ -20
to 70 °C / -4 to 158 °F
- Ambient humidity ............................................................................. 95 %, non-condensing
Page 42/46 © Woodward
