Mains (Mains Current Measuring Via Transformer)
L2
L3
L1
N
GCB
S1
s1
S2
s2
MCB
G
Mains current
../1A or ../5 A
s1 (k)
27 28
s2 (l)
L1

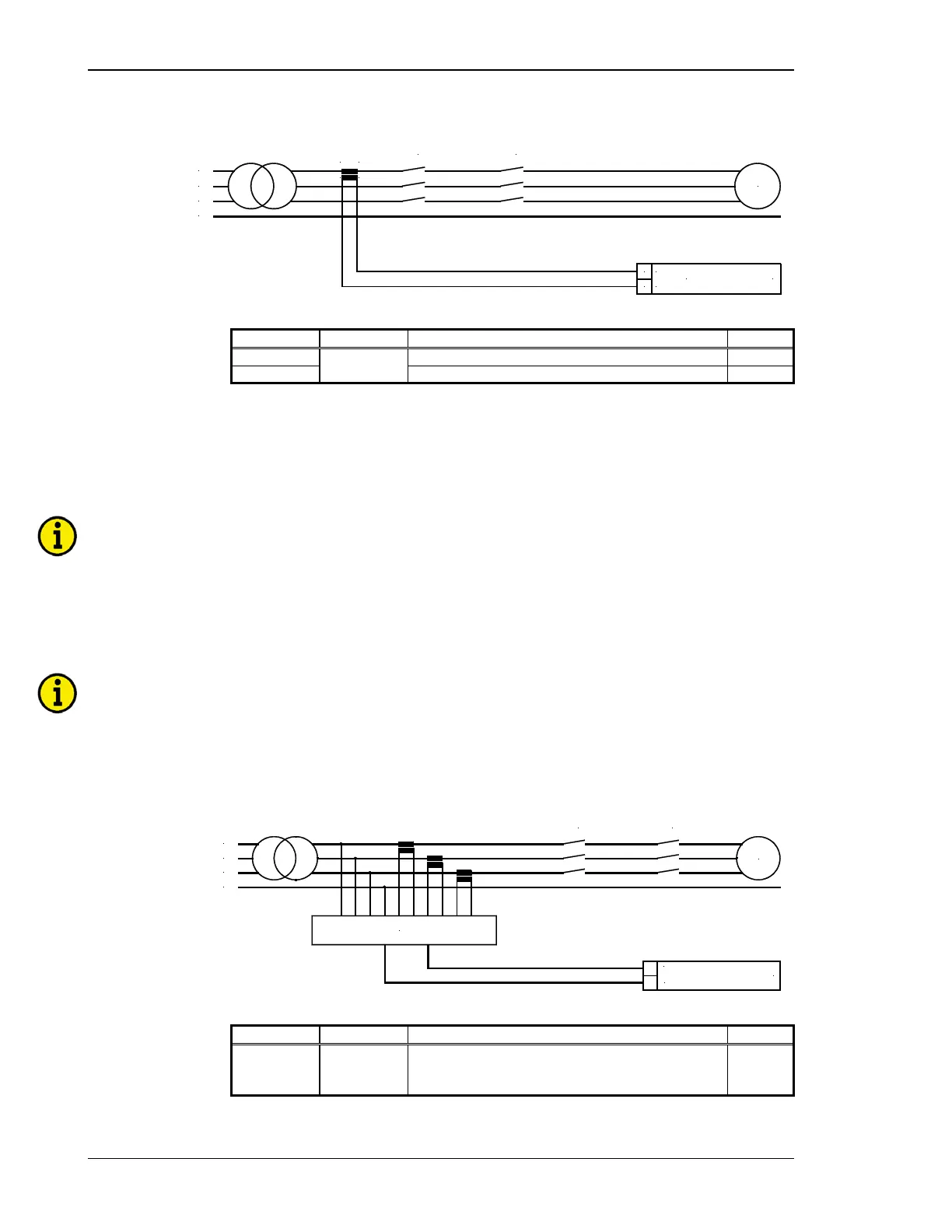

Figure 5-6: Measuring inputs - Current - Mains - via transformer
Terminal Measurement Description A
max
27
Transformer
../1A or ../5A
Mains current L1, transformer terminal s2 (l) 2.5 mm²
28 Mains current L1, transformer terminal s1 (k) 2.5 mm²
Table 5-7: Terminal assignment - mains current measuring
Mains (Mains Interchange Import/Export Real Power Actual Value Via Measuring Transducer
[XPD and XPQ])
NOTE
During configuration the free configurable 20 mA inputs can be enabled with the following functions:
• Mains interchange (import/export) real power actual value
• Real power set point value
• Alarm input
Please note the details in the configuration manual 37365.
NOTE
If several controls are interconnected, the 20 mA measuring signal must not be looped through all con-
trols. At each control, a 0/4 to 20 mA buffer amplifier must be connected to the mains interchange (im-
port/export) real power measurement output signal. When selecting the external measuring transducer,
please note that this must transmit both positive and negative ranges when transmitting the supply
and reference power values.
Measuring transducer
MCB GCB
Mains active power
0/4 to 20 mA
G
L2
L3
L1
N
+
-
Figure 5-7: Measuring inputs - Real power - Mains - via measuring transducer
Terminal Measurement Description A
max
configurable
see page 33
0/4 to 20 mA
Mains interchange (import/export) real power meas-
ured value via 0/4 to 20 mA signal of an external mea-
suring transducer (e.g. UMT 1)
1.5 mm²
Table 5-8: Terminal assignment - mains real power measuring
