ProTechTPS Total Protection System Manual 26710V1

114 Woodward

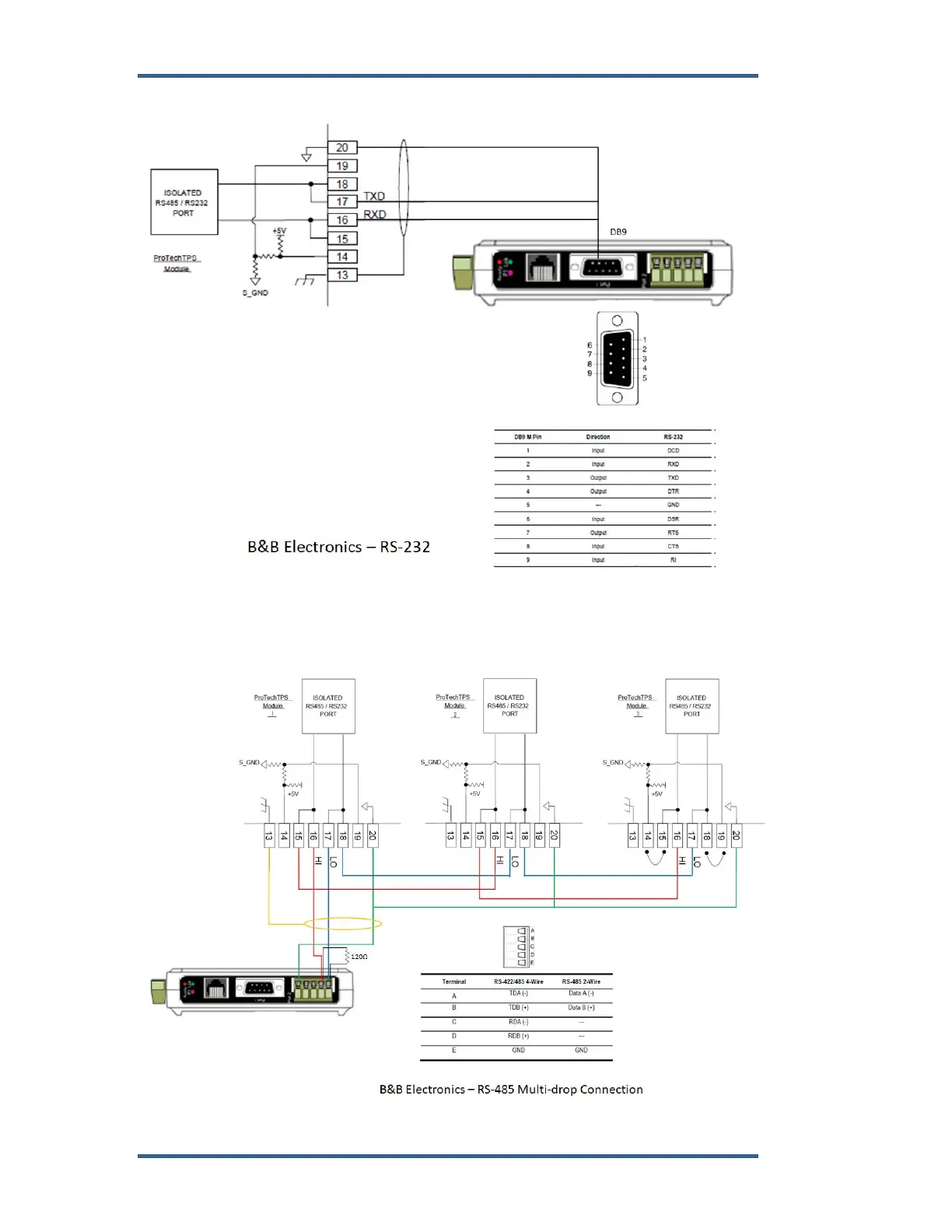

Wiring

RS-232

NOTE: The Serial DB9 connection is used for RS-232 communication only.

RS-485 2-wire

NOTE: Use the terminal block for wiring of RS-485 communications.
