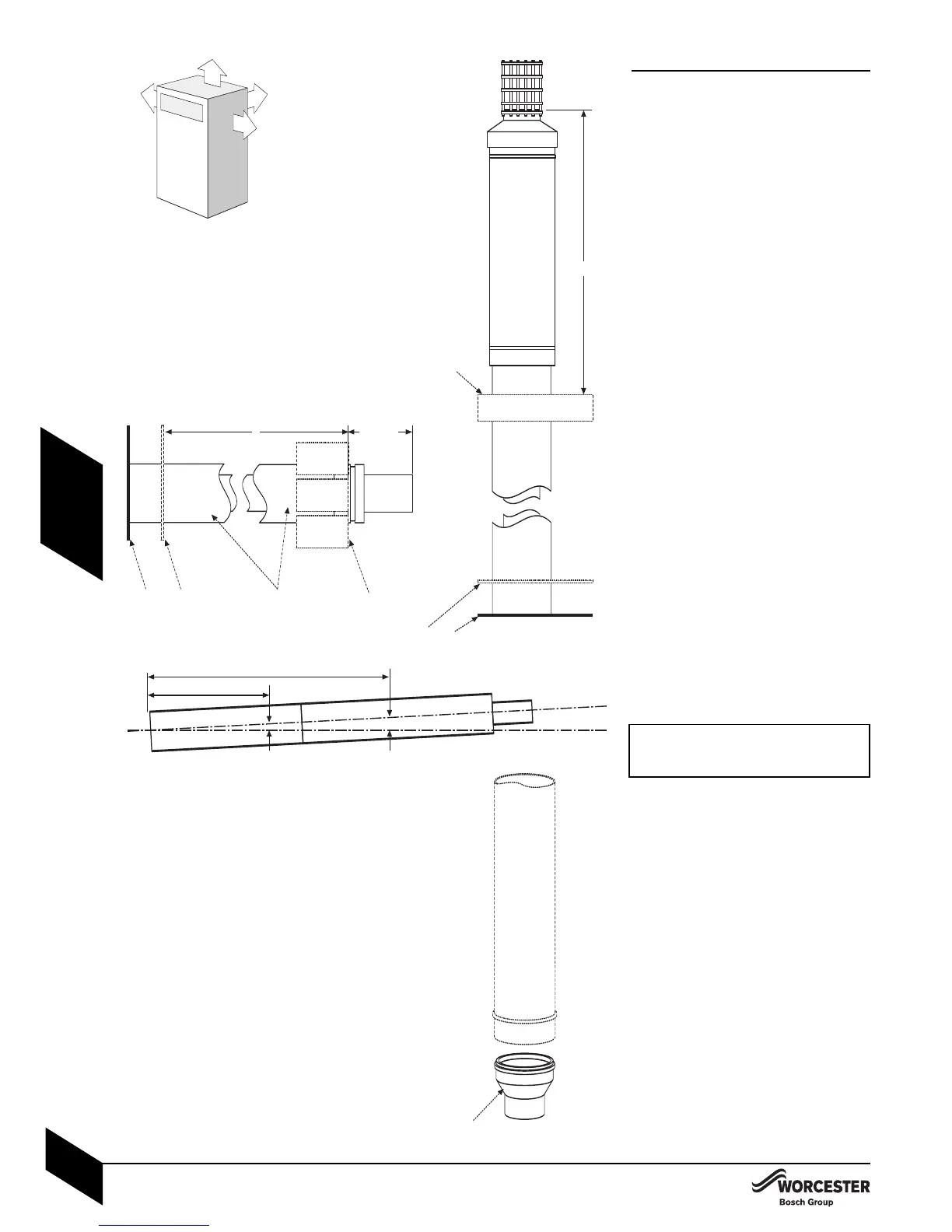

The flue can exit the boiler from outlets A, B, C
or D allowing vertical (RS) and horizontal (RS
low or high level) flues to be fitted. (CF position
'A' only).
Refer to the separate flue installation
instructions supplied with the flue kits available
for this boiler:
RS FLUE KITS & COMPONENTS
80/125mm Ø (not supplied):
Horizontal flue kit: Part No. 7 716 190 031
Vertical flue kit: Part No. 7 716 190 032
Extension kit (1 metre) x1: Part No. 7 716 190 033
Inline elbow 90° x1: Part No. 7 716 190 034
Inline elbow 45° x2: Part No. 7 716 190 035
St
ainless steel horizontal terminal guard:
Part No
. 7 716 190 050
100/150mmØ (not supplied) for 25/32
vertical terminal:
Vertical flue kit: Part No. 7 716 190 044
Extension kit (1 metre) x1: Part No. 7 716 190 045
Inline elbow 90° x1: Part No. 7 716 190 046
Inline elbow 45° x2: Part No. 7 716 190 047
Inline adaptor 80/125 to 100/150mm Ø:
Part No. 7 716 190 063
CF FLUE KIT 100 & 103mm Ø (not supplied):
CF Adaptor kit: Part No. 7 716 190 036
CF 100/130 adaptor: Part No. 7 716 190 065
INSTALLATION NOTES:
4 Ensure all flue seals are in good condition
and seated properly.
4 To ease assembly of flue components,
grease seals lightly with the solvent-free
grease supplied.
4 Use flue clamps to support the flue system.
IMPORTANT: The boiler is not designed to
take the weight of the flue system, this
must be supported externally to the boiler.
4 All horizontal flue sections must rise by at
least 52mm for eac
h metre away from the
boiler to ensure that condens
ate flows bac
k
into the boiler for safe discharge via the
condensate waste pipe.
FLUE INSTALLATION
F
LU
E I
N
S
T
ALLA
TI
O
N
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR CAMRAY KITCHEN 12/18-18/25-25/32
