6 720 610 597 GB (03.02)
28
Text Display
6 Text Display
6.1 General Description
• The text display is used to display information about
the appliance and the system and to alter the set-
tings displayed.
• Once the appliance has been in operation for one
day, the text display module has a power buffer
period of about 10 hours during which it will run with-
out the mains power supply. After that period has
elapsed, the clock function shuts down but all other
settings are retained.
6.2 Programming

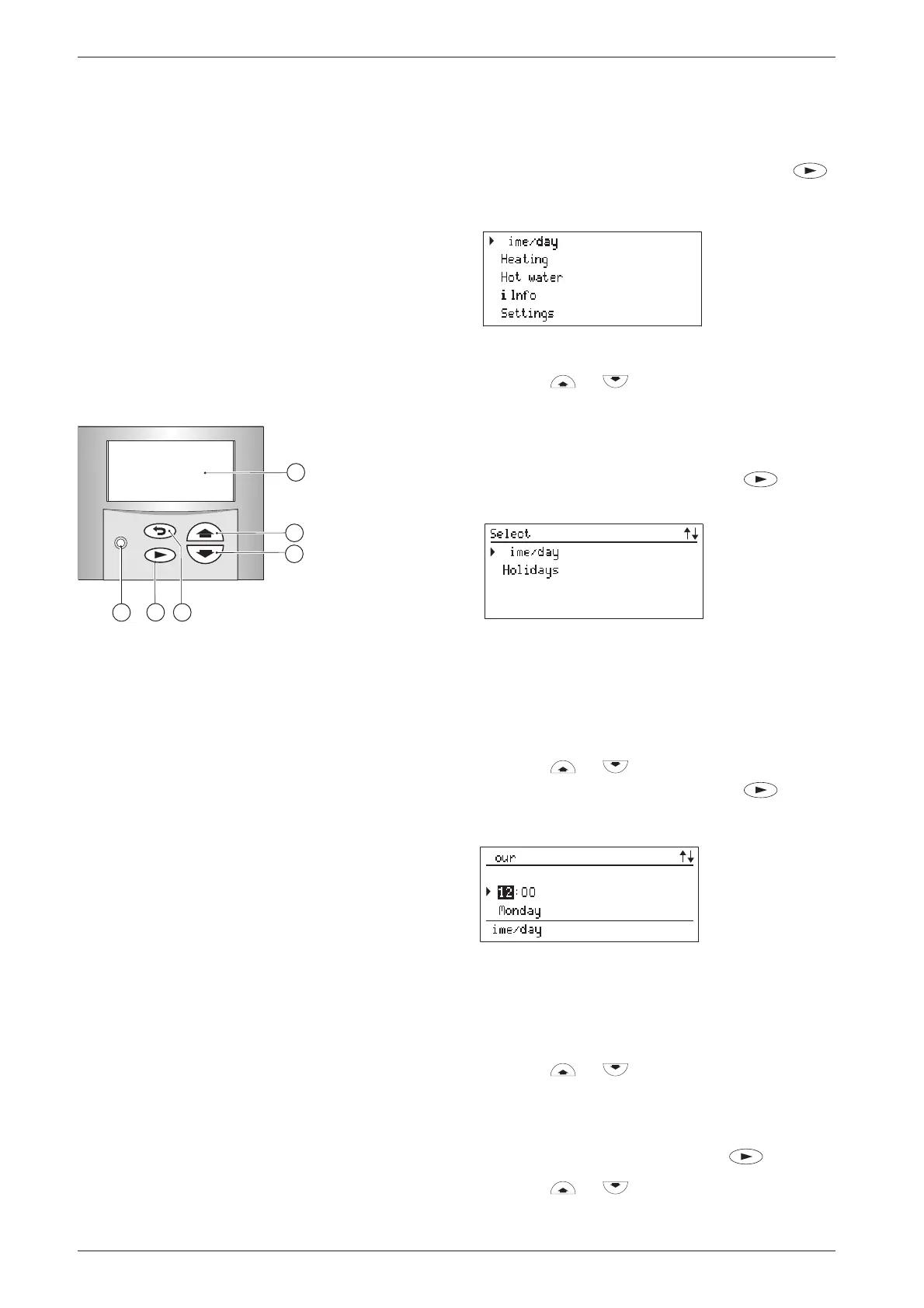

Fig. 35 Controls
a Display
b “Up”/“More” button
c “Down”/“Less” button
d “Back” button
e “Next” button
f “Delete” button
The standard display shows the following information:
• Time
• Room temperature (if TR 2 connected)
• CH flow temperature.
Additional indication if a special programme is active:
• x holidays
• Hot water immediately
• Constant on (comfort, if TR2 is not connected)
• Constant off (economy, if TR2 is not connected).
Other special operating modes may be displayed dur-
ing commissioning, servicing, etc.
The programming procedure is described in detail
below using the clock function as an example:
B To start programming, press any button, e. g. .
The display lighting switches on and the main menu
is displayed:
Fig. 36 Main menu
B Use the or button to move the cursor
arrow on the left of the menu so that it points to the
desired menu item.
In this example, the cursor is positioned next to the
menu item Time/day/holidays.
B Confirm the selection by pressing the button.
The corresponding submenu is displayed:
Fig. 37 Submenu: Time/day
In the submenus, the top line indicates what action is
required.
The bottom line shows the previous menu level, if appli-
cable (see Fig. 38).
B Use the or button to select Time/day.
B Confirm the selection by pressing the button.
The corresponding submenu is displayed:
Fig. 38 Setting the hour
When settings are being entered, the setting to be
altered is indicated on the top line. In addition, the set-
ting being altered is displayed with a dark background.
B Use the or button to set the hour.
– Press and release to change the display by one
unit at a time
– Press and hold to change the display rapidly
B Confirm the setting by pressing the button.
B Use the or button to set the minutes.
c
b
a
f
e
d
C
6 720 610 337-08.1R
6 720 610 598-04.2O
T
/holidays
6 720 610 598-05.2O
T
6 720 610 598-06.2O
T
H
