6 720 610 576 GB (03.02)
Electrical connections
21
4 Electrical connections
All control and safety systems are built into the appli-
ance.
B Allow mains cable to protrude at least 50 cm from
wall.
B To make splash-water proof (IP): cut the cable grom-
met hole size to match diameter of cable, see fig. 27.
It must be possible to isolate the appliance. The appli-
ance must be earthed.
The appliance must be connected to the mains through
a 6 A double pole isolator with a contact separation
3 mm in all poles and supplying the appliance and con-
trols only. The wiring must comply with the current
requirements of the IEE Wiring Regulations and any
local regulations which apply.
• Supply: 230 V ~ 50 Hz, 140 Watts
• Mains cable: PVC insulated 0.75 mm
2
(24 x 0.20 mm) to BS6500-Table 6.
Temperature rated 100˚C.
• Protection IPX4D
• External fuse 3 A.
4.1 Connecting the appliance
To gain access to the mains connection remove the
drop down facia cover. The drop down cover is
removed by lowering it to the horizontal position and
pushing firmly upwards at the rear of the supports to
release the cover. Lift cover from the appliance.
After installation (or in the event of an electrical fault) the
electrical system shall be checked for short circuits,
fuse failure, incorrect polarity of connections, earth con-
tinuity and resistance to earth.

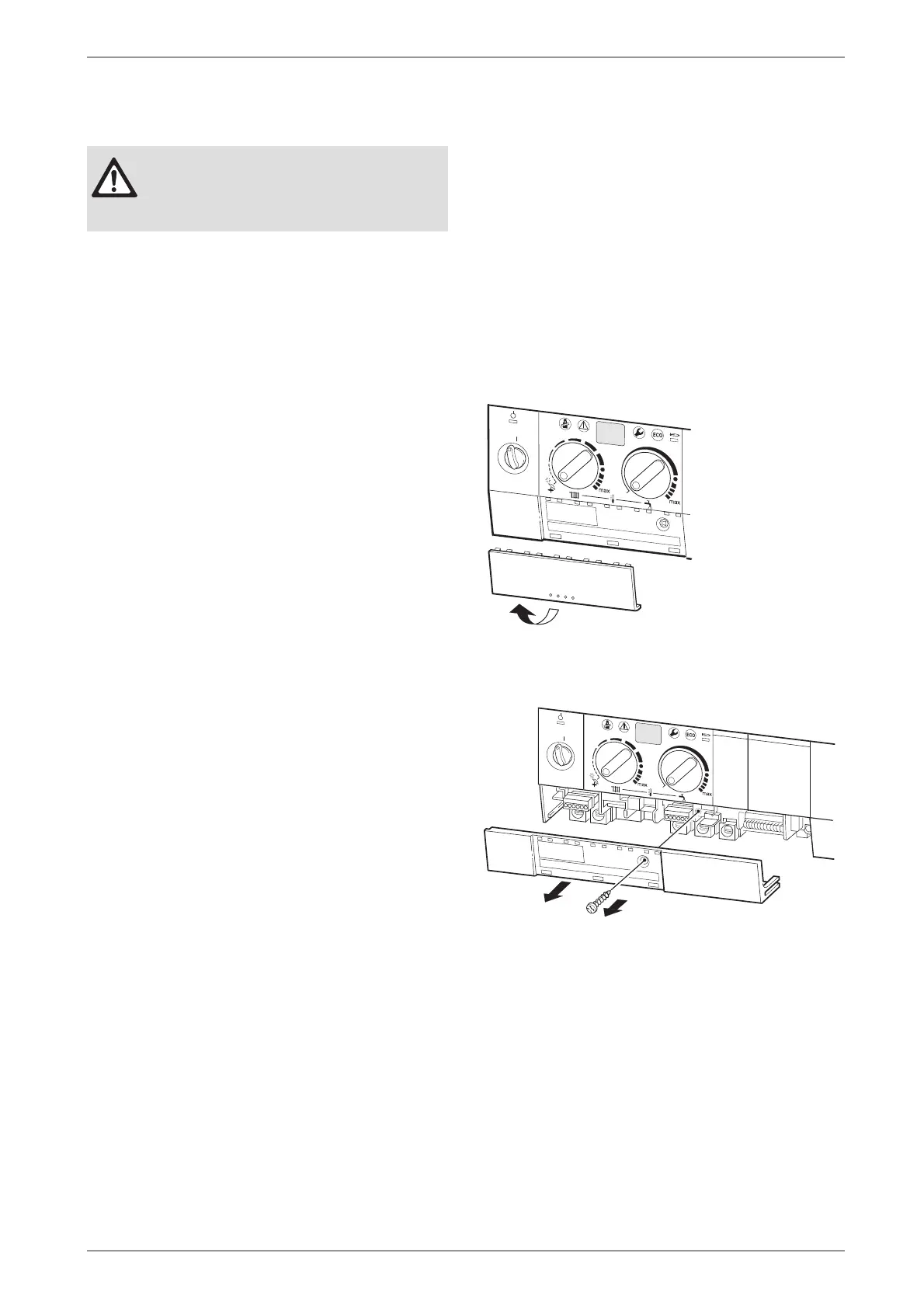

B Pull out cover panel at the bottom and remove. Refer
to fig. 25.
Fig. 25
B Remove screw and slide terminal cover forwards to
remove. Refer to fig. 26.
Fig. 26
B Always disconnect the power supply to
the appliance at the mains before carry-
ing out any work on the electrical sys-
tems and components.
0
1
2
3
4
5
E
6 720 610 332-10.1R
0
1
2
3
4
5
E
6 720 610 332 -11.1R
