6 720 610 576 GB (03.02)
Installation
19

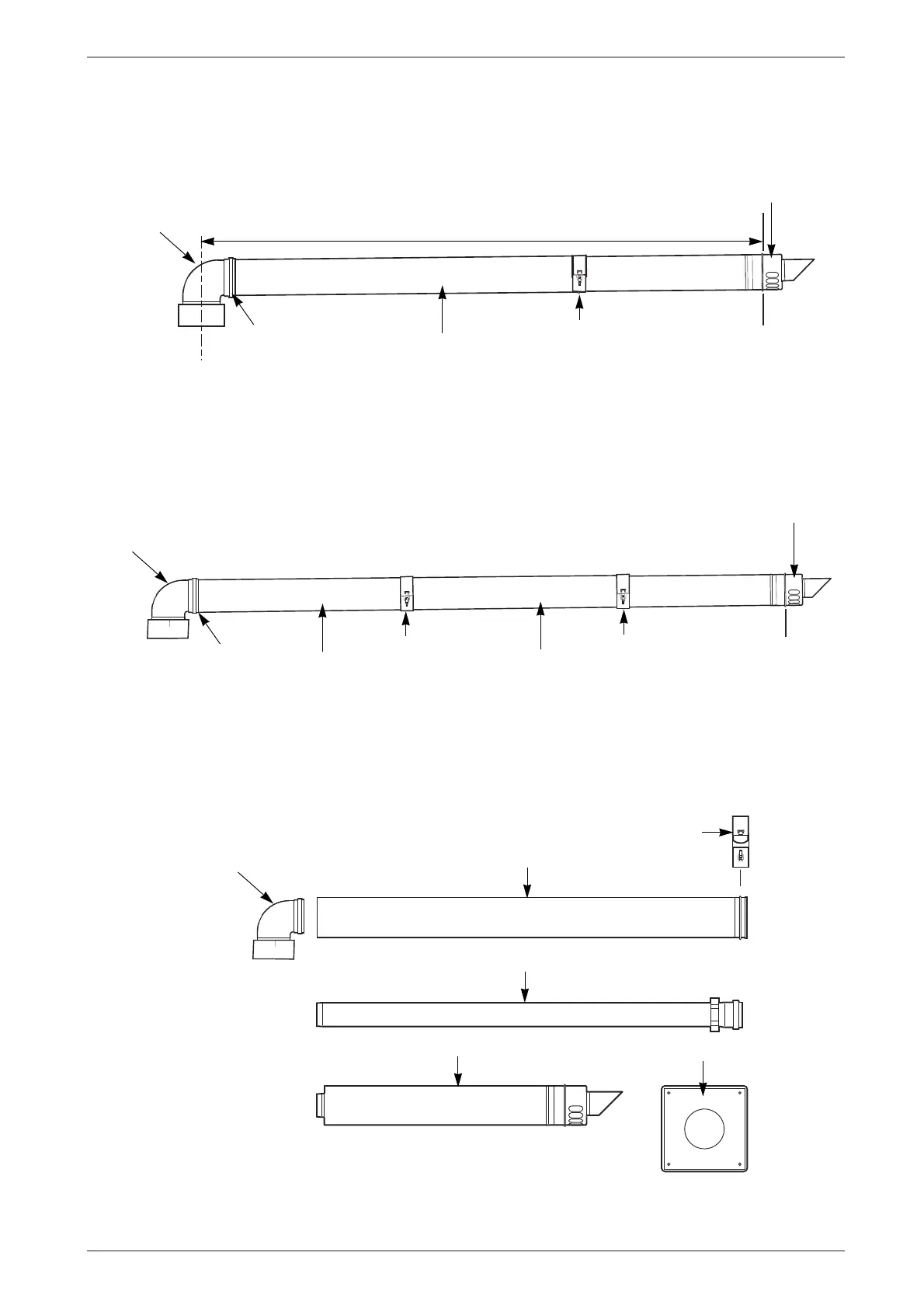

Fig. 18 Flue with one extension
Fig. 19 Flue with extensions
Fig. 20 Flue components
Maximum 1600mm
Flue
Turret
No
Clamp
Terminal
Assembly
Outer
Wall
Extension
Duct
6 720 610 602 - 09.1O
Clamp
Flue
Turret
No
Clamp
Clamp
Extension
Duct
Clamp
Extension
Duct
Terminal
Assembly
Outer
Wall
6 720 610 602 - 10.1O
Extension Air Duct
Extension Flue Duct
Terminal Assembly
Duct Clamp
Wall Sealing Plates
6 720 610 602 - 11.1O
Flue
Turret
