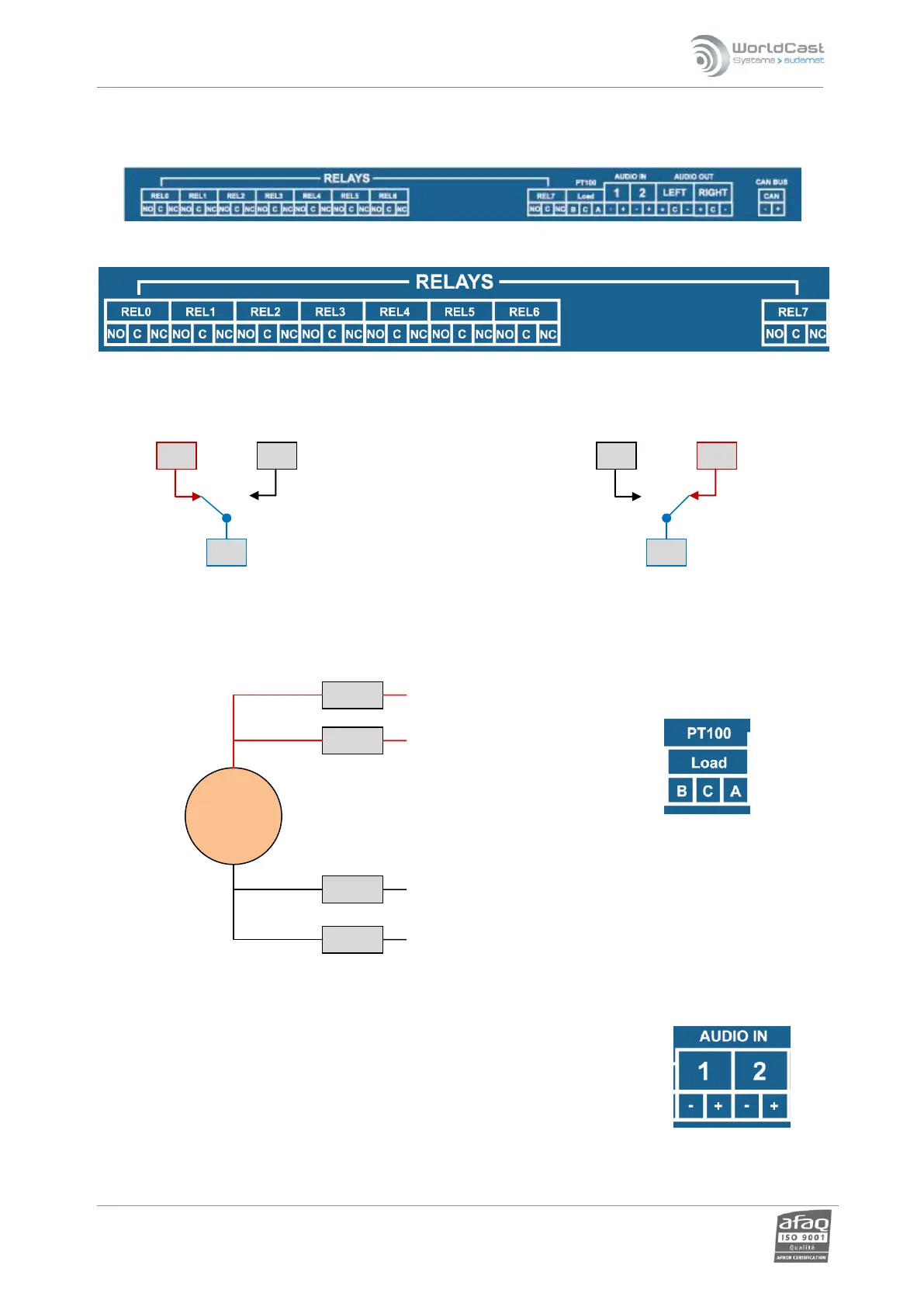

2.6. Bottom panel
 Please refer to the ScriptEasy manual for more information on I/O management.
2.6.1. Relays
To enable the relay by default, connect
the NO pin and the C pin:
To disable the relay by default, connect
the NC pin and the C pin:
2.6.2. PT100
Connection diagram of the PT100 probe:
2.6.3. Audio inputs
The “–“ is connected to the ground of the board.
The “+“ is connected to the signal.
Inputs are unbalanced.
Audio presence can be detected on these inputs.
C
NC
NO
C
NC
NO
PT100
probe
A
B
C
Not connected
red
red
white
white
