L9-S10
M9540Low Profile, WSM
ELECTRICAL SYSTEM

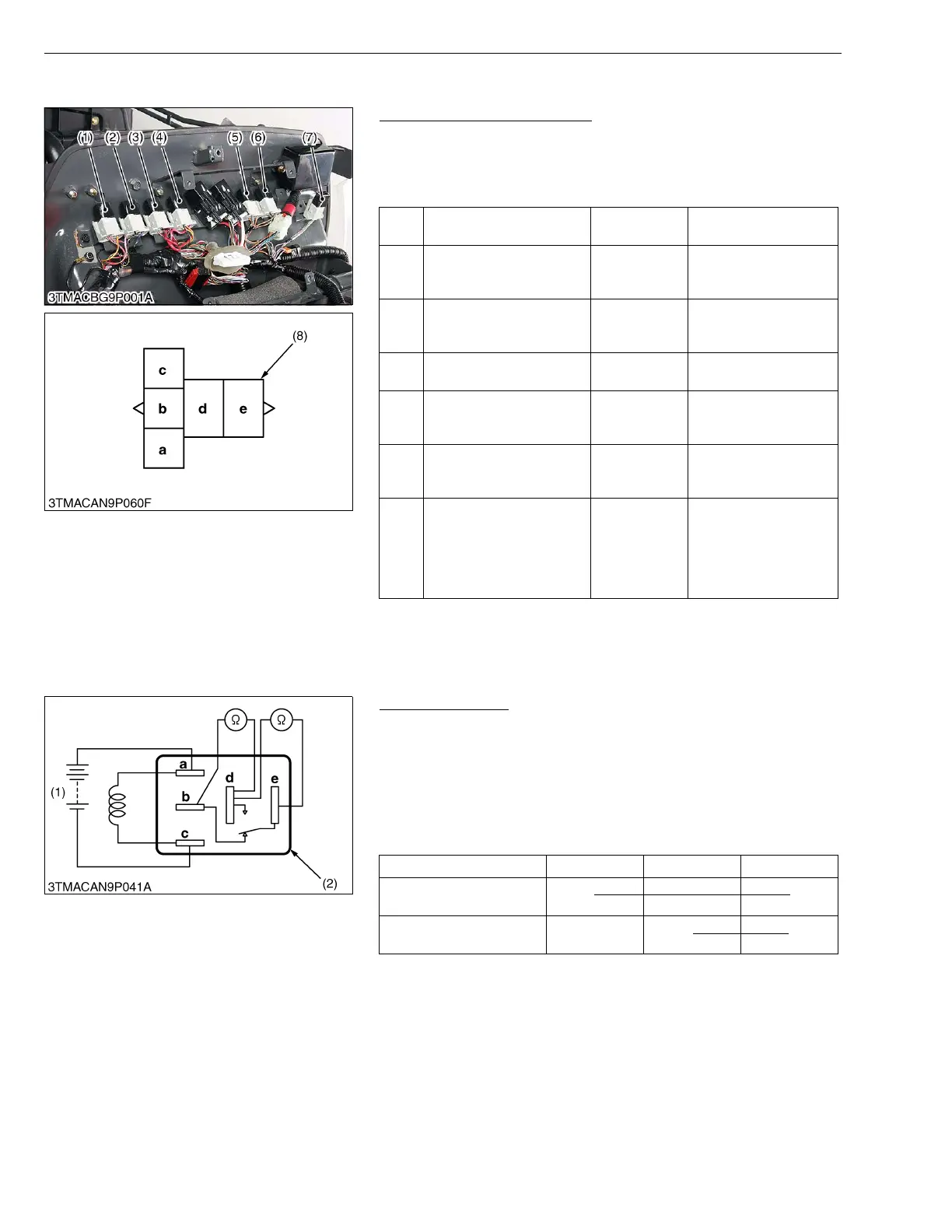

(2) Relays (PTO Safety, Key Stop, Work Light, Auxiliary Power and 4WD / Bi-speed Turn)
Checking Connector Voltage
1. Measure the voltage with a voltmeter across the battery terminal
and chassis as table below.
2. If the voltage differs from the battery voltage, the wiring harness
or fuse is faulty.
W1014836
Functional Check
NOTEQ
• The relays described here are used same ones so that these
are interchangeable.
1. Apply battery voltage across the terminals a and c, and check for
continuity across the terminals d and e.
2. If continuity is not established across terminals d and e, replace
it.
W1015402
(1)
Engine stop relay (main
switch at ON position)
Term in al c –
Chassis
Approx. battery voltage
(2)
PTO safety relay (main
switch at ON position and
PTO lever OFF position)
Term in al c –
Chassis
Approx. battery voltage
(3)
Work light relay (front)
(main switch at OFF
position)
Term in al e –
Chassis
Approx. battery voltage
(4)
Key stop relay (main
switch at OFF position)
Term in al e –
Chassis
Approx. battery voltage
(5)
Head light relay (low)
(main switch at OFF
position)
Term in al d –
Chassis
Approx. battery voltage
(6)
Head light relay (high)
(main switch at OFF
position)
Term in al d –
Chassis
Approx. battery voltage
(7)
4WD / Bi-speed turn relay
(main switch at ON, 4WD /
Bi-speed turn switch at bi-
speed position and turning
angle inspection switch at
ON)
Term in al c –
Chassis
Approx. battery voltage
(1) Engine Stop Relay
(2) PTO Safety Relay
(3) Work Light Relay (Front)
(4) Key Stop Relay
(5) Head Light Relay (Low)
(6) Head Light Relay (High)
(7) 4WD / Bi-speed Turn Relay
(8) Connector (Wire Harness)
bde
At 0 voltage between
terminal a and c
OO
At battery voltage between
terminal a and c
OO
(1) Battery (2) Connector (Relay)
