HYDRAULIC SYSTEM
3. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
(1) Position and Draft Control Linkage
Adjusting Position Control Rod and Draft Control Rod
1. Be sure to adjust the position control rod (1) length (L1) and draft
control rod (3) length (L2).
IMPORTANTQ
• Each draft control lever and position control lever should
contact with lever guide lowest position when operate the
position lever 1 (2) and draft lever 1 (4) to end of direction (a).
If not, adjust the position control rod (1) length (L1) and/or
draft control rod (3) length (L2).
[ROPS Model]
W1011113
Position control rod
length (L1)
Factory spec.
Approx. 160 mm
6.30 in.
Draft control rod length
(L2)
Factory spec.
Approx. 144 mm
5.67 in.

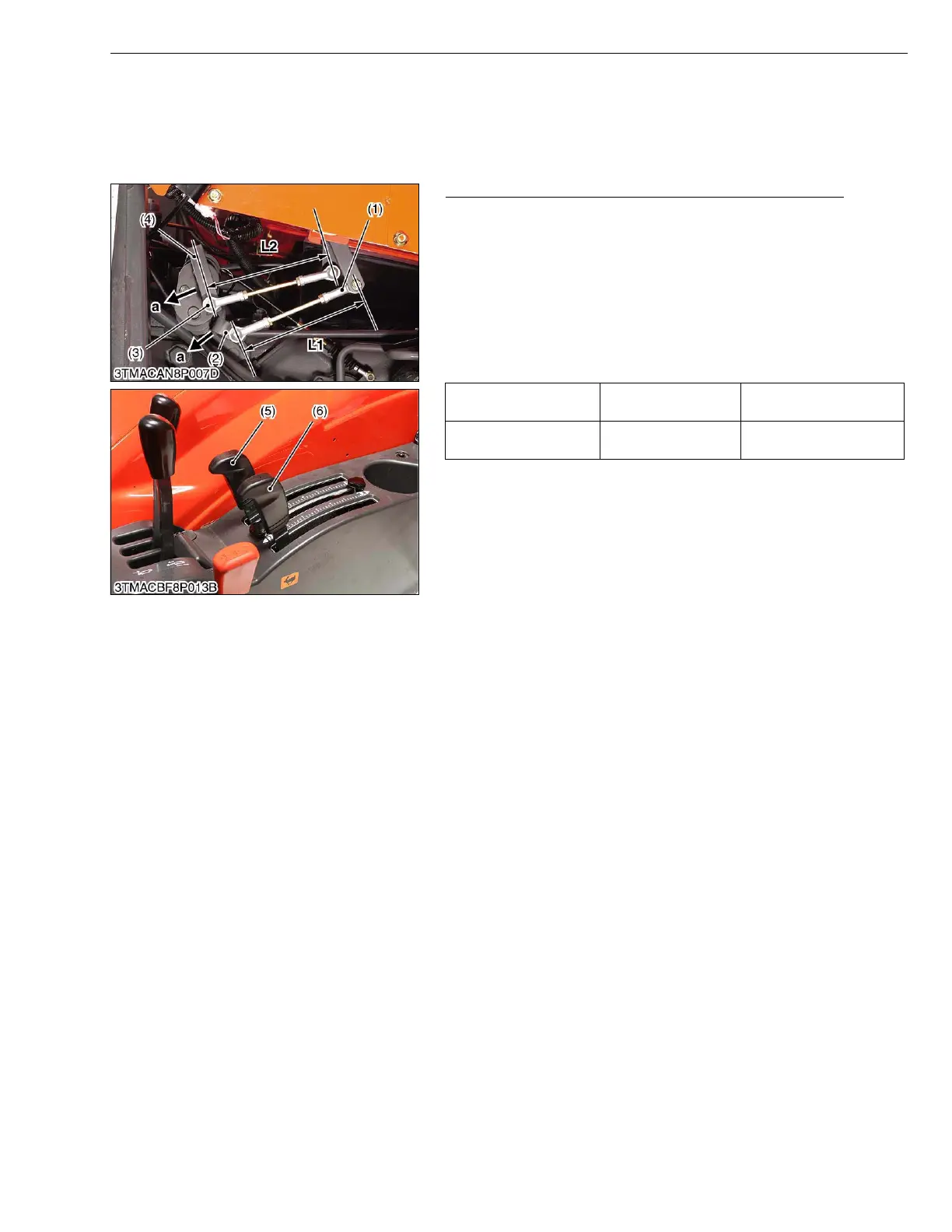

(1) Position Control Rod
(2) Position Lever 1
(3) Draft Control Rod
(4) Draft Lever 1
(5) Position Control Lever
(6) Draft Control Lever
L1 :Length of Position Control Rod
L2 :Length of Draft Control Rod
a : Direction for Lower
