L9-S11
M9540Low Profile, WSM
ELECTRICAL SYSTEM
(3) Solenoid Valve
Solenoid Valves
1) Connector Voltage
1. Remove the connector (2).
2. Set the 4WD/Bi-speed turn switch to bi-speed position.
3. Measure the voltage across the terminal 4 and chassis.
4. If the voltage differs from battery voltage, the wiring harness, fuse
or main switch is faulty.
2) Solenoid Valve
1. Disconnect the wire harness connector (2).
2. Measure the resistance with an ohmmeter across the each
terminal 4 on the connector (2) and chassis.
3. If infinity is indicated, the solenoid valve is faulty.
W1016001
Voltage Terminal 4 – Chassis Approx. battery voltage
Resistance
Solenoid valve 4
terminal to chassis
10 to 12 Ω

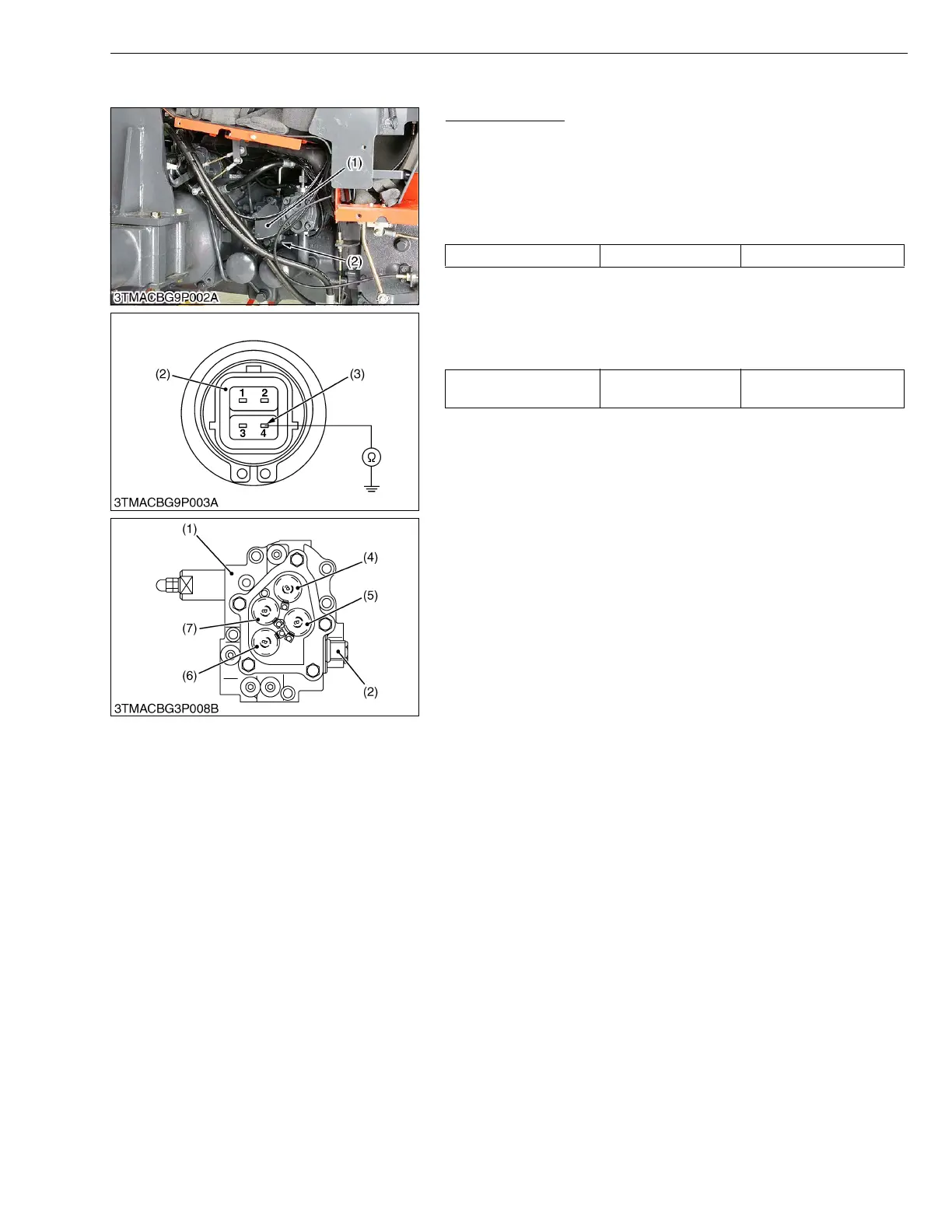

(1) Solenoid Valve Assembly
(2) Connector
(3) Terminal 4 for Bi-speed Turn
Solenoid Valve
(4) PTO Solenoid Valve
(5) Bi-speed Turn Solenoid Valve
(6) 4WD Solenoid Valve
(7) Rear Differential Lock Solenoid
Valve
To Next Page
