wsm m9540 - Disassembling and Assembling Hydraulic Shuttle Valve

L3-S4
M9540Low Profile, WSM
TRANSMISSION
3. DISASSEMBLING AND ASSEMBLING
[1] HYDRAULIC SHUTTLE VALVE

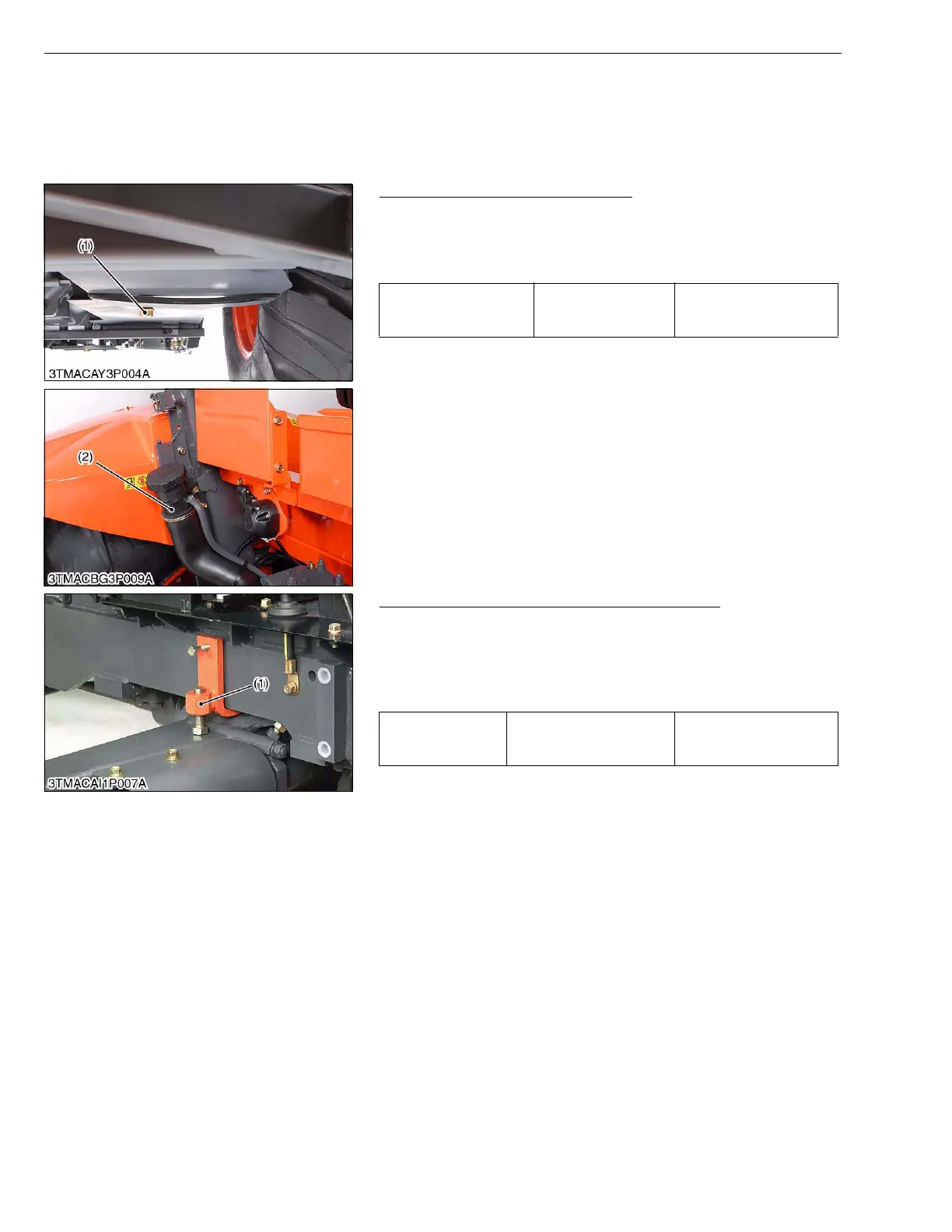

(1) Removing Fuel Tank
Draining Fuel and Fuel Filling Port
1. Place oil pans under the fuel tank.
2. Remove the drain plug (1) and drain the fuel.
3. Reinstall the drain plug (1) to the fuel tank.
4. Unscrew the fuel filling port fixing screw.
W1038723
Rear Wheel and Front Axle Rocking Restrictor
1. Place the disassembling stand under the transmission case.
2. Install the front axle rocking restrictor (1). (Refer to “8. SPECIAL
TOOLS” at “G.GENERAL” section.)
3. Remove the rear wheel.
(When reassembling)
W1041327
Fuel tank Capacity
90 L
23.8 U.S.gals
19.8 Imp.gals
(1) Fuel Tank (1) Fuel Filling Port
Tightening torque Rear wheel mounting nut
343.2 to 393.3 N·m
35.0 to 40.1 kgf·m
253.2 to 290.0 lbf·ft
(1) Front Axle Rocking Restrictor
KiSC issued 09, 2008 A
