[1] F18/R18 SPEED TRANSMISSION MODEL

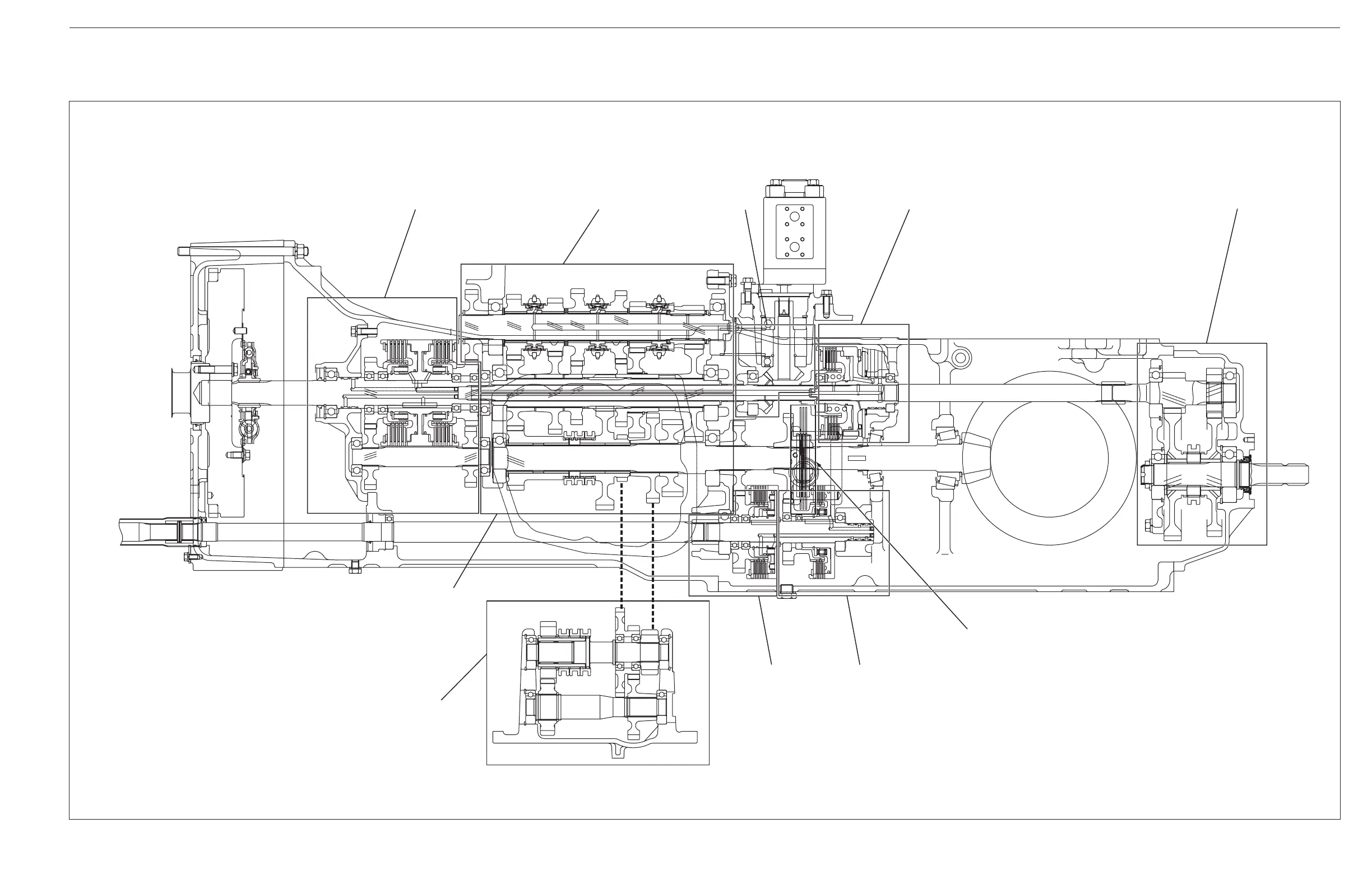

1. STRUCTURE
L3-M1
M9540Low Profile, WSM
TRANSMISSION
(1) Hydraulic Shuttle Section
(2) Main Gear Shift Section
(3) Hydraulic Pump Drive Section
(4) PTO Clutch Section
(5) PTO Gear Section
(6) Parking Brake Section
(7) Bi-Speed Section
(8) 2WD-4WD Section
(9) Creep Section
(10) Auxiliary Gear Shift Section
(10)
3TMACBG3P001A
(1) (2) (3) (4) (5)
(8) (7)
(9)
(6)
