L3-M5
M9540Low Profile, WSM
TRANSMISSION
(3) 4WD / Bi-speed Turn Oil Flow
Oil pressure-fed from the power steering hydraulic
pump is flowed to the solenoid valve assembly (6)
through the steering controller and oil cooler. The
system hydraulic pressure-fed to disengaged position for
2WD-4WD clutch (4) when 4WD / Bi-speed turn switch at
2WD position. As the 4WD (1) or Bi-speed turn (3) the
solenoid valve is electrified, the oil flow is switched and
either Bi-speed turn clutch or 4WD clutch is engaged.
When the Bi-speed turn solenoid valve (3) shift to Bi-
speed turn side, the 4WD priority valve (2) effect to
reduce the engagement shock of clutch pack.
The maximum pressure against the clutch piston is
regulated under approx. 2.45 MPa (25.0 kgf/cm
2
, 356
psi) by the relief valve of PTO clutch valve.
On the other hand, the return oil is flowed to the
transmission case through the solenoid valve assembly
(7).
W1014207

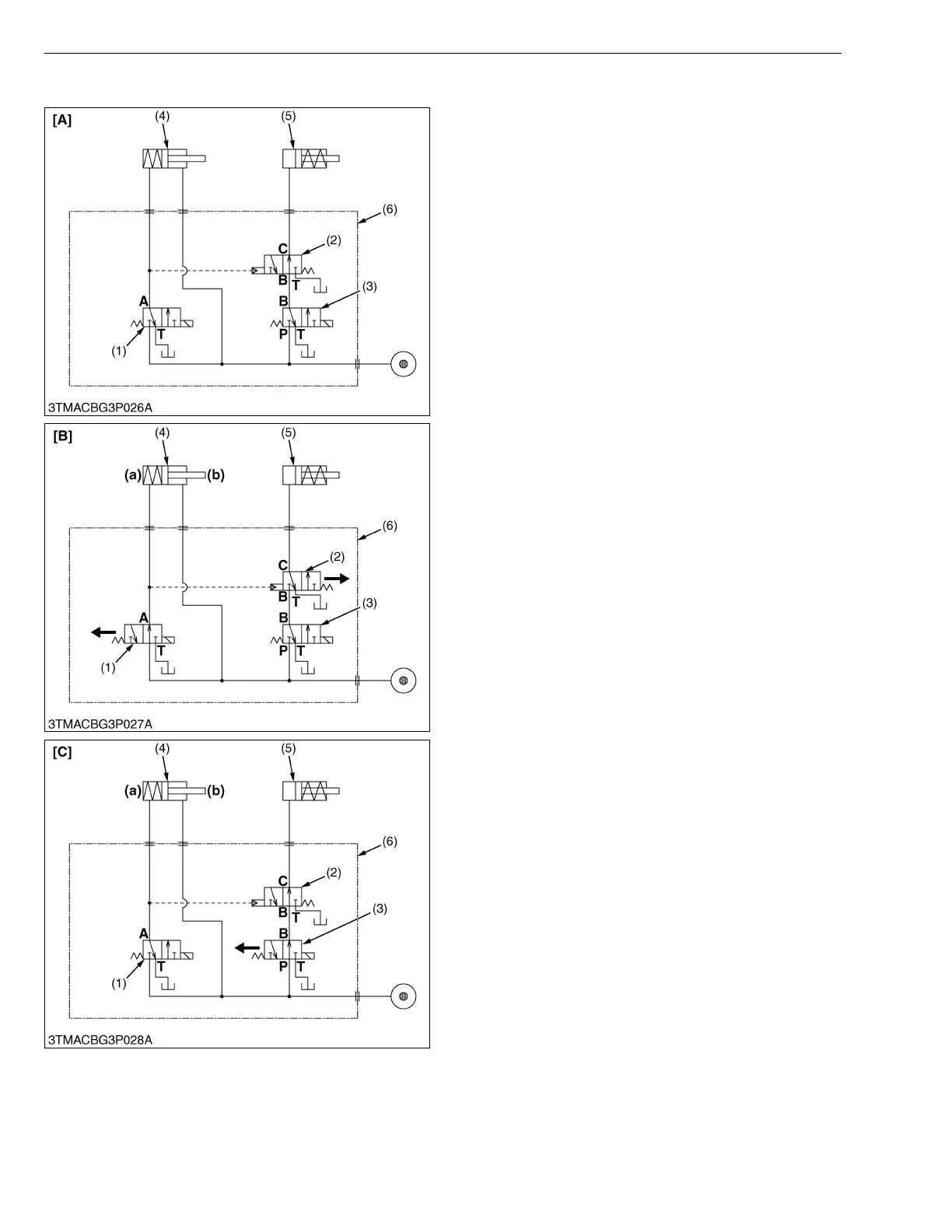

(1) 4WD Solenoid Valve
(2) 4WD Priority Valve
(3) Bi-speed Solenoid Valve
(4) 2WD-4WD Clutch
(5) Bi-speed Turn Clutch
(6) Solenoid Valve Assembly
(a) 4WD Side
(b) 2WD Side
A : 4WD Port
B : Bi-speed Turn Port
[A] 2WD
[B] 4WD
[C] Bi-speed Turn (4WD)
P : From Power Steering Pump
T : To Tank
To Next Page
