wsm m9540 - 4 WD Clutch Pack and Bi-Speed Turn Clutch Pack

L3-S9
M9540Low Profile, WSM
TRANSMISSION
[3] 4WD CLUTCH PACK AND BI-SPEED TURN CLUTCH PACK

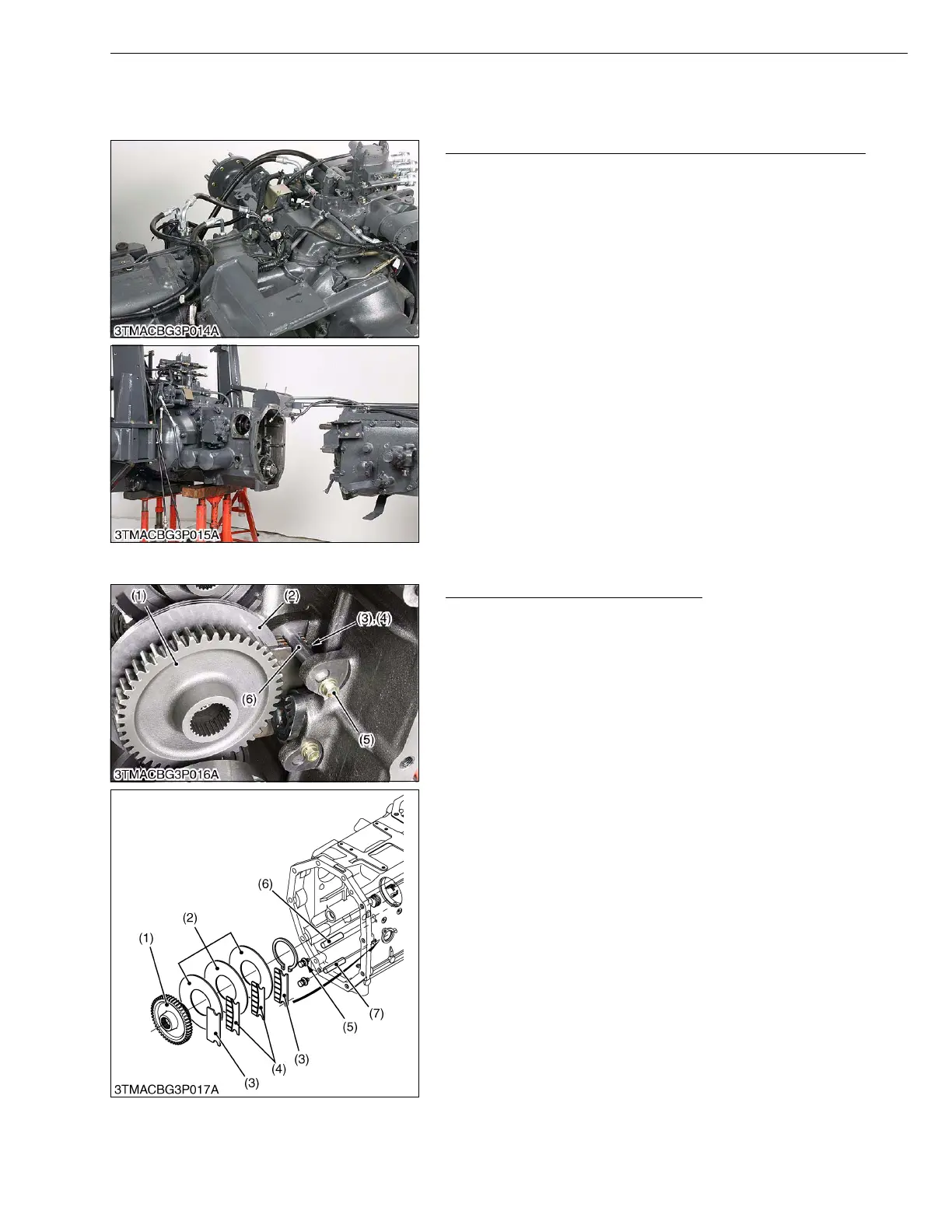

(1) Separating Transmission Case and Clutch Housing Case
Separating Transmission Case and Clutch Housing Case
1. Remove the hydraulic hoses and hydraulic brake pipes.
2. Refer to the “Disassembling and Assembling” section at “3.
TRANSMISSION”.
W1014059
(2) 4WD Clutch Pack and Bi-Speed Turn Clutch Pack
Parking Brake Disc and Steel Plate
1. Remove the stopper screw (5) and upper pin (6).
2. Remove the disc (3) and (4).
3. Remove the 47T gear (1) with steel plates (2).
(When reassembling)
• Be sure to assemble the disc (3) and (4) to the original position
as shown fig.
W1014172
(1) 47T Gear
(2) Steel Plate
(3) Disc (5.1 mm, 0.20 in.)
(4) Disc (2.8 mm, 0.11 in.)
(5) Stopper Screw
(6) Upper Pin
(7) Lower Pin
KiSC issued 09, 2008 A
