L3-S8
M9540Low Profile, WSM
TRANSMISSION

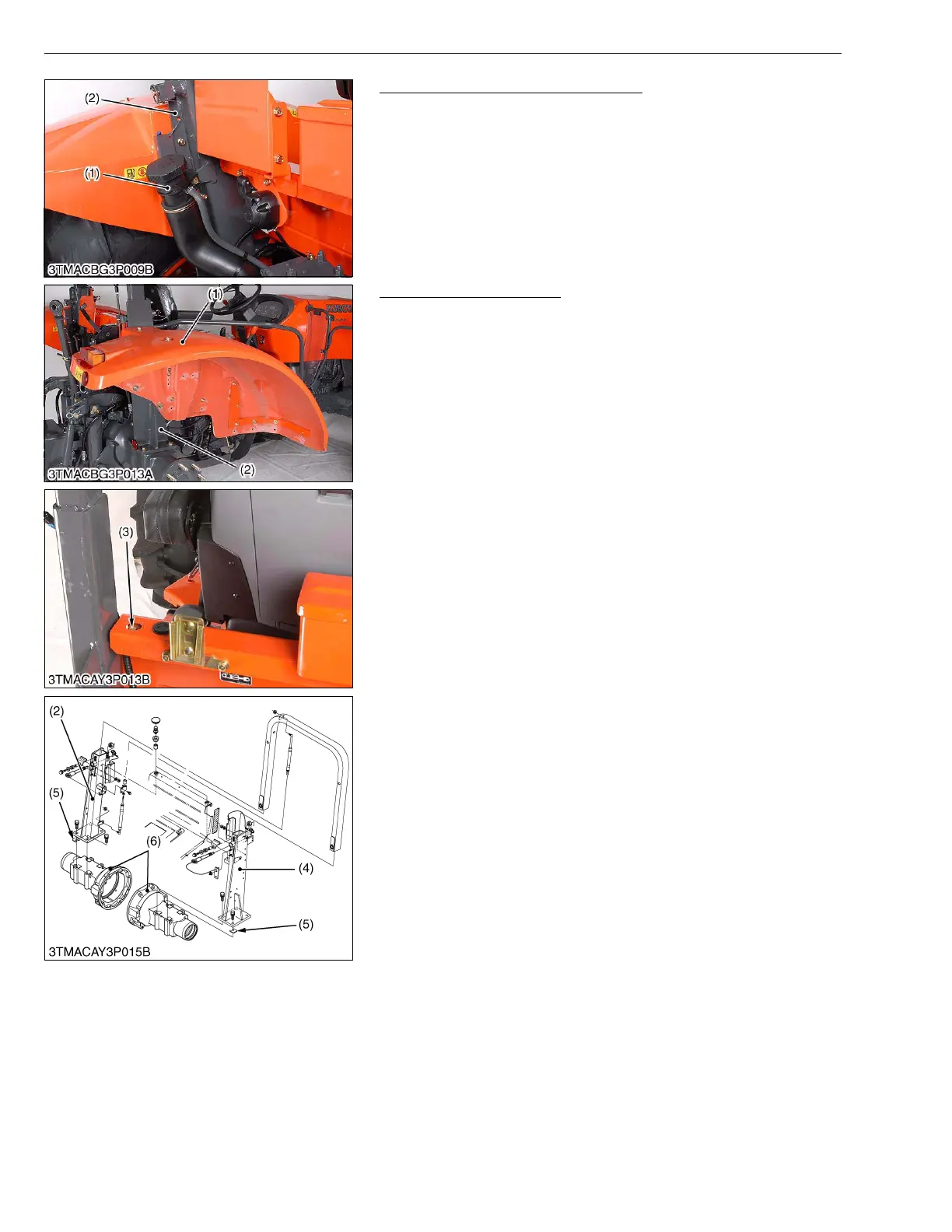

Fuel Filling Port and Harness Cover
1. Unscrew the fuel filling port (1) fixing screw.
2. Remove the harness cover (2) both L.H. and R.H. side.
W1013126
Fender and ROPS Under
1. Remove the both fenders (1).
2. Remove the screw (3) for both side then take out the ROPS
under L.H. (4) and R.H. (2).
(When reassembling)
• Be sure to assemble the fender to the original height.
• If the adjusting shim (5) uses between the ROPS under and rear
axle case, assemble the shim to the original position.
• Be sure to check the ROPS slides smoothly, after assembling. If
ROPS does not slide smoothly, adjust with shim (5).
W1013188
(1) Fuel Filling Port (2) Harness Cover
(1) Fender L.H.
(2) ROPS Under R.H.
(3) Screw
(4) ROPS Under L.H.
(5) Shim
(6) Rear Axle Case
To Next Page
