L3-S10
M9540Low Profile, WSM
TRANSMISSION
Hydraulic Pack Assembly

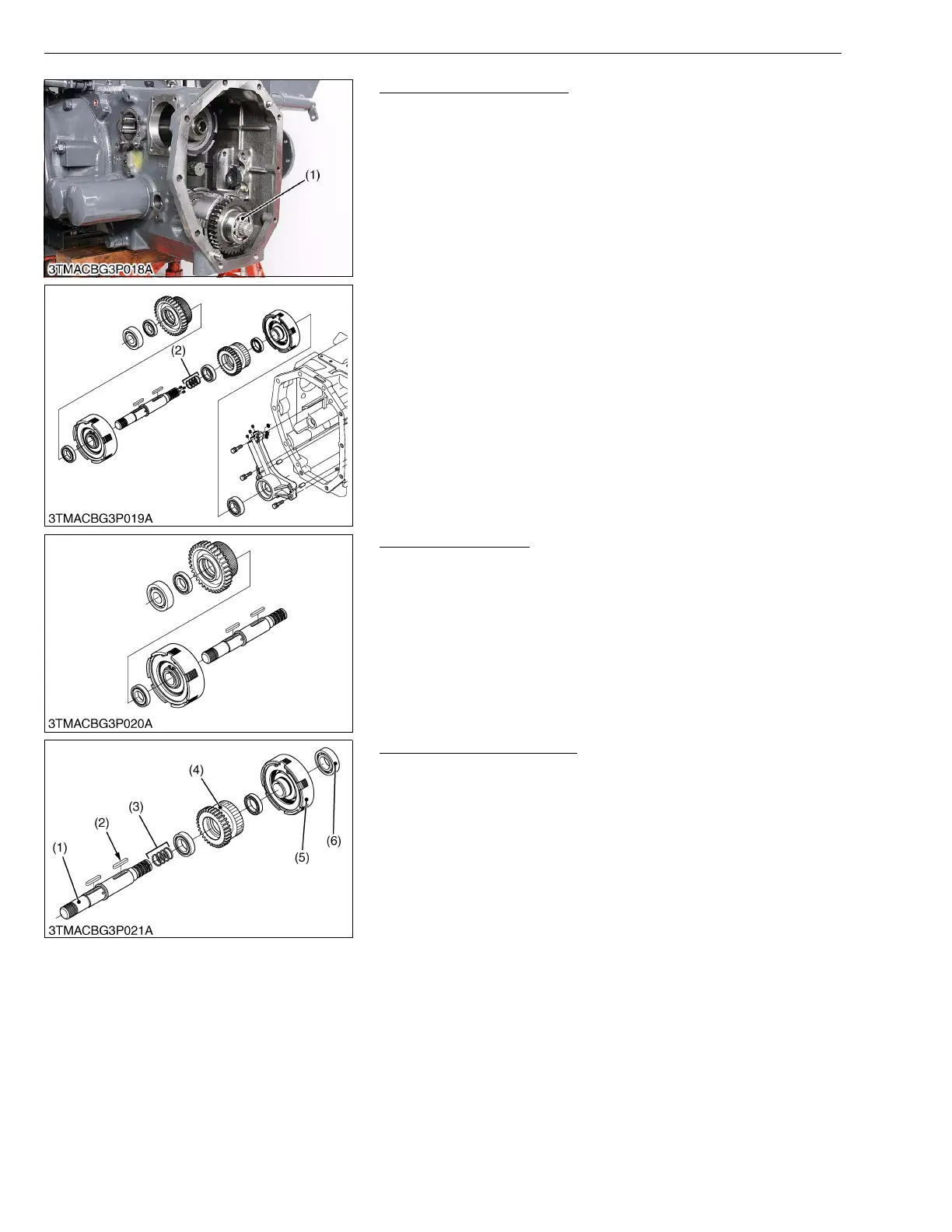

1. Remove the hydraulic pack assembly (1).
(When reassembling)
• Replace the seal rings (2) with new one, if they have deformed or
any damages.
• Apply grease to the seal ring (2).
W1014413
4WD Hydraulic Pack
1. Refer to the “DISASSEMBLING AND ASSEMBLING” at “3.
TRANSMISSION”.
W1014706
Bi-speed Turn Clutch Pack
1. Remove the seal rings (3) and bearing (6) from the 4WD shaft
(1).
2. Remove the Bi-speed turn clutch pack (5).
3. Remove the 33T gear (4), after removing the key (2).
W1014782
(1) Hydraulic Pack Assembly (2) Seal Ring
To Next Page
