L3-S5
M9540Low Profile, WSM
TRANSMISSION

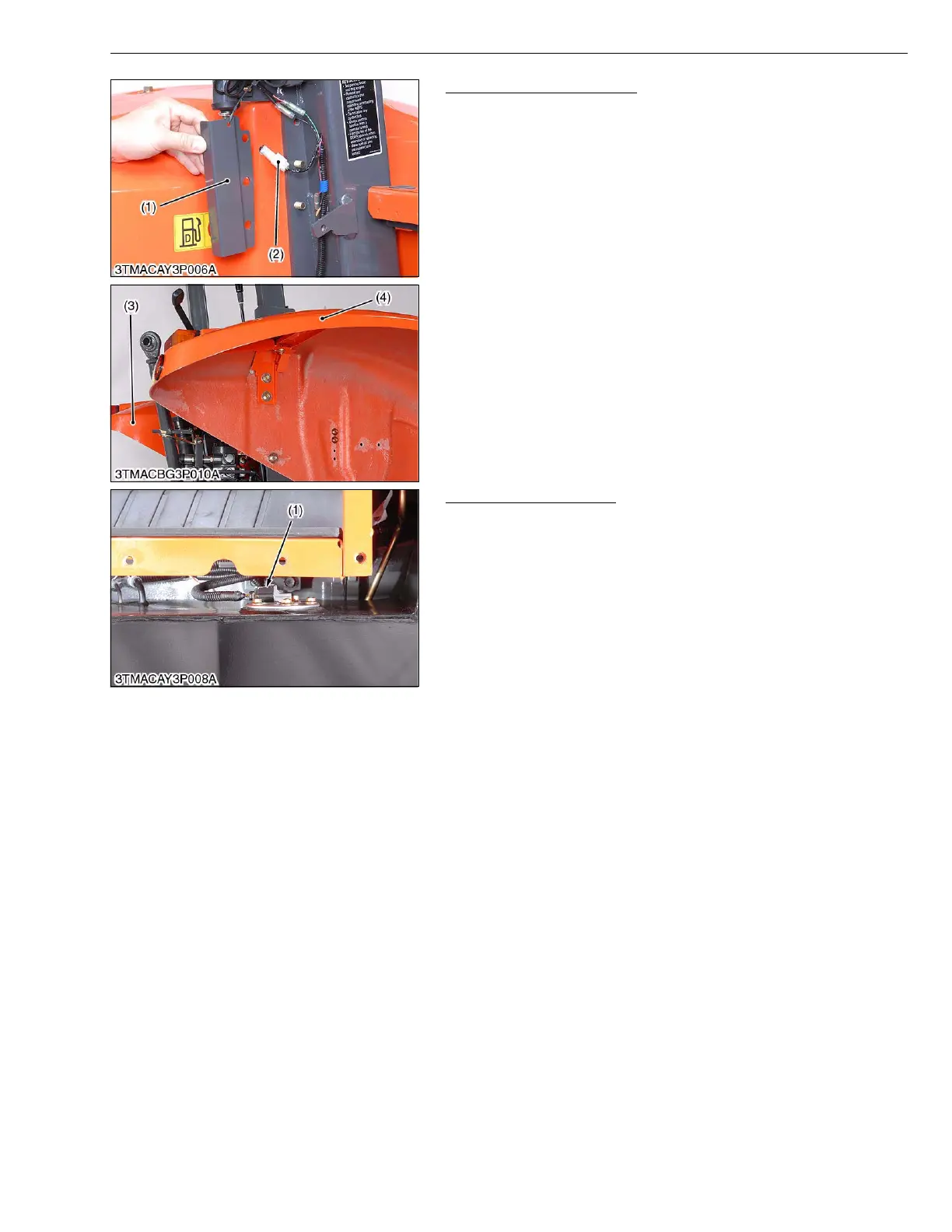

Fender and Auxiliary Step
1. Remove the harness cover (1) and disconnect the 4P connector
(2).
2. Remove the fender (3), (4) and auxiliary step.
(When reassembling)
• Be sure to assemble the fender to the original height.
W1011951
Fuel Sensor Connector
1. Remove the fuel sensor 2P connector (1).
(When reassembling)
• Be sure to connect the fuel sensor connector.
W1039151
(1) Harness Cover
(2) 4P Connector
(3) Fender L.H.
(4) Fender R.H.
(1) Fuel Sensor 2P Connector
To Next Page
