L3-S6
M9540Low Profile, WSM
TRANSMISSION

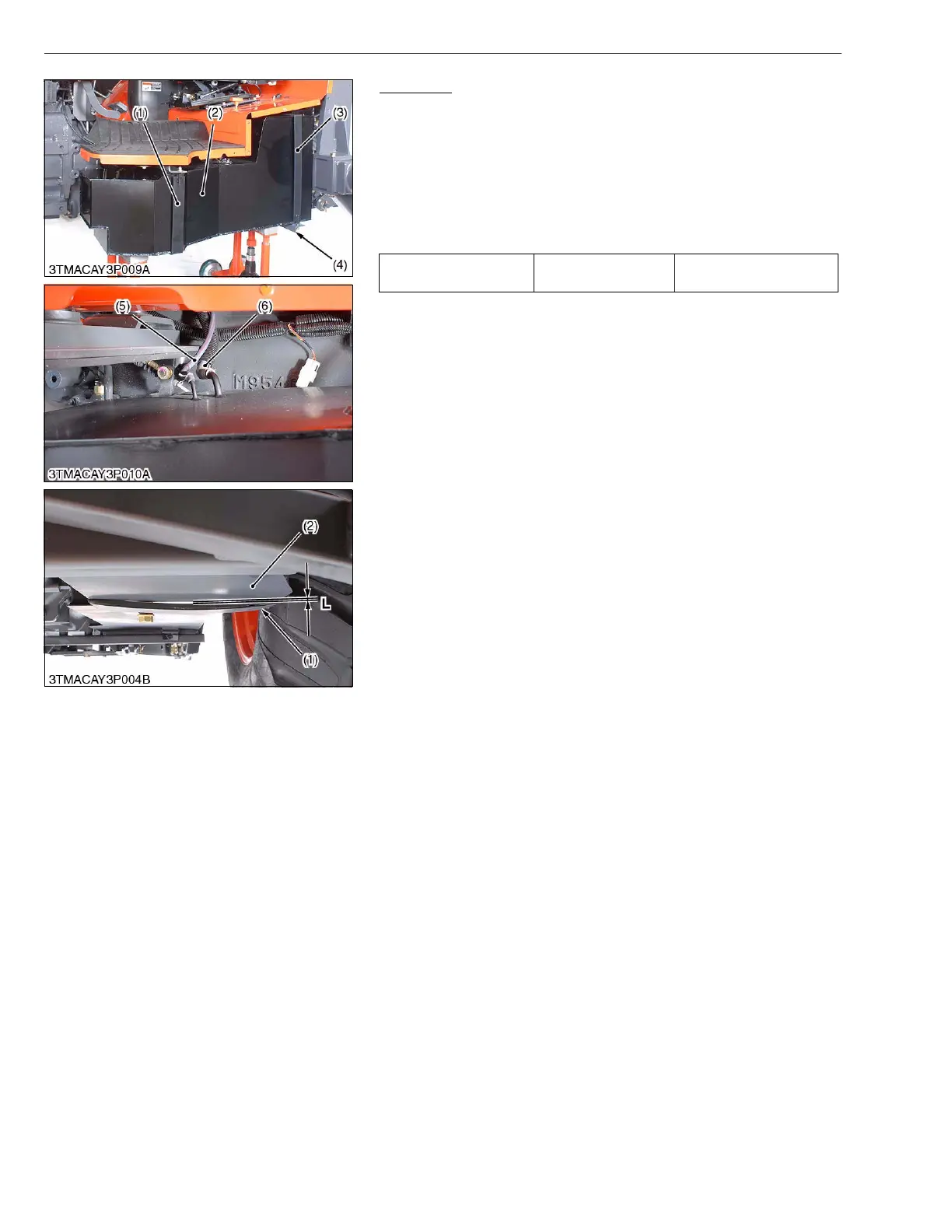

Fuel Tank
1. Place the disassembling stand under the fuel tank (2).
2. Remove the fuel tank band (1) and (3).
3. Remove the fuel tank stay (4).
4. Lower the fuel tank (2) to disconnect the fuel hose (5) and (6).
5. Remove the fuel tank (2).
(When reassembling)
• Tighten the fuel tank band so that the clearance L between the
fuel tank and fuel tank band become as follow.
W1012313
Clearance between fuel
tank and fuel tank band
Factory spec.
2.0 to 4.0 mm
0.079 to 0.16 in.
(1) Fuel Tank Band
(2) Fuel Tank
(3) Fuel Tank Band
(4) Fuel Tank Stay
(5) Fuel Hose (Return)
(6) Fuel Hose
L : Clearance
