Xantrex Freedom XC 2000 User Manual

AC/DC and GFCI Panel
8 Freedom XC Owner's Guide
AC/DC and GFCI Panel
6
321
7
14 13
12
13
8
11
910
4
5
5
12

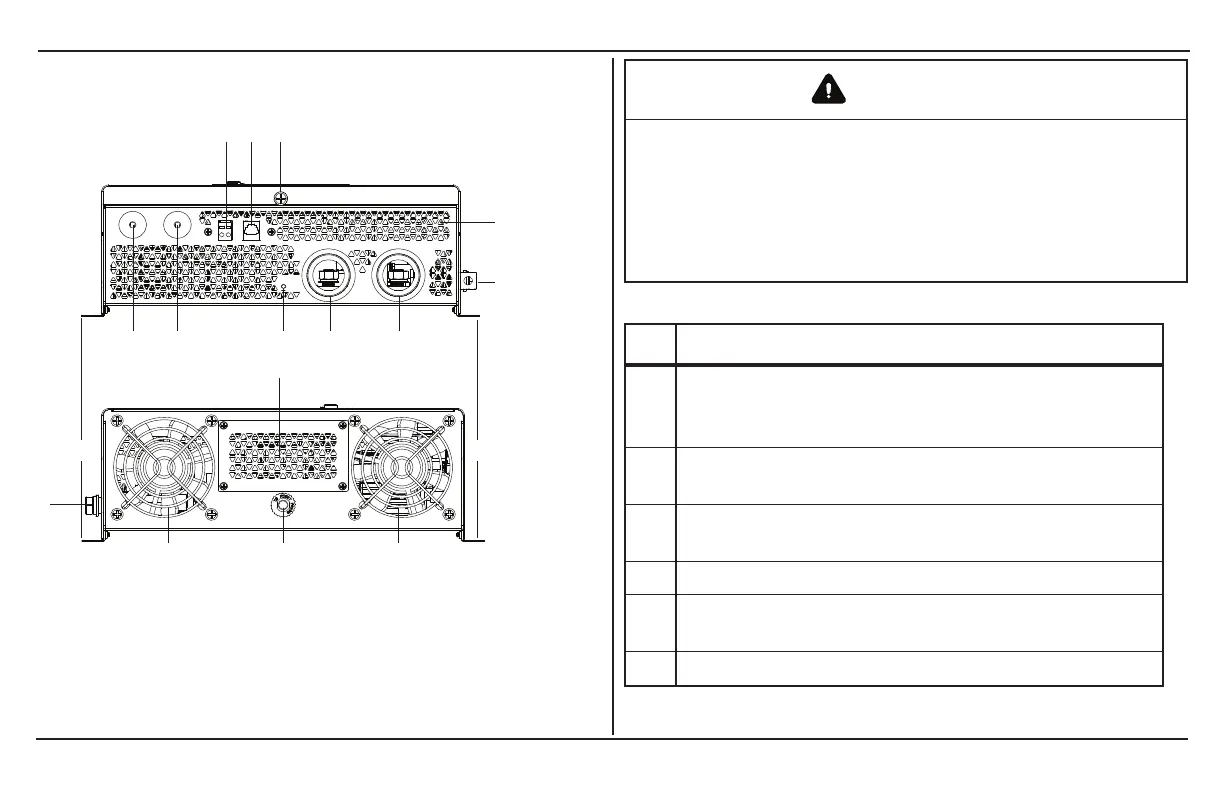

Figure 2 AC/DC and GFCI Panel
WARNING
ELECTRICAL SHOCK HAZARD
Use a torque screwdriver to tighten the captive nut panel screw to
5in-lb (0.56N-m) torque of force to ensure a proper ground
connection and a required tool access to the wiring compartment.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
Item Description
1
ACC input terminal for connecting ignition control wiring.
Ignition Control Switch (ACC) for connecting [ON (|)] and
disconnecting [OFF (O)] the ignition signal.
2
Remote port allows you to connect an accessory remote
control/display device.
3
Captive nut panel screw holds the wiring compartment
cover in place. See WARNING above.
4 Ventilation grille (openings) must not be obstructed.
5
Grounding lug provides a ground path for the Freedom
XC chassis to the DC system ground. See WARNING.
6 DC terminal opening for routing (–) negative DC cable.
Table 1AC/DC and GFCI Panel Features

Xantrex Freedom XC 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Waveform	Pure Sine Wave
Efficiency	90%
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Transfer Time	20ms
