Viewing Information During Grid
Mode
1. The LCD screen displays information related to AC bypass
or charger operation.
2.
Press the Scroll button to move from screen to screen.
3.
Press to return to the home screen.
NOTE: After one minute of inactivity in the other screens, the
LCD will go back to the home screen.
Info and
Setting
LCD Screen

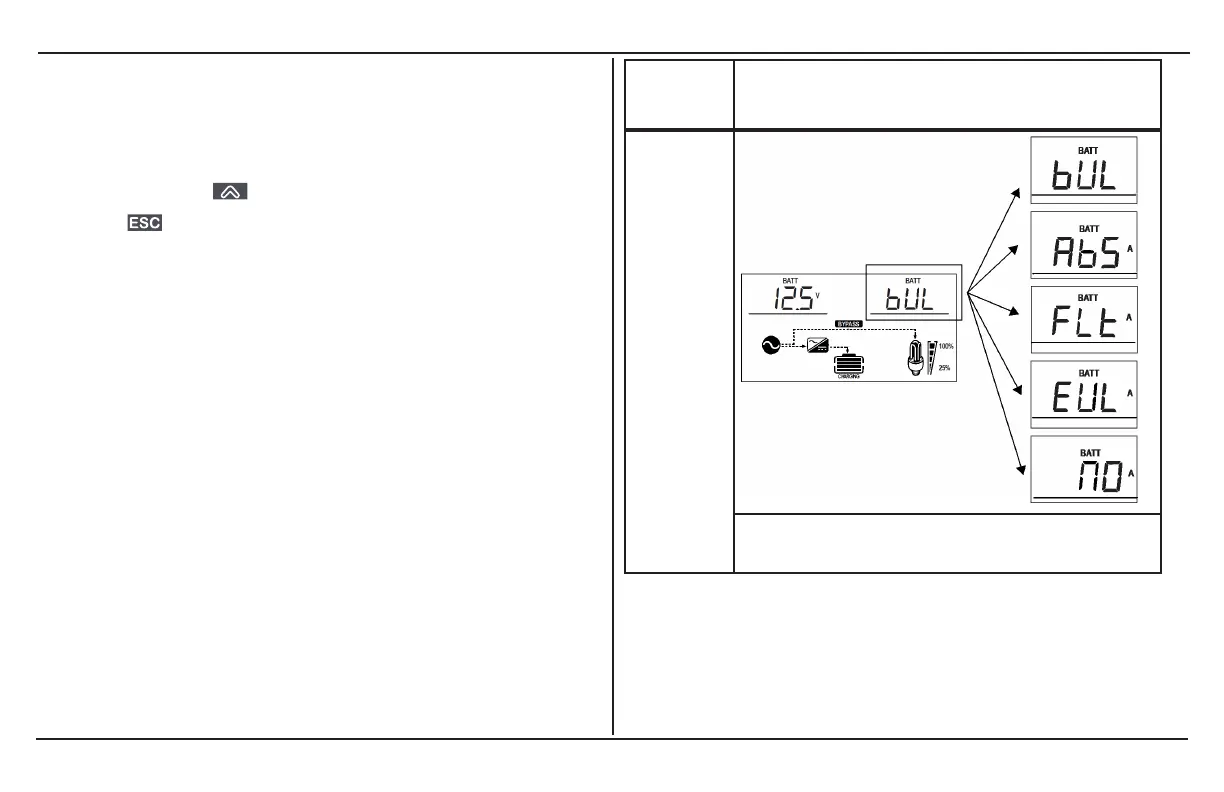

Screen 1 of
5 - Battery
Voltage/
Charging
Stage
This is the
home
screen.
battery voltage = 12.5V, charging stages = bulk,
absorption, float, equalization, and no charging
To Next Page
