Xantrex Freedom XC 2000 User Manual

Display Panel
10 Freedom XC Owner's Guide
Display Panel
OUTPUTBATTLOAD
kW
100%
25%
Hz
VA
%
kW
Hz
VA
%
C
INPUTBATTTEMP
AC
BYPASS
ERROR
OVERLOAD
CHARGING
888 888
88
1
2 3 4
5

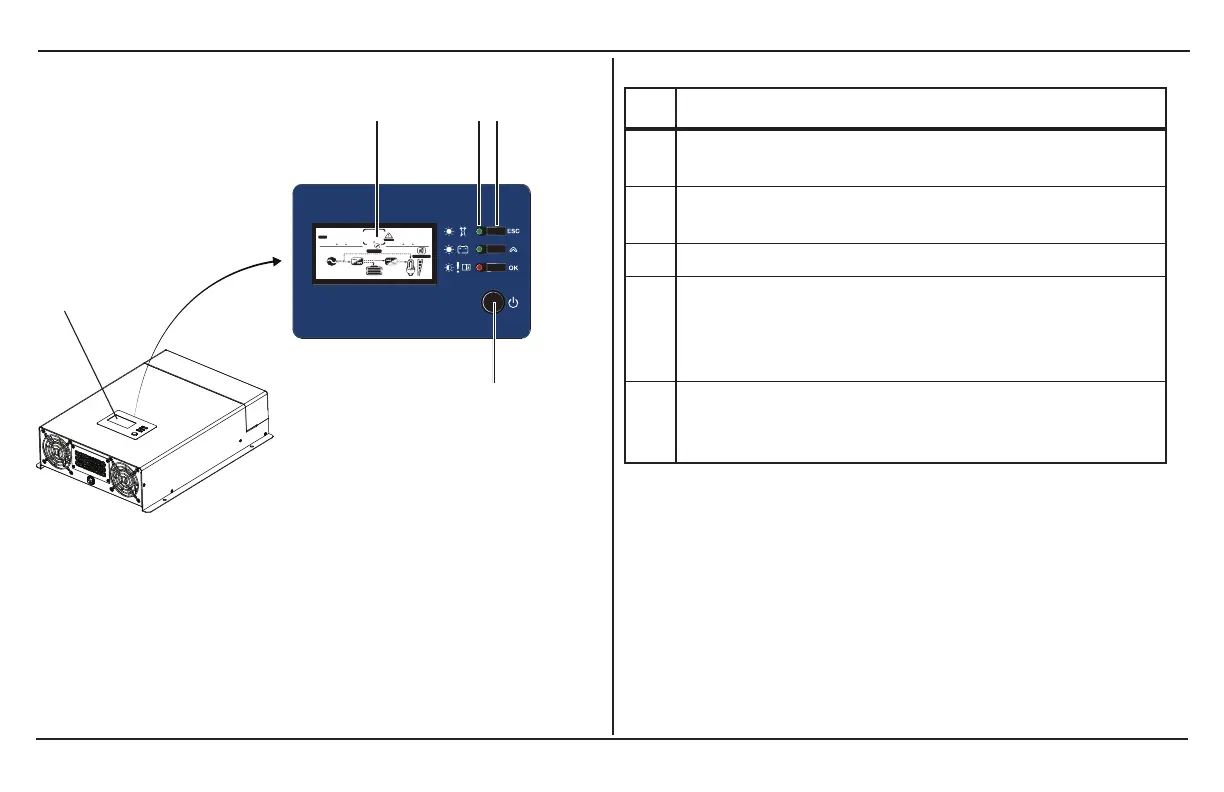

Figure 3 Display Panel
Item Description
1
Display panel displays status information on the screen. It
is comprised of a display screen, LEDs, and buttons.
2
Multi-function LCD screen shows status information and
error codes.
3 Status LEDs indicate the mode of operation.
4
Three function buttons change status information
displayed on the screen. Also, changes inverter/charger
settings. See Freedom XCDisplay Panel on page 44 for
detailed information on the panel’s buttons.
5
Power[Standby]button is pressed for turning on the unit.
The inverter turns on for the loads and when applicable,
the charger turns on automatically.
Table 2Display Panel Features

Xantrex Freedom XC 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Waveform	Pure Sine Wave
Efficiency	90%
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Transfer Time	20ms
