Xantrex Freedom XC 2000 User Manual

Marine Installation
975-0784-01-01 41
Marine Installation
Figure 13 illustrates a typical marine installation with the following
components:
1 Equipment ground – Engine negative bus / DC ground bus
2 Freedom XC
3 DC fuse/disconnect/DC circuit breaker
4
12V deep cycle battery bank (house) and protected by a DC fuse in the
positive cable
5 Battery isolator
6 DC alternator
7 To engine
8 Equipment ground – Engine negative bus / DC ground bus
9 Starting battery
10
AC load panel with branch circuit breakers that supply only loads that run
off the Freedom XC
11
AC source panel that includes a max 30A (or a 15A if using a GFCI) circuit
breaker that supplies the Freedom XC
12 Shore power – AC power supplied from a shore power connector
Not
shown
Drip shield (see next page)

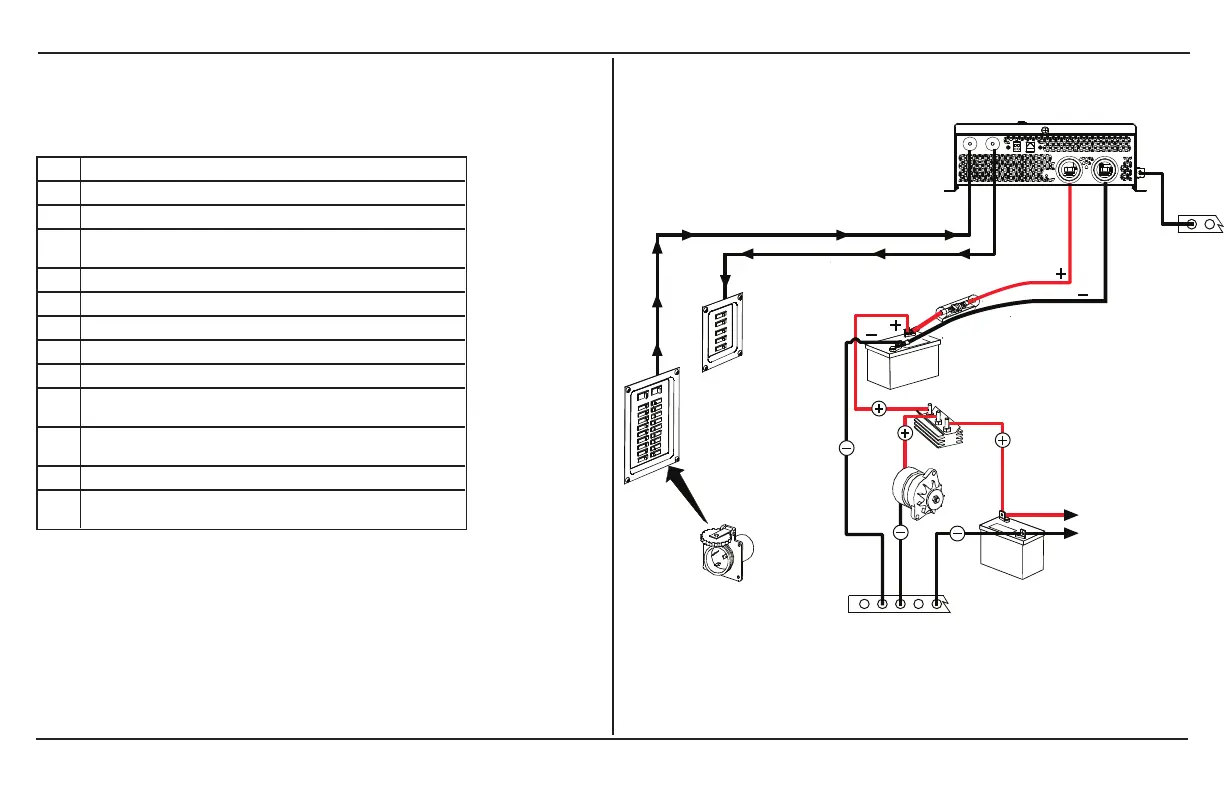

Figure 13 Typical Marine Installation
10
12
11
2
4
3
9
7
8
6
5
1

Xantrex Freedom XC 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Waveform	Pure Sine Wave
Efficiency	90%
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Transfer Time	20ms
