Installation
3–28 976-0043-01-02
Accessing the AC Terminal Block and Ground Bar
All AC wiring connects to the AC terminal block located on the left-hand
side of the inverter beneath the AC access cover.
To remove the AC access cover:
1. Remove the Phillips screw from above the access cover. Place the
loose screw somewhere safe where it will not be lost.
2. Slide the access cover off of the front panel.
To replace the AC access cover:
1. Slide the access cover back into place.
2. Replace the Phillips screw that was removed and tighten into place.
Be sure not to over-tighten this screw.

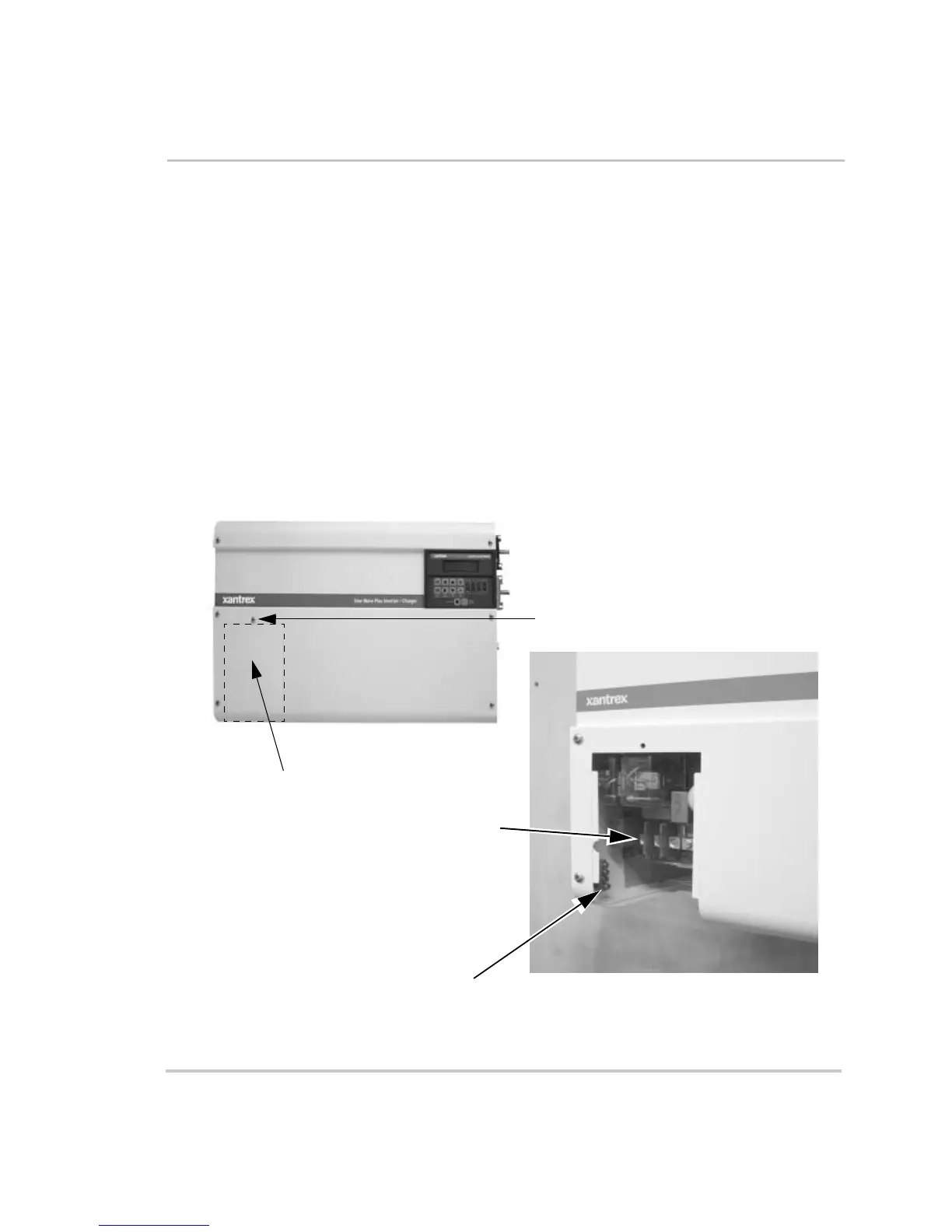

The following photograph show the AC terminal block and AC ground
bar located beneath the AC access cover.
Figure 3-15
AC Wiring Access Cover Plate
AC Access Cover
Remove this screw to remove
the AC Access cover.
AC Ground Bar
AC Terminal Block
