Operational Status Indicators
976-0043-01-02 8–7
Operational Status Indication (Red and Yellow)
There are two LEDs for Error and Status Indications:
• ERROR LED (red)
• STATUS LED (yellow)
ERROR LED (Red) The ERROR LED indicates an operating error occurred or an error
condition exists. Select Menu Heading 05 Error Causes to determine
which error condition has occurred.
Error conditions include:
• Over-current (menu item 05A)
• Transformer Over-temp (menu item 05B)
• Heatsink Over-temp (menu item 05C)
• Low Battery Voltage (menu item 05D)
• High Battery Voltage (menu item 05E)
• External Error (Stacked) (menu item 05F)
• Input Relay Failure (menu item 05G)
• Gen Failed to Start (menu item 05H)
• Gen Stopped due to Voltage or Frequency (menu item 05I)
For a complete description of the Error Menus, see “05 Error Causes
Menu” on page 8–25.

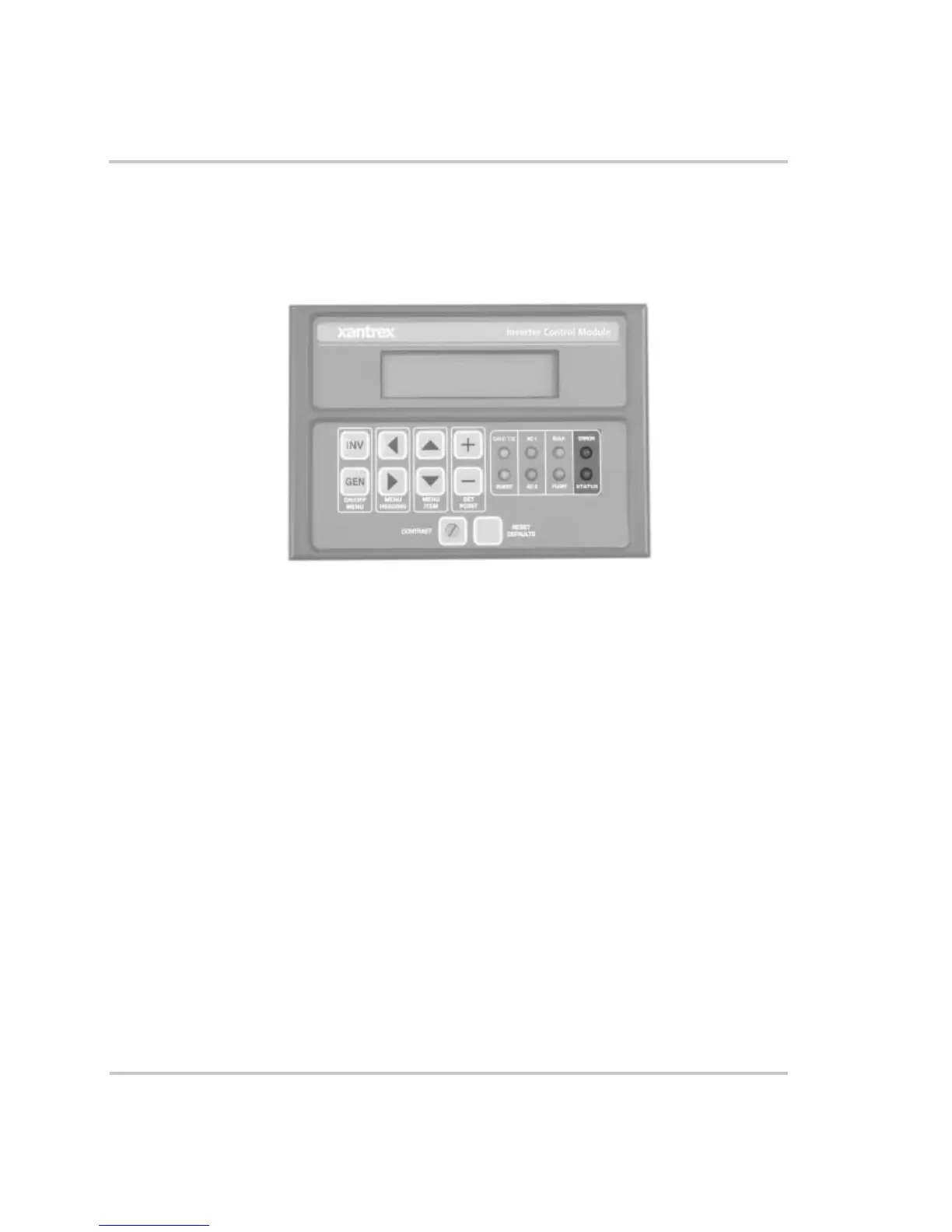

Figure 8-5
Error and Status LEDs
