DC Side
The DC side of the Sine Wave Plus has the following features:
• the positive (+) battery terminal
• the negative (–) battery terminal
• the battery temperature sensor port
• the chassis ground lug

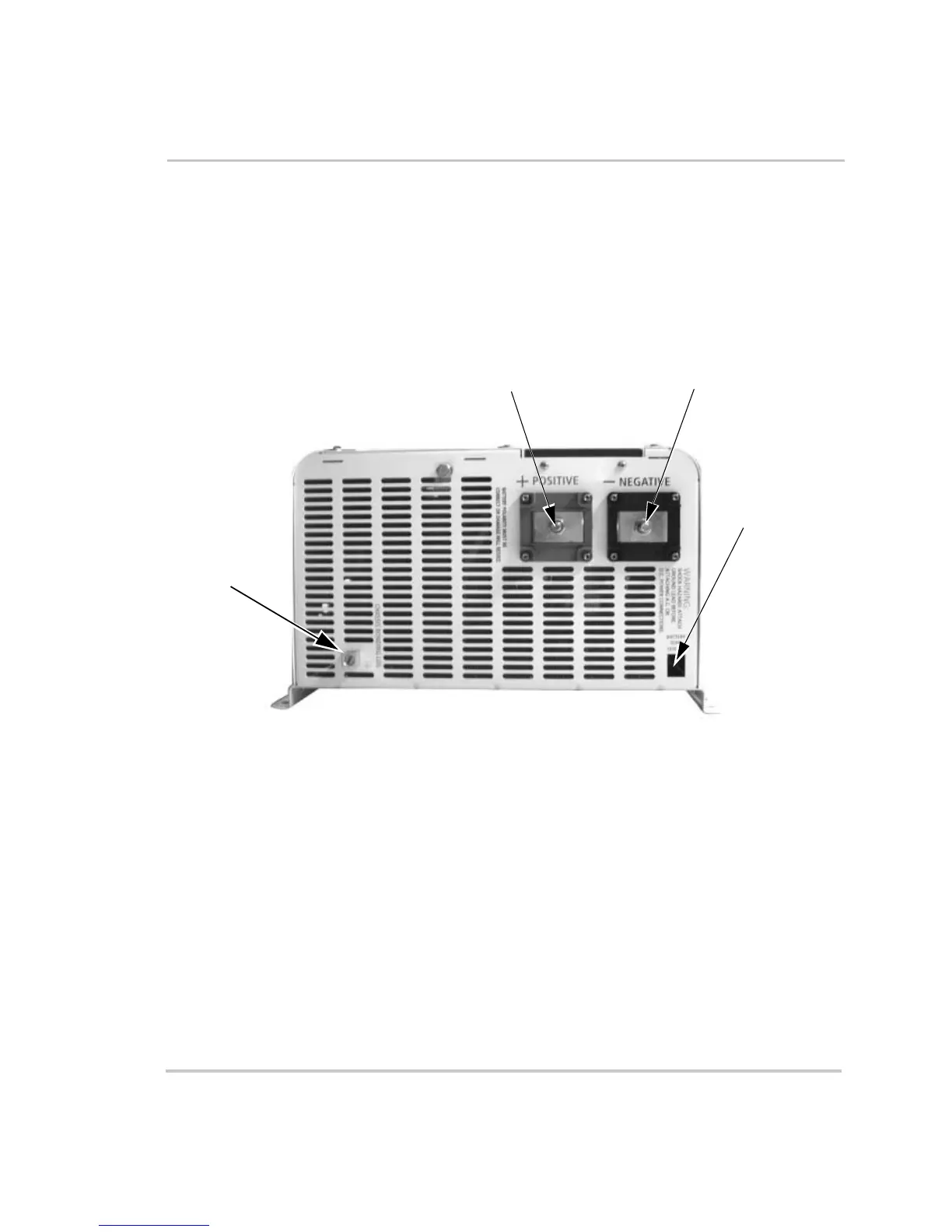

Figure 1-5 The DC side of the Sine Wave Plus
Positive (+)
Battery Terminal
Negative (–)
Battery Terminal
Chassis
Ground
Lug
Battery
Temperature
Sensor
