Additional/Optional Equipment Considerations
976-0043-01-02 2–27
Inverter Control Module (ICM)
The remote ICM allows control, monitoring, and adjustment of all
inverter settings from a location other than the ICM display on the front of
the inverter. The remote ICM comes with cables in lengths of 25 feet (7.5
meters) or 50 feet (15 meters). The remote ICM duplicates all the
functions and controls of the ICM display on the front panel of the unit.
For distances greater than 50 feet (15 meters), see the Inverter
Communications Adapter (ICA).
Inverter Communications Adapter (ICA)
The ICA allows the inverter to be connected directly to a PC for
monitoring and adjustment. The ICA comes with a 50-foot cable. The
ICA can also be used up to 500 feet away, but additional cabling will be
needed and Xantrex does not provide longer cables at this time. It may
also be operated remotely with the addition of a modem at the inverter
site.

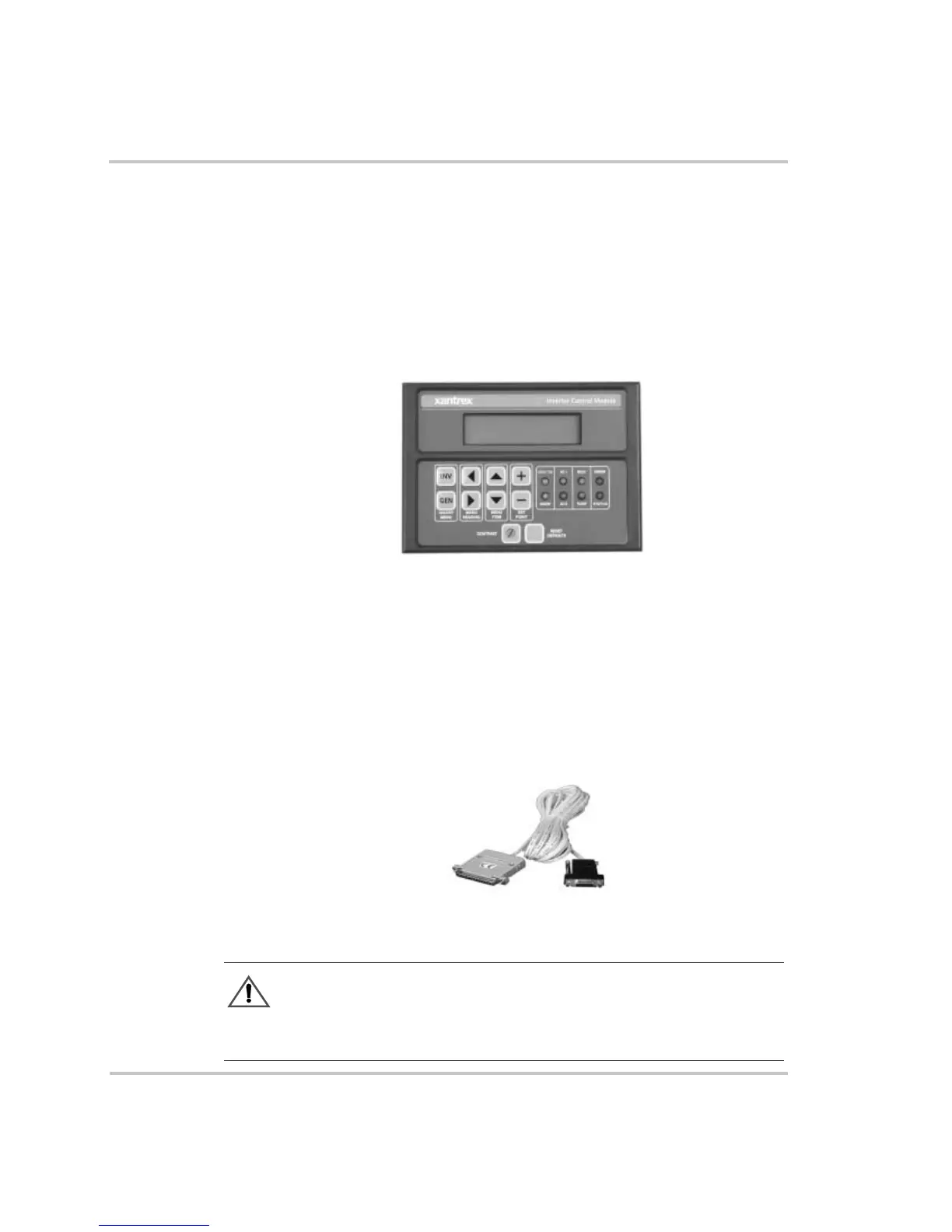

Figure 2-9
Inverter Control Module
Figure 2-10
Inverter Communications Adapter
CAUTION: Damage to PC
Do not connect a PC to the inverter when it is configured in a positive ground
system. Damage to the PC and the inverter may occur which is not covered under
warranty.
