Xantrex SW Plus 2524

Power Versus Efficiency
976-0043-01-02 A–9

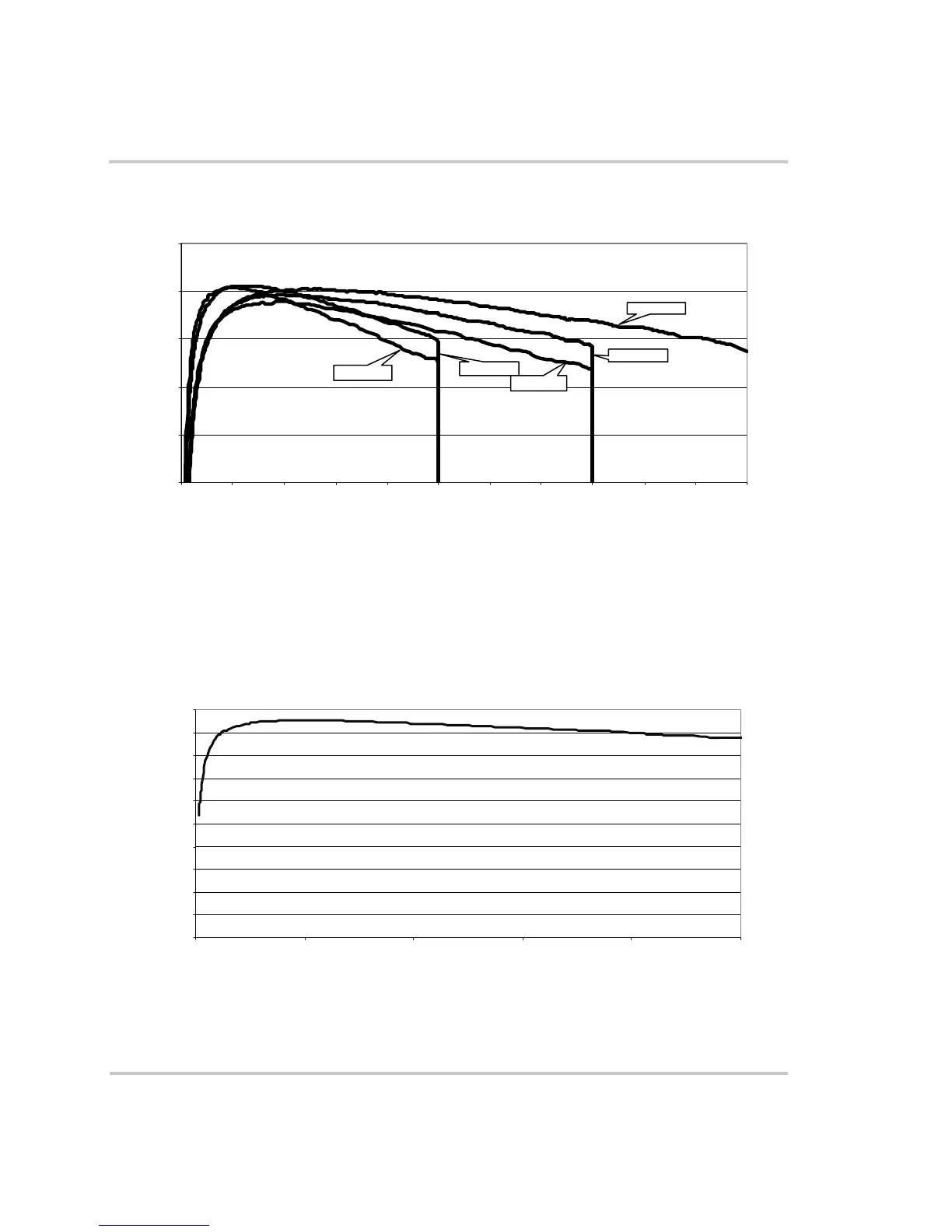

Figure A-4 Sine Wave Plus Efficiency Curve for the SW Plus 2524
Figure A-3 Power Versus Efficiency Curves for All Models
SW Plus Efficiency Curves
75%
80%
85%
90%
95%
100 %
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
Output Power in Watts
Efficiency
Me asur ement s made usi ng resist iv e load bank and Yokogawa WT2030 Digit al Power Met er or Yokogawa PZ4000 Power
Analyzer
SW Plus 2524
SW Plus 5548
SW Plus 2548
SW Plus 4024
SW Plus 4048
SW Plus 2524 Efficiency Curve
0%
10 %
20%
30%
40%
50%
60%
70%
80%
90%
10 0 %
0 500 1000 1500 2000 2500
Output Power in Watts
Efficiency
Measurements made using resistive load bank and Yokogawa WT 2030 Digital Power Meter
