AC Wiring
976-0043-01-02 3–31
WARNING: Shock Hazard
Auto-start generators can start automatically at any time.
Affix the warning label (supplied with the GSM) regarding auto-start generators
on or near the main AC distribution panel and near the generator. This will
remind the operator that AC power may still be supplied from the generator and
additional steps may be required to make the panel and the generator safe.

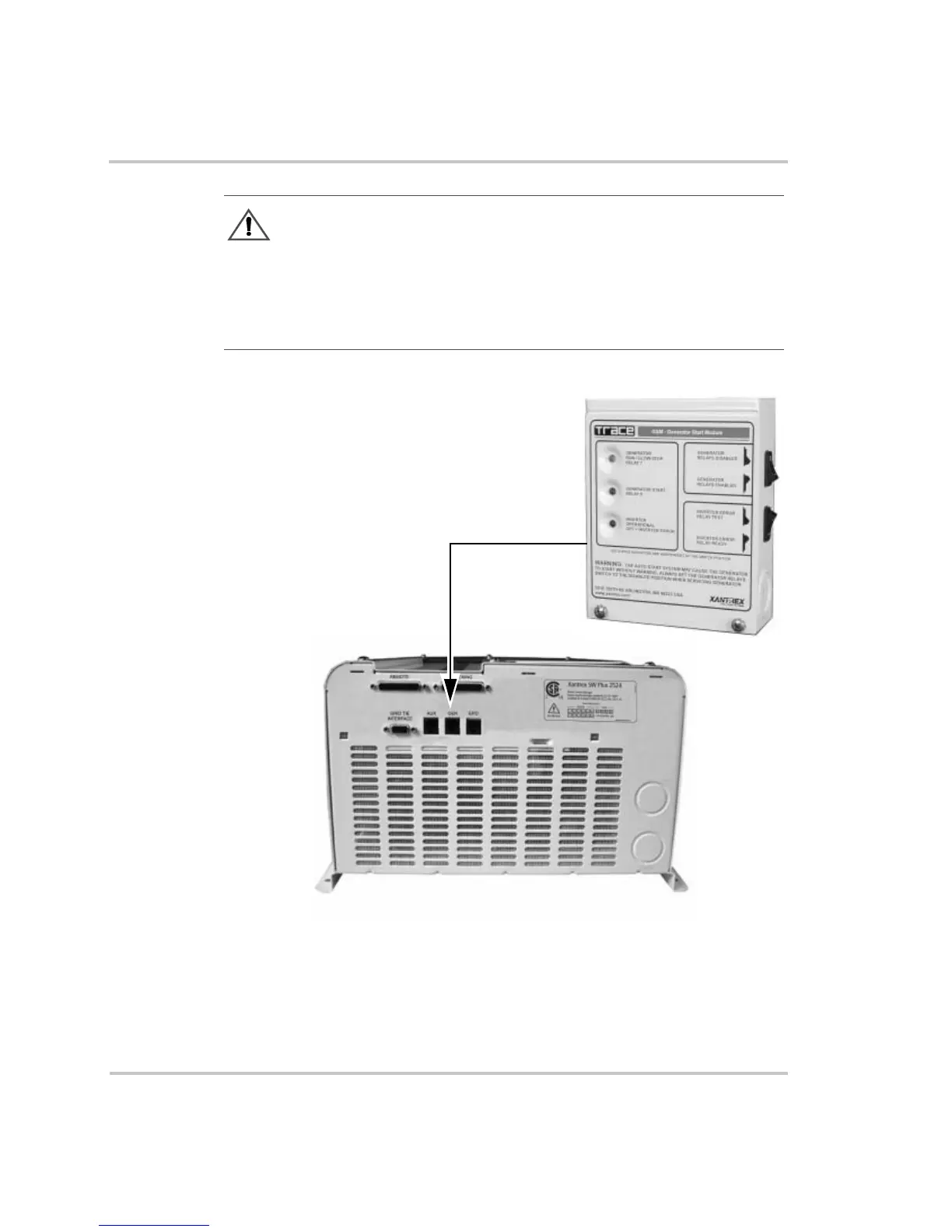

Figure 3-17
Connecting the GSM Communications Cable to the Sine
Wave Plus
The RJ11 Communications Cable
provided with the GSM connects to
the GEN Port on the inverter
See the GSM Installation Guide
for wiring instructions
AC end of the Inverter
