Installation
3–32 976-0043-01-02

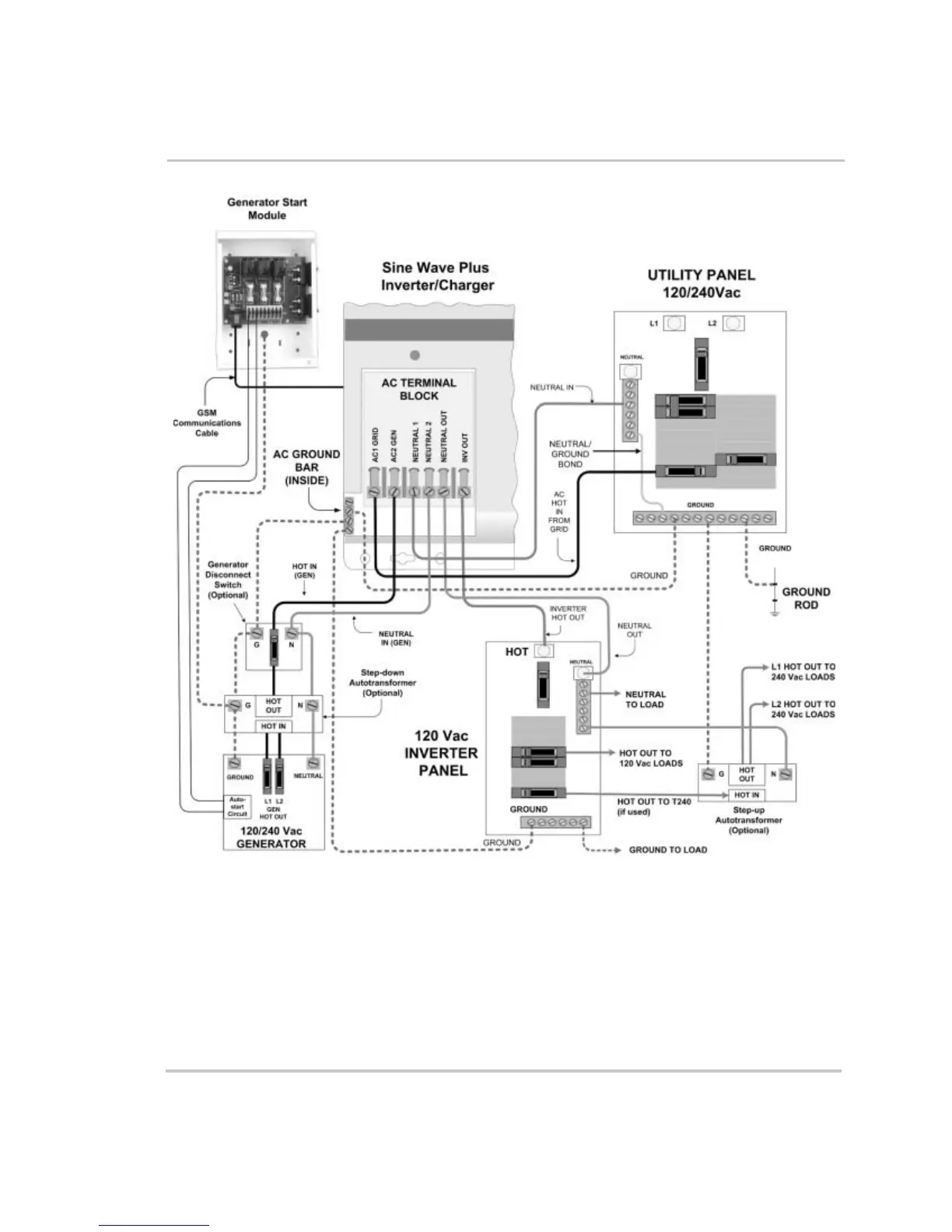

Figure 3-18
AC Input and Output Wiring to a Single Inverter with an Auto-Start AC Generator
