Additional/Optional Equipment Considerations
976-0043-01-02 2–31
PVGFP The PV Ground Fault Protection (PVGFP) is designed to minimize the
possibility of a fire resulting from ground faults in a PV array (in
accordance with NEC/CEC for rooftop-mounted PV systems on
dwellings). It is not designed or intended to prevent electrical shock or to
be used for PV DC overcurrent.

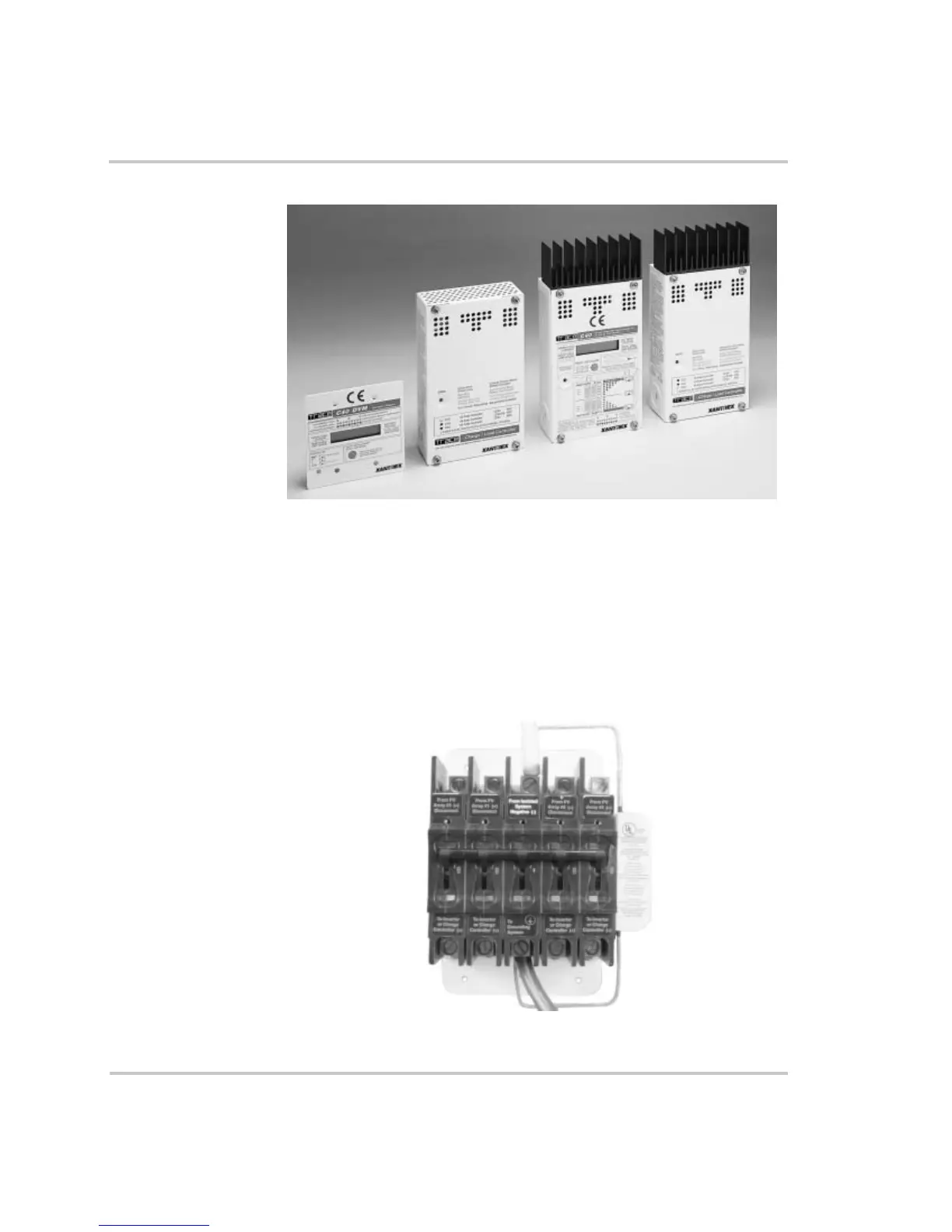

Figure 2-15
Xantrex C-Series Charge Controllers
Figure 2-16
PV Ground Fault Protection (PVGFP)
