Xantrex SW Plus 2524 User Manual

Inverter Specifications
A–10 976-0043-01-02

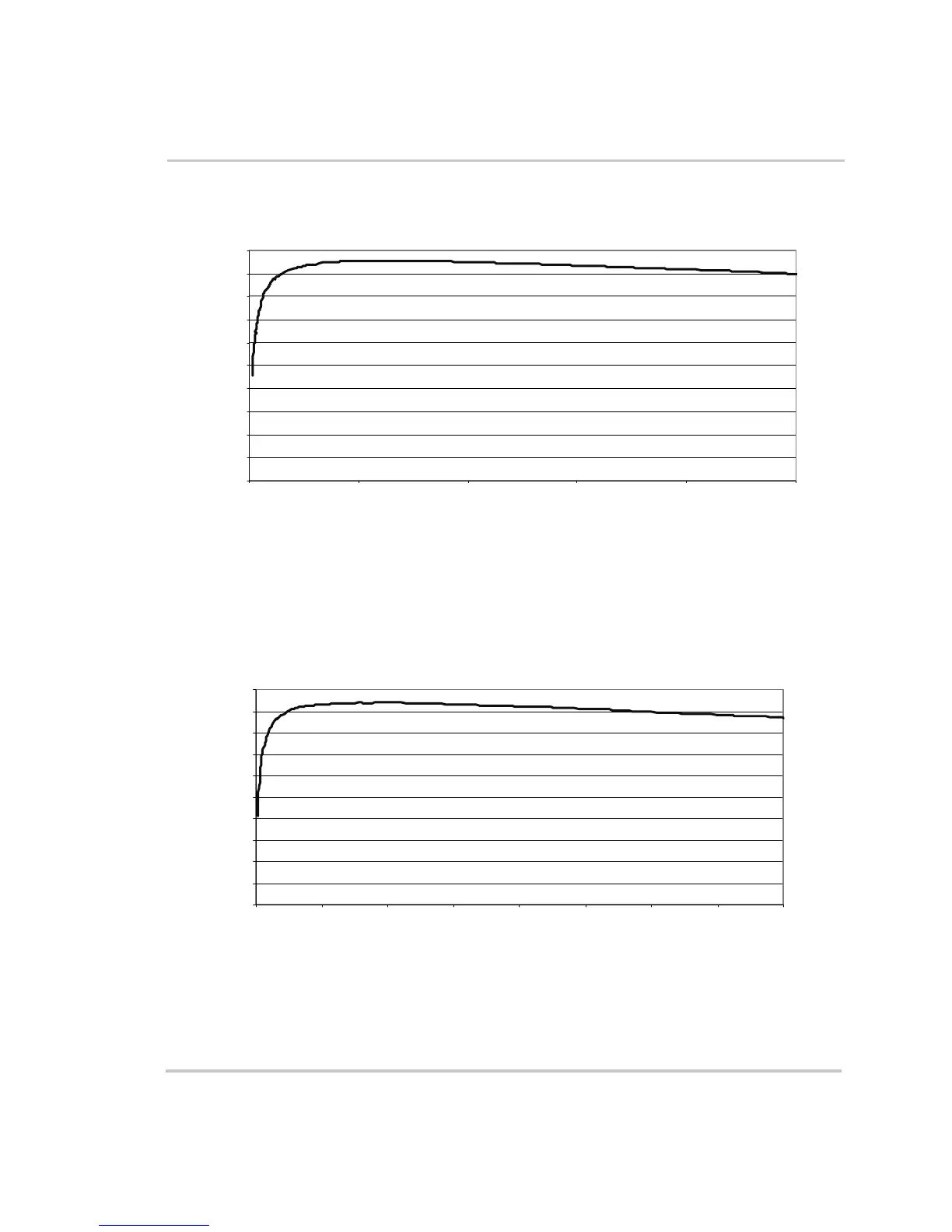

Figure A-5 Sine Wave Plus Efficiency Curve for the SW Plus 2548
Figure A-6 Sine Wave Plus Efficiency Curve for the SW Plus 4024
SW Plus 2548 Efficiency Curve
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0 500 1000 1500 2000 2500
Output Power in Watts
Efficiency
Measurements made using resistive load bank and Yokogawa WT 2030 Digital Power Meter
SW Plus 4024 Efficiency Curve
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
10 0 %
0 500 1000 1500 2000 2500 3000 3500 4000
Output Power in Watts
Efficiency
M easurements made using resist ive load bank and Yokogawa PZ4000 Power Analyzer

Xantrex SW Plus 2524 Specifications

General

Brand	Xantrex
Model	SW Plus 2524
Category	Inverter
Language	English
