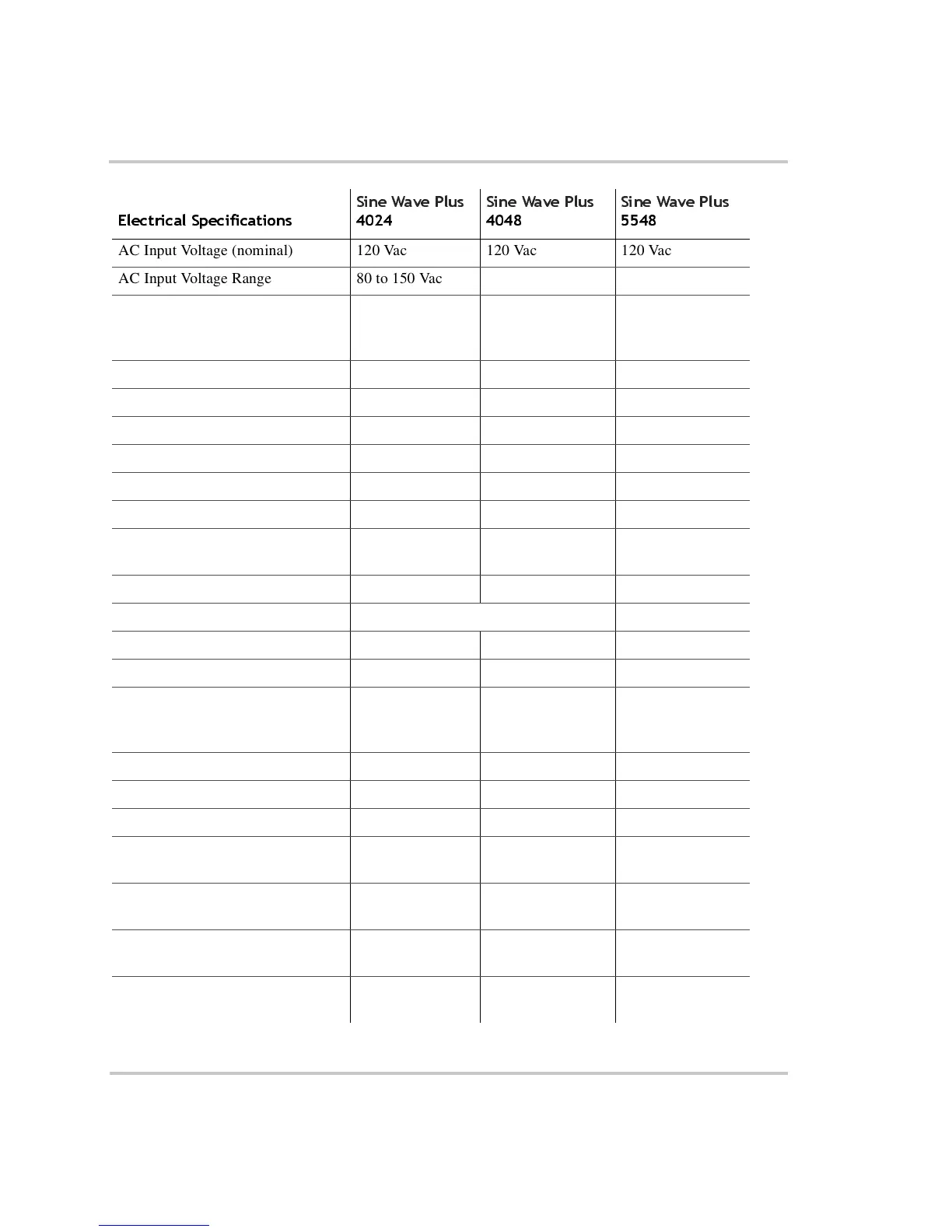

Electrical Specifications
976-0043-01-02 A–3
Elec tric al Spec ifi cat io ns
Sine Wave Plus
4024
Sine Wave Plus
4048
Sine Wave Plus
5548
AC Input Voltage (nominal) 120 Vac 120 Vac 120 Vac
AC Input Voltage Range 80 to 150 Vac 80 to 150 Vac 80 to150 Vac
AC Input Current 60 amps AC Pass-
through/ 30 amps
AC Charging
60 amps AC Pass-
through/ 30 amps
AC Charging
60 amps AC Pass-
through/ 45 amps
AC Charging
AC1 Input Frequency Range 55 to 65 Hz 55 to 65 Hz 55 to 65 Hz
AC2 Input Frequency Range 54 to 67 Hz 54 to 67 Hz 54 to 67 Hz
Continuous Power (@ 25°C) 4000 VA 4000 VA 5500 VA
Efficiency (Peak) in inverter mode 94% 95% 95%
Inverter Voltage (RMS) 120 Vac 120 Vac 120 Vac
Inverter Voltage Regulation ± 3% ± 3% ± 3%
Frequency (Nominal ±0.04%
Crystal Controlled - Invert Mode)
60 Hz 60 Hz 60 Hz
Continuous Output (@25° C) 33 amps rms 33 amps rms 46 amps rms
Surge Capability (@25° C)
5 second rating (resistive) 85 amps rms 95 amps rms 105 amps rms
Over current trip point 125 amps Peak 175 amps Peak 175 amps Peak
Inverter Voltage THD
(Total Harmonic Distortion)
(Resistive Load)
< 5% < 5% < 5%
Automatic Transfer Relay 60 amps 60 amps 60 amps
DC Input Voltage (Nominal) 25.2 Vdc 50.4 Vdc 50.4 Vdc
DC Input Voltage Range 22 to 32 Vdc 44 to 64 Vdc 44 to 64 Vdc
DC Current at Rated Power (Invert
Mode, Internal temp. stabilized)
190 amps DC 95 amps DC 135 amps DC
Idle Consumption (Invert Mode/No
Load)
< 16 watts < 20 watts < 20 watts
Search Mode Consumption
(Default setting)
< 2 watts < 2 watts < 2 watts
Continuous Charge Rate
(at 120 Vac input)
110 amps DC 60 amps DC 75 amps DC
