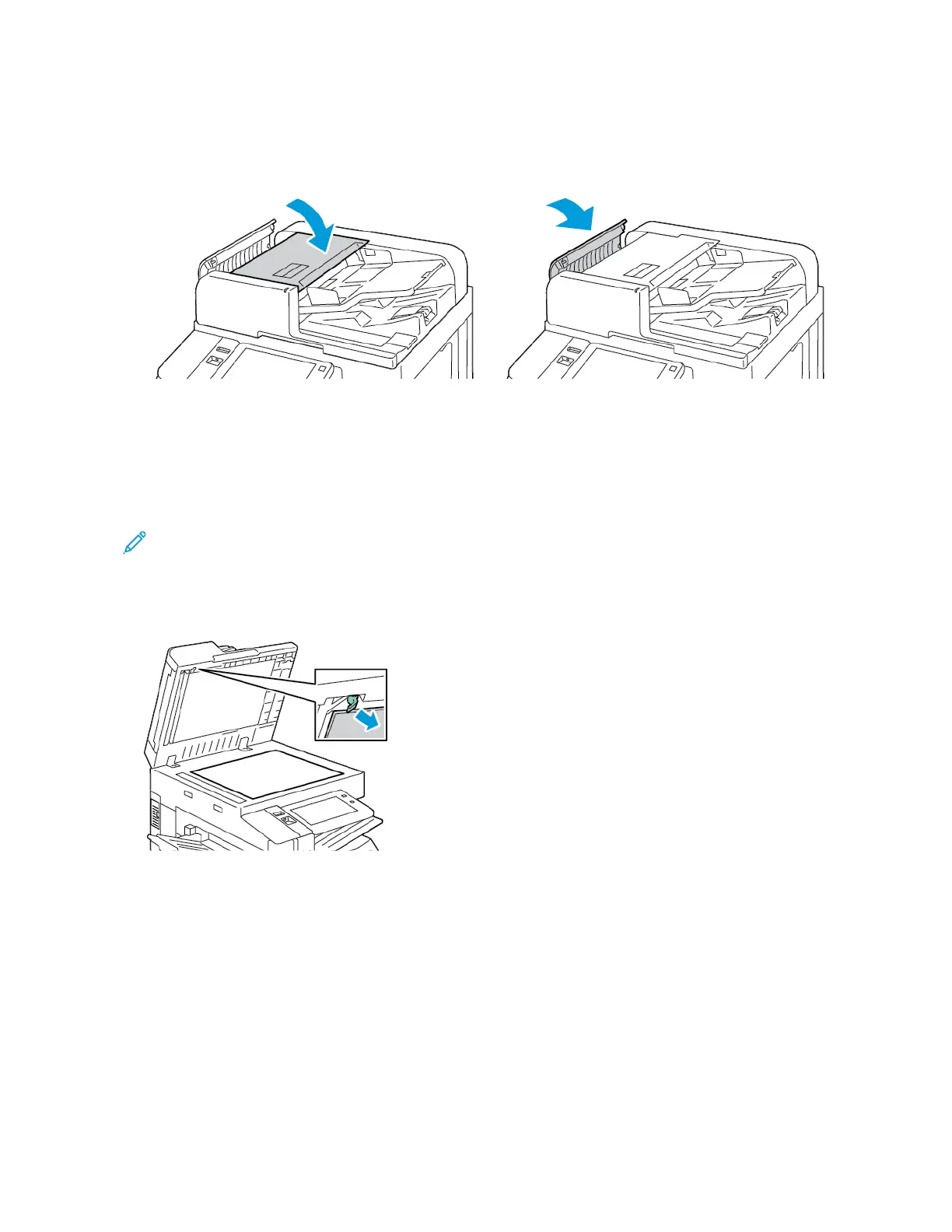

3. Close the document feeder top cover. If available, close the document feeder left cover.
Cleaning the Second-Side Scanning Lens Assembly
The second-side scanning lens assembly allows you to make 2-sided scans and copies with a single pass of the
original document. The assembly is on the left side of the document cover and includes a mirrored glass strip, a
metal strip, a white-plastic strip, and rollers.
Note: It is recommended that you clean all parts of the second-side scanning lens assembly regularly.
To clean the second-side scanning lens assembly:
1. To access the second-side scanning lens assembly, on the left side of the document cover, lower the lever.
238 Xerox
®
AltaLink
®
C8130/C8135/C8145/C8155/C8170 Series Color Multifunction Printer User Guide
Maintenance
