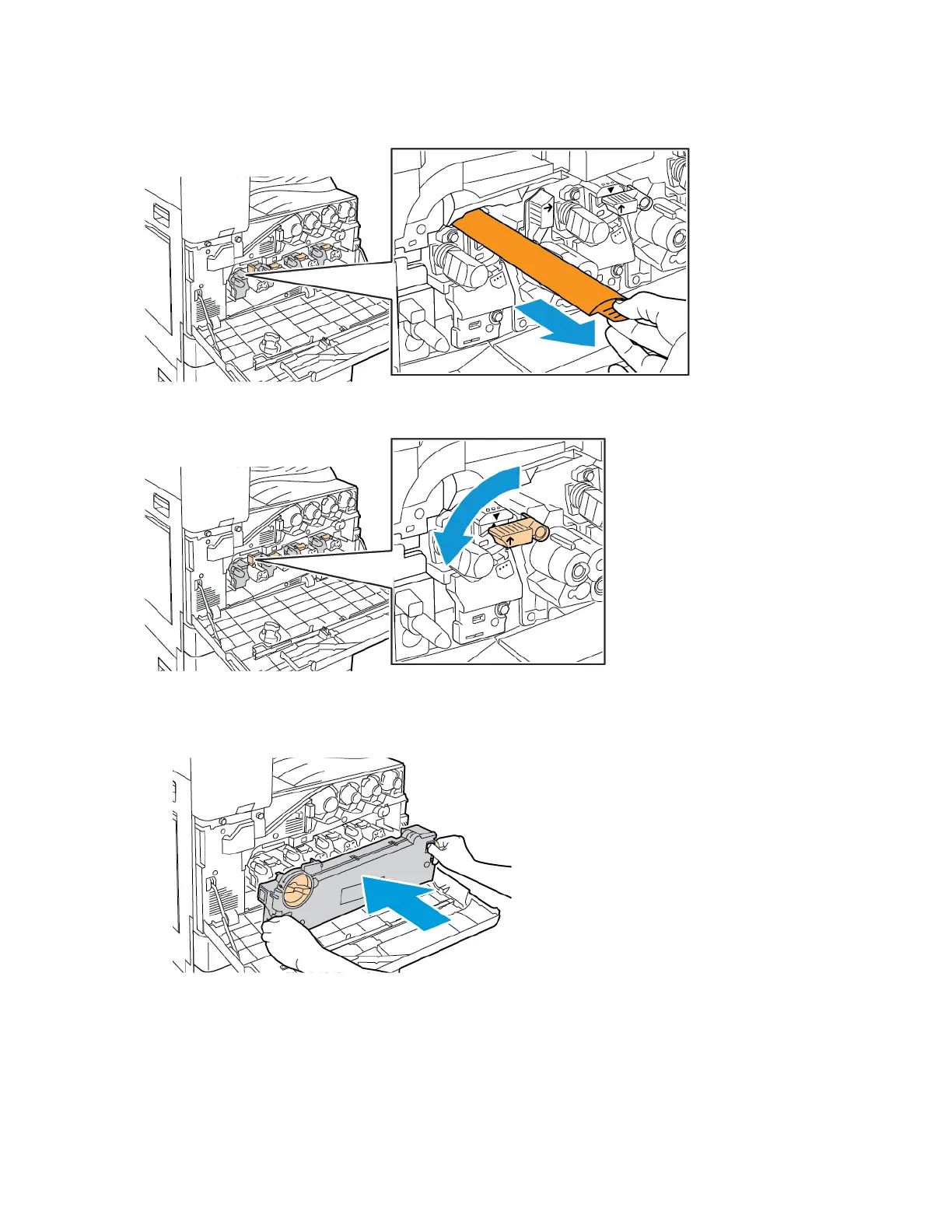

10. Carefully remove the protective shield.
11. To lock the drum cartridge, turn the orange lever to the left.
12. To insert the waste toner transport unit:
a. Position the waste toner transport unit as shown.
